Short Spring Plungers

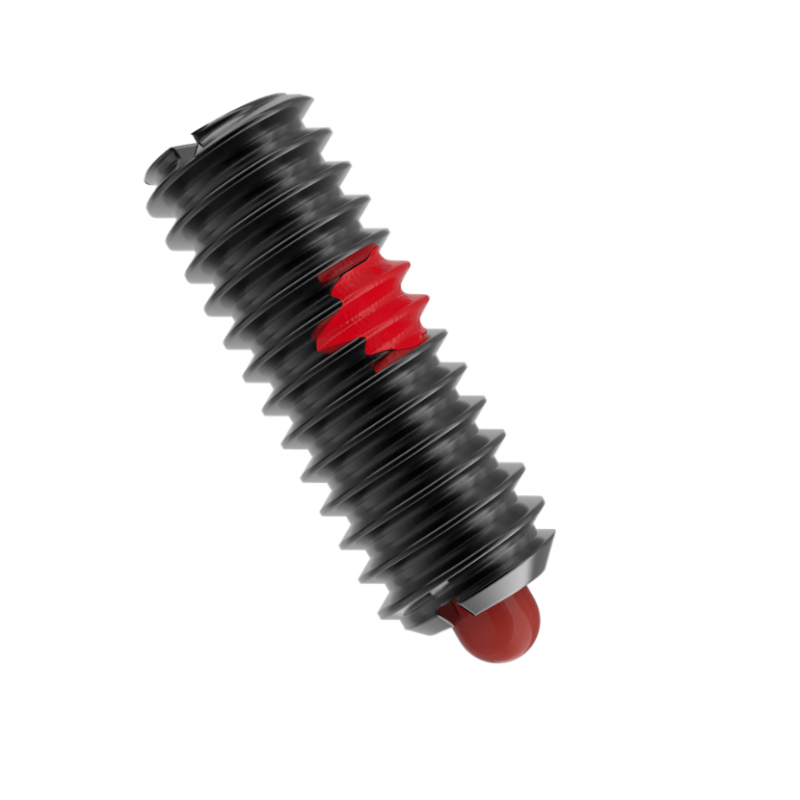

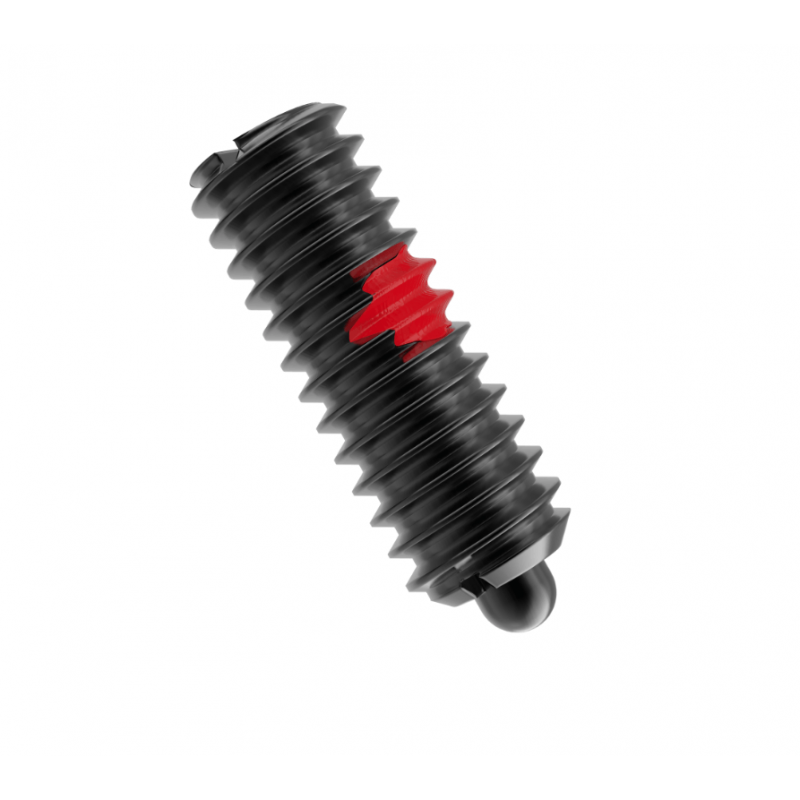

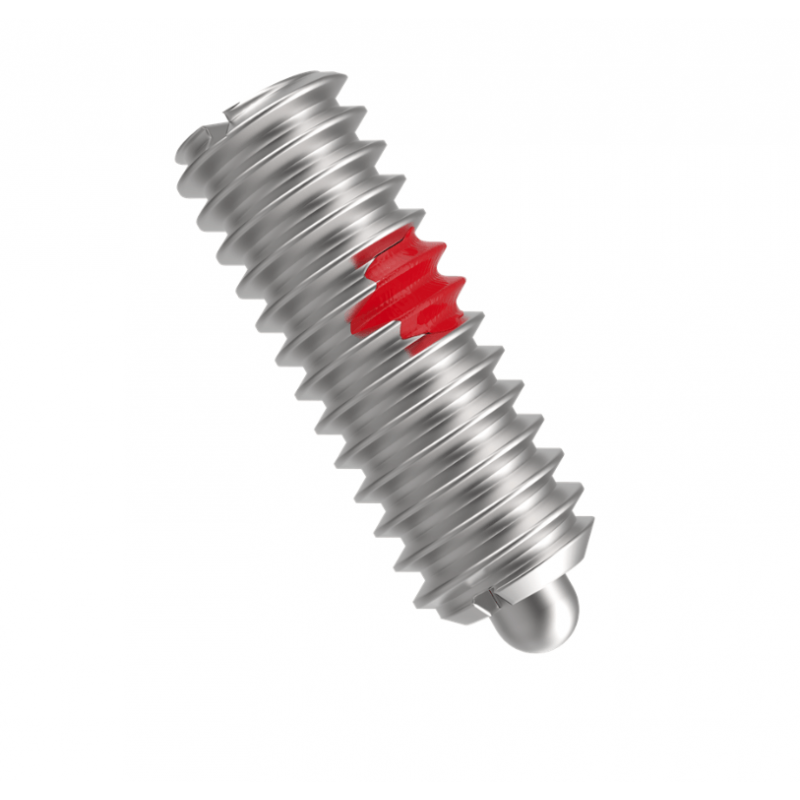

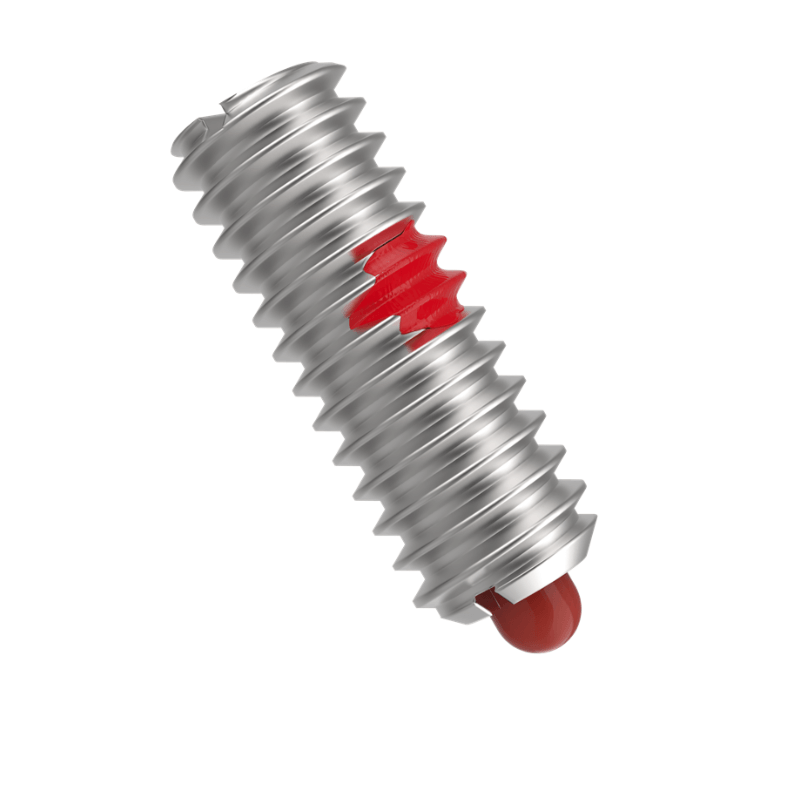

Carr Lane short spring plungers are self-contained plungers that have a shorter overall length and shorter stroke than the standard plungers. These are available in many different sixes and forced. Short plungers are available In both stainless steel and steel as well as both metric and imperial sizes. Various types of nose are available across Carr Lanes range of short spring plungers.
- Steel and stainless steel available
- Metric and Imperial sizes available
- Thread sizes ranging from #8-32 to 5/8-11
Products

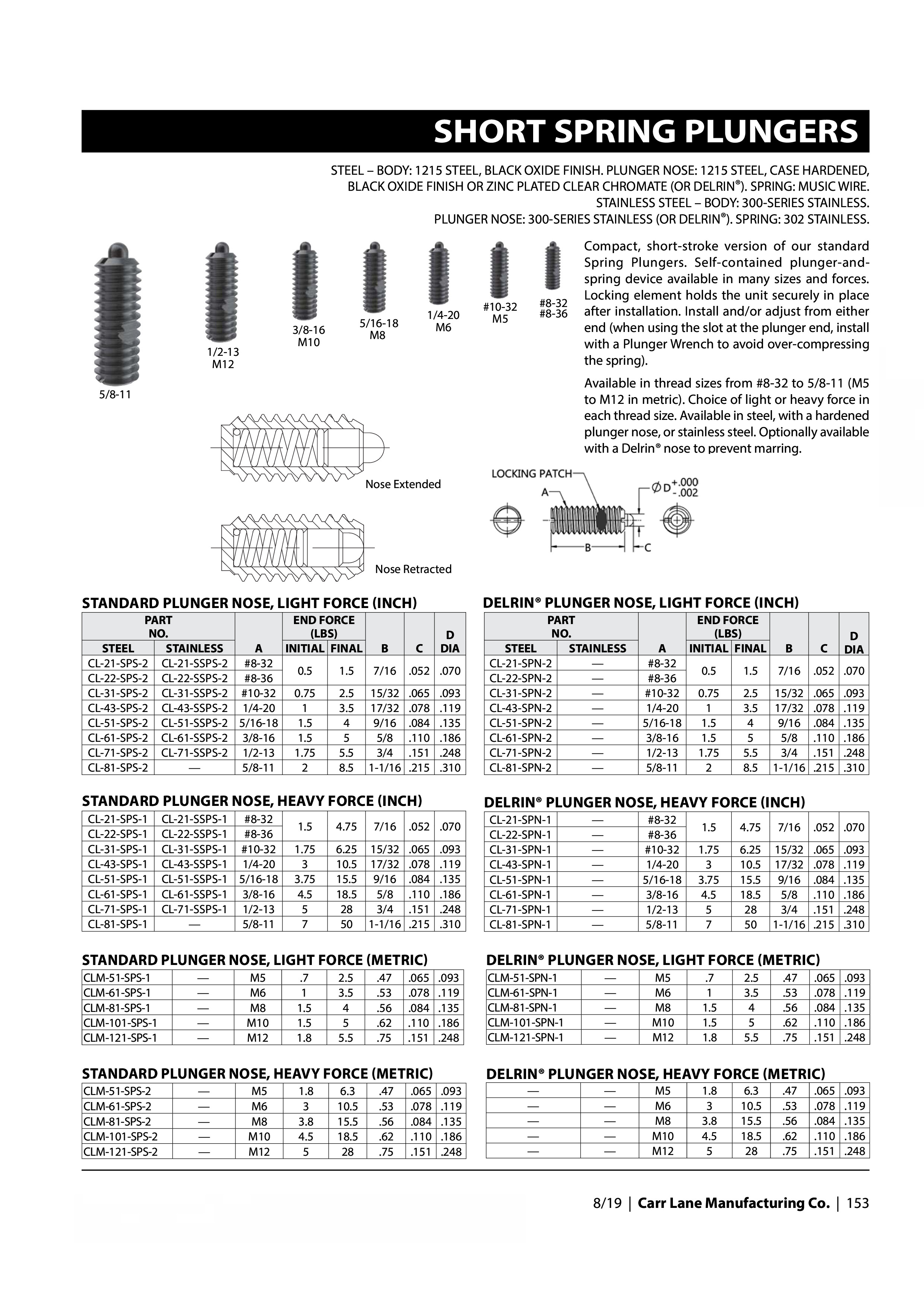

Downloads
Description
| Part Number | Material Number | Metric or Imperial | External Diameter | Force | Material | Plunger Type | Thread - B | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|---|
| CLM-81-SPN-1 | Metric | M8 | Light | Steel | Delrin Plunger Nose | 14.5mm | On Enquiry | ||
| CLM-101-SPS-1 | Metric | M10 | Light | Steel | Standard Plunger Nose | 16mm | On Enquiry | ||
| CLM-121-SPS-1 | Metric | M12 | Light | Steel | Standard Plunger Nose | 19mm | On Enquiry | ||
| CLM-51-SPN-1 | Metric | M5 | Light | Steel | Delrin Plunger Nose | 12mm | On Enquiry | ||
| CLM-61-SPN-1 | Metric | M6 | Light | Steel | Delrin Plunger Nose | 13.5mm | On Enquiry | ||
| CLM-51-SPS-1 | Metric | M5 | Light | Steel | Standard Plunger Nose | 12mm | On Enquiry | ||
| CLM-61-SPS-1 | Metric | M6 | Light | Steel | Standard Plunger Nose | 13.5mm | On Enquiry | ||
| CLM-81-SPN-2 | Metric | M8 | Heavy | Steel | Delrin Plunger Nose | 14.5mm | On Enquiry | ||
| CLM-101-SPS-2 | Metric | M10 | Heavy | Steel | Standard Plunger Nose | 16mm | On Enquiry | ||
| CLM-121-SPS-2 | Metric | M12 | Heavy | Steel | Standard Plunger Nose | 19mm | On Enquiry | ||
| CLM-121-SPN-1 | Metric | M12 | Light | Steel | Delrin Plunger Nose | 19mm | On Enquiry | ||
| CLM-51-SPS-2 | Metric | M5 | Heavy | Steel | Delrin Plunger Nose | 12mm | On Enquiry | ||
| CLM-61-SPN-2 | Metric | M6 | Heavy | Steel | Delrin Plunger Nose | 13.5mm | On Enquiry | ||
| CLM-81-SPS-1 | Metric | M8 | Light | Steel | Standard Plunger Nose | 14.5mm | On Enquiry | ||
| CLM-101-SPN-1 | Metric | M10 | Light | Steel | Delrin Plunger Nose | 16mm | On Enquiry | ||
| CLM-81-SPS-2 | Metric | M8 | Heavy | Steel | Standard Plunger Nose | 14.5mm | On Enquiry | ||
| CLM-101-SPN-2 | Metric | M10 | Heavy | Steel | Delrin Plunger Nose | 16mm | On Enquiry | ||
| CLM-121-SPN-2 | Metric | M12 | Heavy | Steel | Delrin Plunger Nose | 19mm | On Enquiry | ||
| CLM-51-SPN-2 | Metric | M5 | Heavy | Steel | Standard Plunger Nose | 12mm | On Enquiry | ||
| CLM-61-SPS-2 | Metric | M6 | Heavy | Steel | Standard Plunger Nose | 13.5mm | On Enquiry | ||
| CL-71-SSPS-2 | Imperial | 1/2-13 | Light | Stainless Steel | Standard Plunger Nose | 3/4 | On Enquiry | ||
| CL-81-SPS-1 | Imperial | 5/8-11 | Heavy | Steel | Standard Plunger Nose | 1-1/16 | On Enquiry | ||
| CL-61-SPS-2 | Imperial | 3/8-16 | Light | Steel | Standard Plunger Nose | 5/8 | On Enquiry | ||
| CL-71-SPS-2 | Imperial | 1/2-13 | Light | Steel | Standard Plunger Nose | 3/4 | On Enquiry | ||
| CL-51-SSPS-1 | Imperial | 5/16-18 | Heavy | Stainless Steel | Standard Plunger Nose | 9/16 | On Enquiry | ||
| CL-51-SPS-1 | Imperial | 5/16-18 | Heavy | Steel | Standard Plunger Nose | 9/16 | On Enquiry | ||
| CL-43-SPS-2 | Imperial | 1/4-20 | Light | Steel | Standard Plunger Nose | 17/32 | On Enquiry | ||
| CL-43-SSPN-2 | Imperial | 1/4-20 | Light | Stainless Steel | Delrin Plunger Nose | 17/32 | On Enquiry | ||
| CL-61-SSPS-2 | Imperial | 3/8-16 | Light | Stainless Steel | Standard Plunger Nose | 5/8 | On Enquiry | ||
| CL-21-SPN-2 | Imperial | #8-32 | Light | Steel | Delrin Plunger Nose | 7/16 | On Enquiry | ||
| CL-51-SSPS-2 | Imperial | 5/16-18 | Light | Stainless Steel | Standard Plunger Nose | 9/16 | On Enquiry | ||
| CL-51-SPS-2 | Imperial | 5/16-18 | Light | Steel | Standard Plunger Nose | 9/16 | On Enquiry | ||
| CL-21-SSPN-1 | Imperial | #8-32 | Heavy | Stainless Steel | Delrin Plunger Nose | 7/16 | On Enquiry | ||
| CL-22-SPS-1 | Imperial | #8-36 | Heavy | Steel | Standard Plunger Nose | 7/16 | On Enquiry | ||
| CL-31-SSPS-1 | Imperial | #10-32 | Heavy | Stainless Steel | Standard Plunger Nose | 15/32 | On Enquiry | ||
| CL-81-SPS-2 | Imperial | 5/8-11 | Light | Steel | Standard Plunger Nose | 1-1/16 | On Enquiry | ||
| CL-31-SPS-1 | Imperial | #10-32 | Heavy | Steel | Standard Plunger Nose | 15/32 | On Enquiry | ||
| CL-21-SSPN-2 | Imperial | #8-32 | Light | Stainless Steel | Delrin Plunger Nose | 7/16 | On Enquiry | ||
| CL-22-SPS-2 | Imperial | #8-36 | Light | Steel | Standard Plunger Nose | 7/16 | On Enquiry | ||
| CL-31-SSPS-2 | Imperial | #10-32 | Light | Stainless Steel | Standard Plunger Nose | 15/32 | On Enquiry | ||
| CL-31-SPS-2 | Imperial | #10-32 | Light | Steel | Standard Plunger Nose | 15/32 | On Enquiry | ||
| CL-43-SPN-1 | Imperial | 1/4-20 | Heavy | Steel | Delrin Plunger Nose | 17/32 | On Enquiry | ||
| CL-43-SSPS-1 | Imperial | 1/4-20 | Heavy | Stainless Steel | Standard Plunger Nose | 17/32 | On Enquiry | ||
| Cl-21-SPN-1 | Imperial | #8-32 | Heavy | Steel | Delrin Plunger Nose | 7/16 | On Enquiry | ||
| CL-61-SSPN-1 | Imperial | 3/8-16 | Heavy | Stainless Steel | Delrin Plunger Nose | 5/8 | On Enquiry | ||
| CL-61-SPN-1 | Imperial | 3/8-16 | Heavy | Steel | Delrin Plunger Nose | 5/8 | On Enquiry | ||
| CL-71-SPN-1 | Imperial | 1/2-13 | Heavy | Steel | Delrin Plunger Nose | 3/4 | On Enquiry | ||
| CL-43-SPN-2 | Imperial | 1/4-20 | Light | Steel | Delrin Plunger Nose | 17/32 | On Enquiry | ||
| CL-43-SSPS-2 | Imperial | 1/4-20 | Light | Stainless Steel | Standard Plunger Nose | 17/32 | On Enquiry | ||
| CL-51-SPN-1 | Imperial | 5/16-18 | Heavy | Steel | Delrin Plunger Nose | 9/16 | On Enquiry | ||
| CL-61-SSPN-2 | Imperial | 3/8-16 | Light | Stainless Steel | Delrin Plunger Nose | 5/8 | On Enquiry | ||
| CL-21-SPS-2 | Imperial | #8-32 | Light | Steel | Standard Plunger Nose | 7/16 | On Enquiry | ||
| CL-61-SPN-2 | Imperial | 3/8-16 | Light | Steel | Delrin Plunger Nose | 5/8 | On Enquiry | ||
| CL-81-SPN-1 | Imperial | 5/8-11 | Heavy | Steel | Delrin Plunger Nose | 1-1/16 | On Enquiry | ||
| CL-71-SPN-2 | Imperial | 1/2-13 | Light | Steel | Delrin Plunger Nose | 3/4 | On Enquiry | ||
| CL-22-SPN-1 | Imperial | #8-36 | Heavy | Steel | Delrin Plunger Nose | 7/16 | On Enquiry | ||
| CL-22-SSPS-1 | Imperial | #8-36 | Heavy | Stainless Steel | Standard Plunger Nose | 7/16 | On Enquiry | ||
| CL-31-SPN-1 | Imperial | #10-32 | Heavy | Steel | Delrin Plunger Nose | 15/32 | On Enquiry | ||
| CL-81-SPN-2 | Imperial | 5/8-11 | Light | Steel | Delrin Plunger Nose | 1-1/16 | On Enquiry | ||
| CL-51-SPN-2 | Imperial | 5/16-18 | Light | Steel | Delrin Plunger Nose | 9/16 | On Enquiry | ||
| CL-21-SSPS-1 | Imperial | #8-32 | Heavy | Stainless Steel | Standard Plunger Nose | 7/16 | On Enquiry | ||
| CL-31-SPN-2 | Imperial | #10-32 | Light | Steel | Delrin Plunger Nose | 15/32 | On Enquiry | ||
| CL-21-SSPS-2 | Imperial | #8-32 | Light | Stainless Steel | Standard Plunger Nose | 7/16 | On Enquiry | ||
| CL-22-SPN-2 | Imperial | #8-36 | Light | Steel | Delrin Plunger Nose | 7/16 | On Enquiry | ||
| CL-22-SSPS-2 | Imperial | #8-36 | Light | Stainless Steel | Standard Plunger Nose | 7/16 | On Enquiry | ||
| CL-61-SSPS-1 | Imperial | 3/8-16 | Heavy | Stainless Steel | Standard Plunger Nose | 5/8 | On Enquiry | ||
| CL-21-SPS-1 | Imperial | #8-32 | Heavy | Steel | Standard Plunger Nose | 7/16 | On Enquiry | ||
| CL-71-SSPS-1 | Imperial | 1/2-13 | Heavy | Stainless Steel | Standard Plunger Nose | 3/4 | On Enquiry | ||
| CL-61-SPS-1 | Imperial | 3/8-16 | Heavy | Steel | Standard Plunger Nose | 5/8 | On Enquiry | ||
| CL-71-SPS-1 | Imperial | 1/2-13 | Heavy | Steel | Standard Plunger Nose | 3/4 | On Enquiry | ||
| CL-43-SPS-1 | Imperial | 1/4-20 | Heavy | Steel | Standard Plunger Nose | 17/32 | On Enquiry | ||
| CL-43-SSPN-1 | Imperial | 1/4-20 | Heavy | Stainless Steel | Delrin Plunger Nose | 17/32 | On Enquiry |
Carr Lane short spring plungers are self-contained plungers that have a shorter overall length and shorter stroke than the standard plungers. These are available in many different sixes and forced. Short plungers are available In both stainless steel and steel as well as both metric and imperial sizes. Various types of nose are available across Carr Lanes range of short spring plungers.
- Steel and Stainless steel Available
- Metric and Imperial sizes available
- Thread sizes ranging from #8-32 to 5/8-11
