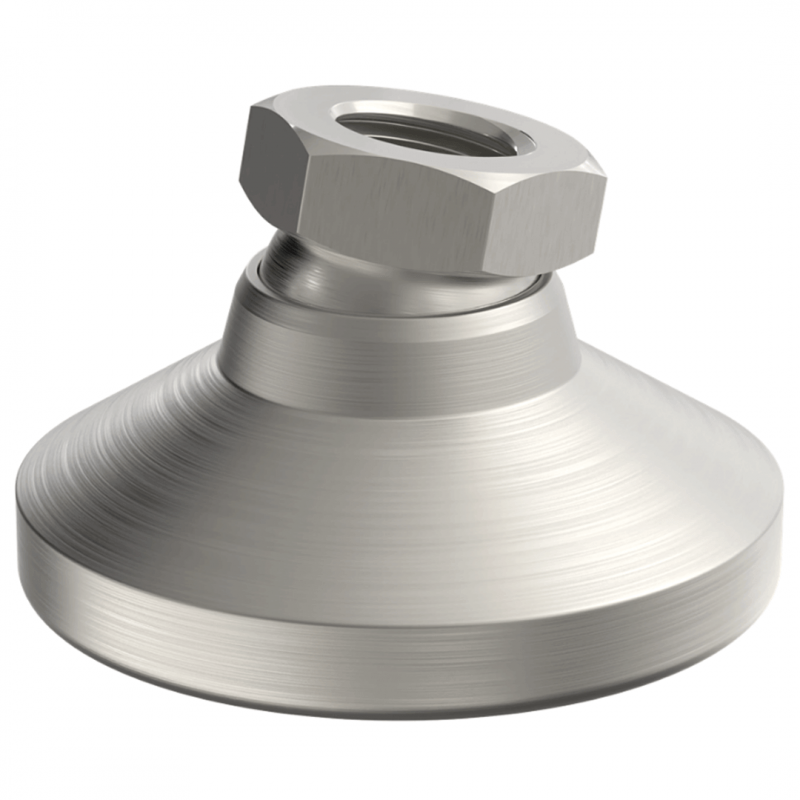

Carr Lane Levelling Feet

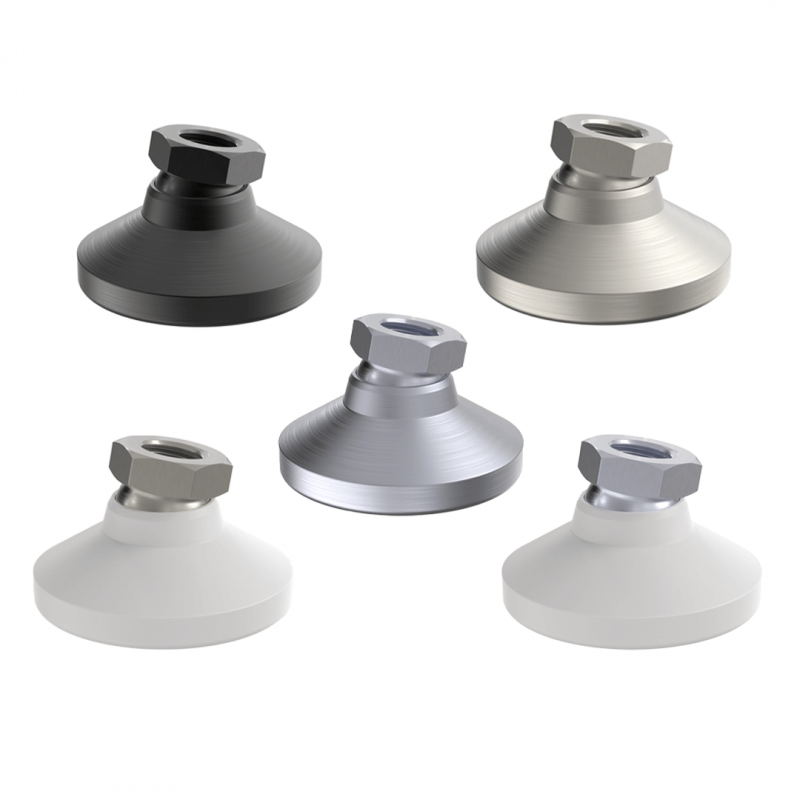

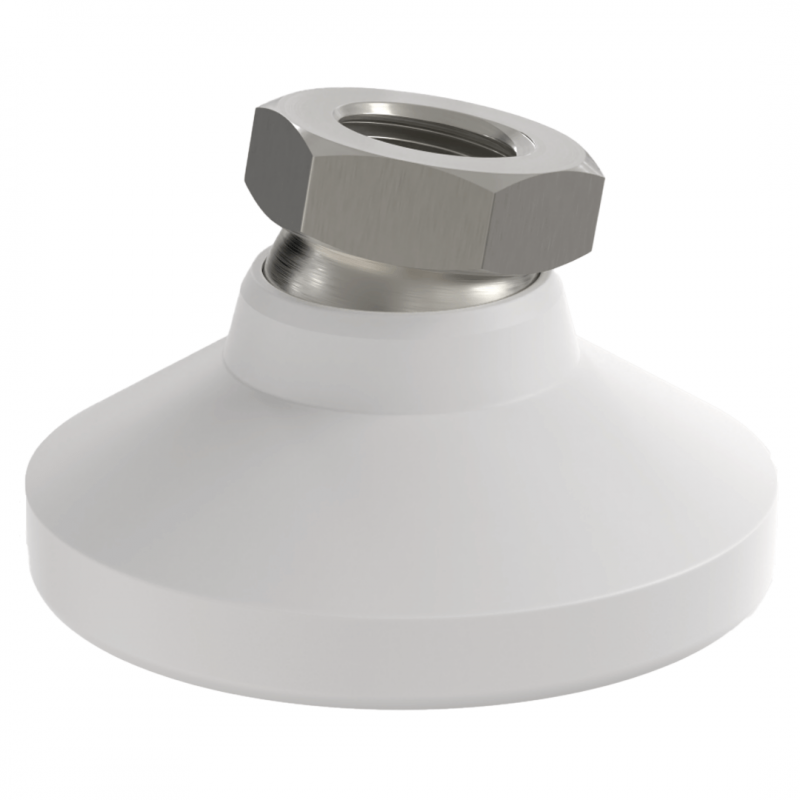

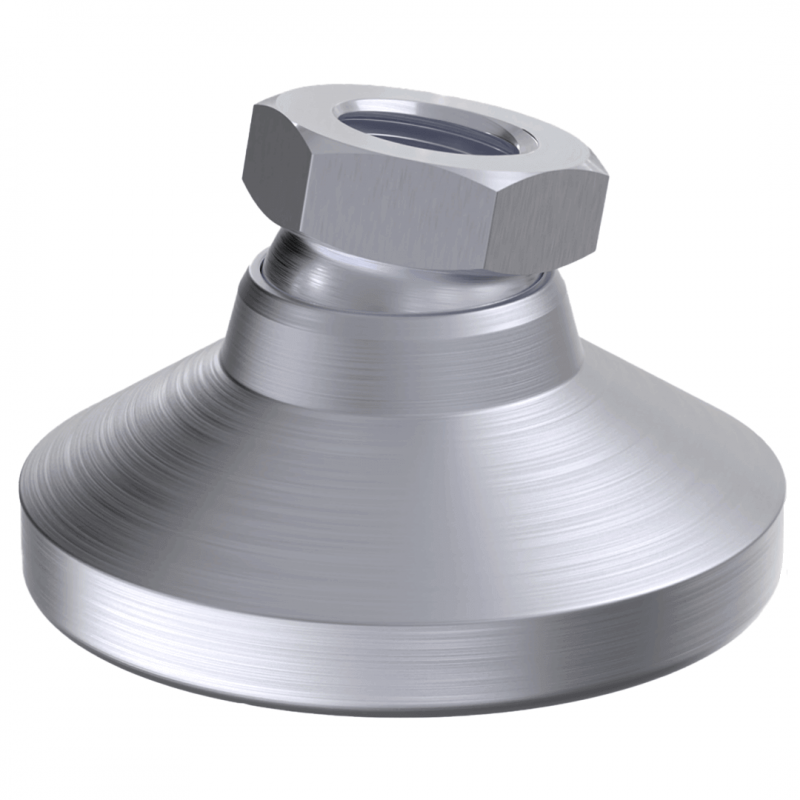

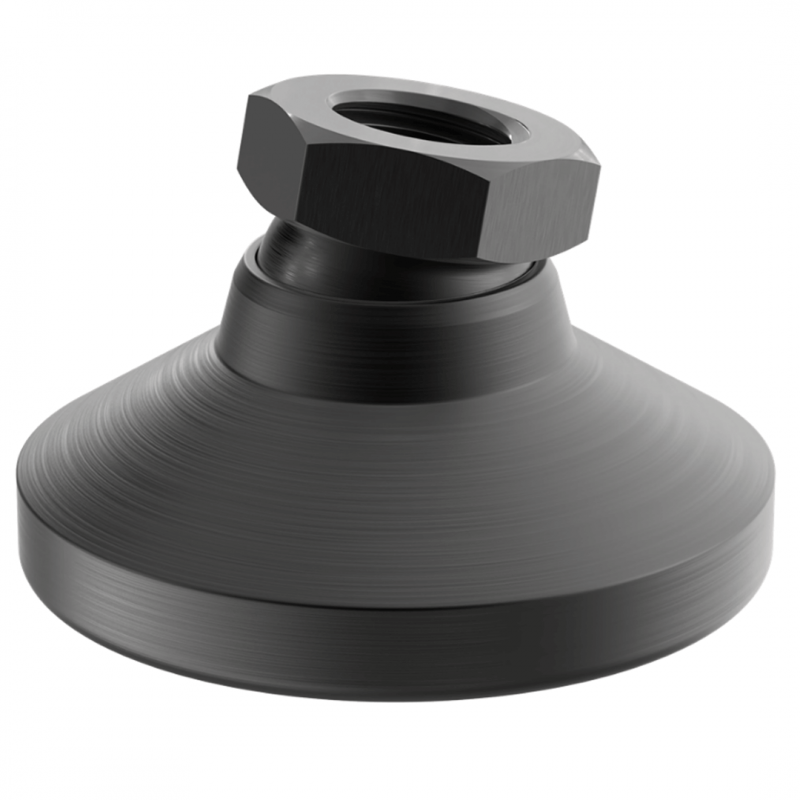

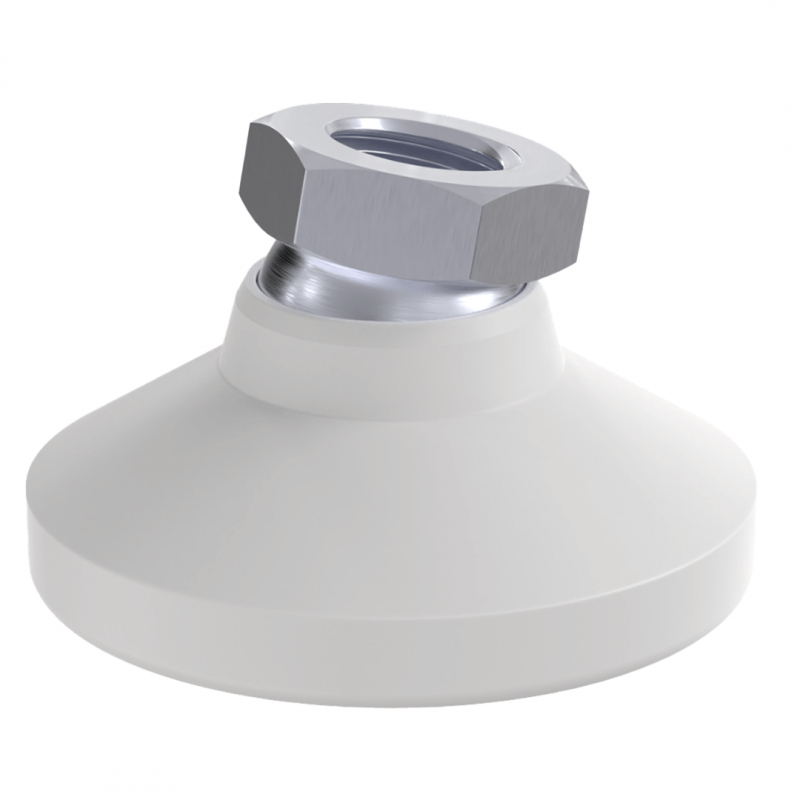

Carr Lane levelling feet are manufactured with a heavy-duty, large diameter pad. These are available in five different material and finish options. These materials include stainless steel, steel zinc plated and steel with a black oxide finish. The steel zinc plated, and stainless-steel variants are also available with a Delrin pad. Levelling feet are available in sizes ranging from #10-32 to 12-8 and M6 – M20 in metric.
- Available in Metric and Imperial
- Various material options
- Sizes from #10-32 to 12-8 (M6 – M20 in metric)
Products
Downloads
Description
| Part Number | Material Number | A Diameter | Metric or Imperial | Material | Thread - B | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CL-3-LF-BO | #10-32 | Imperial | Steel Black Oxide Finish | 3/4 | On Enquiry | ||
| CL-3-LF | #10-32 | Imperial | Steel Zinc Plated | 3/4 | On Enquiry | ||
| CL-3-LFN-S | #10-32 | Imperial | Stainless steel with Delrin Pad | 3/4 | On Enquiry | ||
| CL-3-LFN | #10-32 | Imperial | Steel Zinc Plated with Delrin Pad | 3/4 | On Enquiry | ||
| CL-3-LF-S | #10-32 | Imperial | Stainless Steel | 3/4 | On Enquiry | ||
| CL-16-LF-S | 1"-8 | Imperial | Stainless Steel | 1-1/2 | On Enquiry | ||
| CL-16-LF-BO | 1"-8 | Imperial | Steel Black Oxide Finish | 1-1/2 | On Enquiry | ||
| CL-16-LF | 1"-8 | Imperial | Steel Zinc Plated | 1-1/2 | On Enquiry | ||
| CL-12-LF | 3/4-10 | Imperial | Steel Zinc Plated | 1-1/8 | On Enquiry | ||
| CL-12-LF-BO | 3/4-10 | Imperial | Steel Black Oxide Finish | 1-1/8 | On Enquiry | ||
| CL-12-LFN-S | 3/4-10 | Imperial | Stainless steel with Delrin Pad | 1-1/8 | On Enquiry | ||
| CL-12-LF-S | 3/4-10 | Imperial | Stainless Steel | 1-1/8 | On Enquiry | ||
| CL-12-LFN | 3/4-10 | Imperial | Steel Zinc Plated with Delrin Pad | 1-1/8 | On Enquiry | ||
| CL-10-LF-S | 5/8-11 | Imperial | Stainless Steel | 15/16 | On Enquiry | ||
| CL-10-LFN | 5/8-11 | Imperial | Steel Zinc Plated with Delrin Pad | 15/16 | On Enquiry | ||
| CL-10-LF-BO | 5/8-11 | Imperial | Steel Black Oxide Finish | 15/16 | On Enquiry | ||
| CL-10-LF | 5/8-11 | Imperial | Steel Zinc Plated | 15/16 | On Enquiry | ||
| CL-10-LFN-S | 5/8-11 | Imperial | Stainless steel with Delrin Pad | 15/16 | On Enquiry | ||
| CL-8-LF | 1/2-13 | Imperial | Steel Zinc Plated | 3/4 | On Enquiry | ||
| CL-8-LFN | 1/2-13 | Imperial | Steel Zinc Plated with Delrin Pad | 3/4 | On Enquiry | ||
| CL-8-LFN-S | 1/2-13 | Imperial | Stainless steel with Delrin Pad | 3/4 | On Enquiry | ||
| CL-8-LF-BO | 1/2-13 | Imperial | Steel Black Oxide Finish | 3/4 | On Enquiry | ||
| CL-8-LF | 1/2-13 | Imperial | Stainless Steel | 3/4 | On Enquiry | ||
| CL-5-LF | 5/16-18 | Imperial | Steel Zinc Plated | 9/16 | On Enquiry | ||
| CL-5-LF-BO | 5/16-18 | Imperial | Steel Black Oxide Finish | 9/16 | On Enquiry | ||
| CL-5-LFN-S | 5/16-18 | Imperial | Stainless steel with Delrin Pad | 9/16 | On Enquiry | ||
| CL-5-LFN | 5/16-18 | Imperial | Steel Zinc Plated with Delrin Pad | 9/16 | On Enquiry | ||
| CL-5-LF-S | 5/16-18 | Imperial | Stainless Steel | 9/16 | On Enquiry | ||
| CL-4-LFN-S | 1/4-20 | Imperial | Stainless steel with Delrin Pad | 1 | On Enquiry | ||
| CL-4-LFN | 1/4-20 | Imperial | Steel Zinc Plated with Delrin Pad | 1 | On Enquiry | ||
| CL-4-LF-S | 1/4-20 | Imperial | Stainless Steel | 1 | On Enquiry | ||
| CL-4-LF-BO | 1/4-20 | Imperial | Steel Black Oxide Finish | 1 | On Enquiry | ||
| CL-4-LF | 1/4-20 | Imperial | Steel Zinc Plated | 1 | On Enquiry | ||
| CL-6-LFN | 03/8-16 | Imperial | Steel Zinc Plated with Delrin Pad | 5/8 | On Enquiry | ||
| CL-6-LFN-S | 03/8-16 | Imperial | Stainless steel with Delrin Pad | 5/8 | On Enquiry | ||
| CL-6-LF-S | 03/8-16 | Imperial | Stainless Steel | 5/8 | On Enquiry | ||
| CL-6-LF-BO | 03/8-16 | Imperial | Steel Black Oxide Finish | 5/8 | On Enquiry | ||
| CL-6-LF | 03/8-16 | Imperial | Steel Zinc Plated | 5/8 | On Enquiry | ||
| CLM-6-LF | M6 | Metric | Steel Zinc Plated | 13mm | On Enquiry | ||
| CLM-6-LF-BO | M6 | Metric | Steel Black Oxide Finish | 13mm | On Enquiry | ||
| CLM-6-LF-S | M6 | Metric | Stainless Steel | 13mm | On Enquiry | ||
| CLM-6-LFN | M6 | Metric | Steel Zinc Plated with Delrin Pad | 13mm | On Enquiry | ||
| CLM-6-LFN-S | M6 | Metric | Stainless steel with Delrin Pad | 13mm | On Enquiry | ||
| CLM-8-LF-S | M8 | Metric | Stainless Steel | 15mm | On Enquiry | ||
| CLM-8-LFN | M8 | Metric | Steel Zinc Plated with Delrin Pad | 15mm | On Enquiry | ||
| CLM-8-LFN-S | M8 | Metric | Stainless steel with Delrin Pad | 15mm | On Enquiry | ||
| CLM-8-LF | M8 | Metric | Steel Zinc Plated | 15mm | On Enquiry | ||
| CLM-8-LF-BO | M8 | Metric | Steel Black Oxide Finish | 15mm | On Enquiry | ||
| CLM-10-LF | M10 | Metric | Steel Zinc Plated | 17mm | On Enquiry | ||
| CLM-10-LF-BO | M10 | Metric | Steel Black Oxide Finish | 17mm | On Enquiry | ||
| CLM-10-LF-S | M10 | Metric | Stainless Steel | 17mm | On Enquiry | ||
| CLM-10-LFN | M10 | Metric | Steel Zinc Plated with Delrin Pad | 17mm | On Enquiry | ||
| CLM-10-LFN-S | M10 | Metric | Stainless steel with Delrin Pad | 17mm | On Enquiry | ||
| CLM-12-LF-S | M12 | Metric | Stainless Steel | 19mm | On Enquiry | ||
| CLM-12-LFN | M12 | Metric | Steel Zinc Plated with Delrin Pad | 19mm | On Enquiry | ||
| CLM-12-LFN-S | M12 | Metric | Stainless steel with Delrin Pad | 19mm | On Enquiry | ||
| CLM-12-LF | M12 | Metric | Steel Zinc Plated | 19mm | On Enquiry | ||
| CLM-12-LF-BO | M12 | Metric | Steel Black Oxide Finish | 19mm | On Enquiry | ||
| CLM-16-LF | M16 | Metric | Steel Zinc Plated | 24mm | On Enquiry | ||
| CLM-16-LF-BO | M16 | Metric | Steel Black Oxide Finish | 24mm | On Enquiry | ||
| CLM-16-LF-S | M16 | Metric | Stainless Steel | 24mm | On Enquiry | ||
| CLM-16-LFN | M16 | Metric | Steel Zinc Plated with Delrin Pad | 24mm | On Enquiry | ||
| CLM-16-LFN-S | M16 | Metric | Stainless steel with Delrin Pad | 24mm | On Enquiry | ||
| CLM-20-LFN | M20 | Metric | Steel Zinc Plated with Delrin Pad | 30mm | On Enquiry | ||
| CLM-20-LFN-S | M20 | Metric | Stainless steel with Delrin Pad | 30mm | On Enquiry | ||
| CLM-20-LF-S | M20 | Metric | Stainless Steel | 30mm | On Enquiry | ||
| CLM-20-LF | M20 | Metric | Steel Zinc Plated | 30mm | On Enquiry | ||
| CLM-20-LF-BO | M20 | Metric | Steel Black Oxide Finish | 30mm | On Enquiry |
Carr Lane levelling feet are manufactured with a heavy-duty, large diameter pad. These are available in five different material and finish options. These materials include stainless steel, steel zinc plated and steel with a black oxide finish. The steel zinc plated, and stainless-steel variants are also available with a Delrin pad. Levelling feet are available in sizes ranging from #10-32 to 12-8 and M6 – M20 in metric.
- Available in Metric and Imperial
- Various material options
- Sizes from #10-32 to 12-8 (M6 – M20 in metric)
