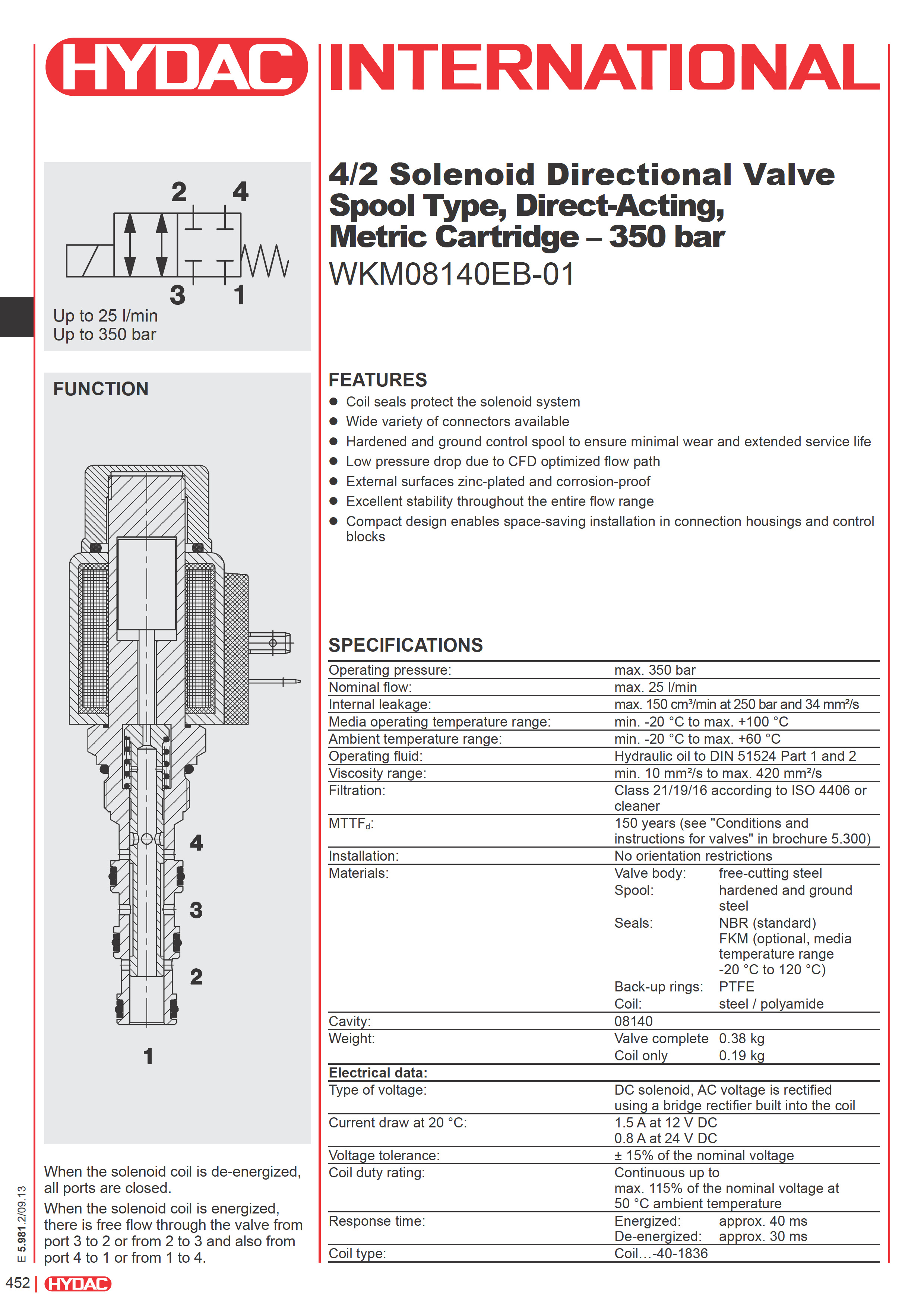

4/2 Solenoid Directional Valve Spool Type, Direct-Acting, Metric Cartridge – 350 bar

This HYDAC R-type solenoid valve is a compact, high-pressure 4/2 directional valve that enables bidirectional flow between ports when energized, and securely closes all ports when de-energized. Designed for up to 350 bar and 25 l/min, it offers reliable performance in space-constrained hydraulic systems.

Key Features:

  • Operating pressure: Up to 350 bar
  • Nominal flow rate: Max. 25 l/min
  • Internal leakage: Max. 150 cm³/min at 250 bar

Description
Downloads

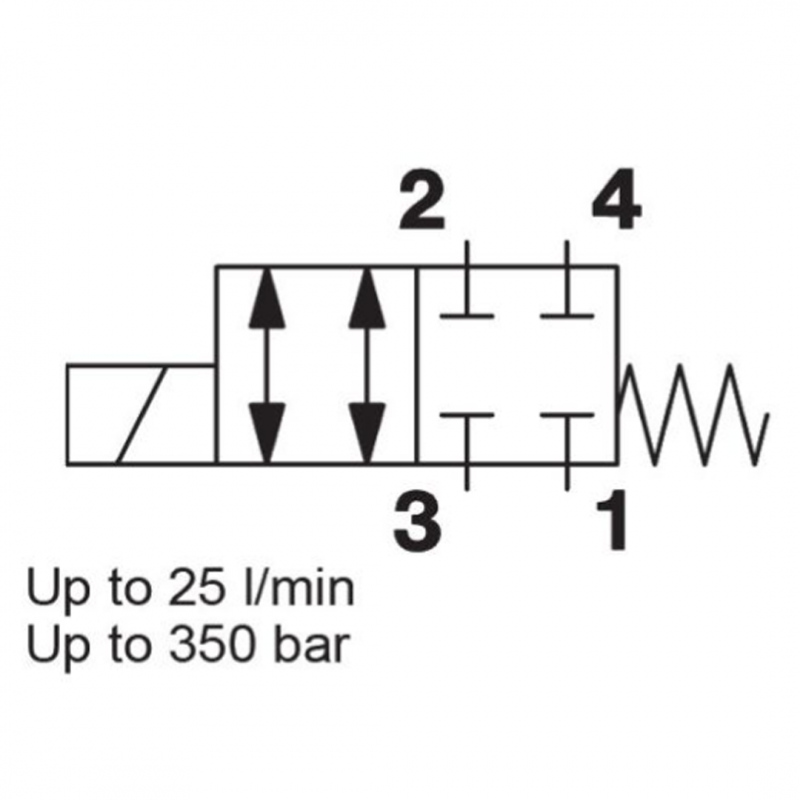

The HYDAC R-type solenoid valve is a versatile 4-way, 2-position directional control valve designed for compact hydraulic systems requiring reliable flow switching under high pressure. In its de-energized state, the valve securely closes all ports, preventing unwanted flow. When energized, it allows bidirectional free flow between ports 2 and 3 as well as between 1 and 4, offering flexible circuit control for a wide range of applications.
