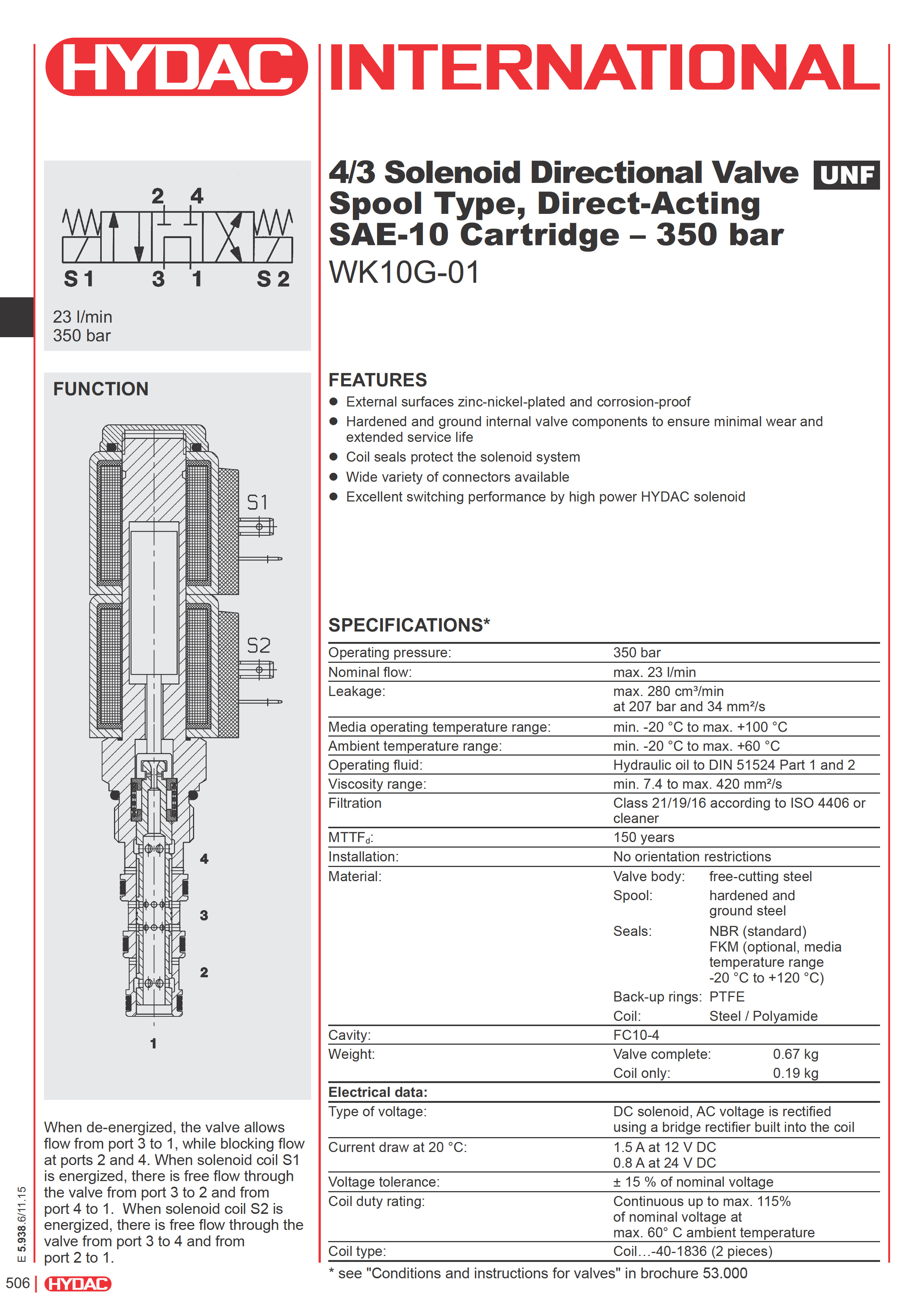

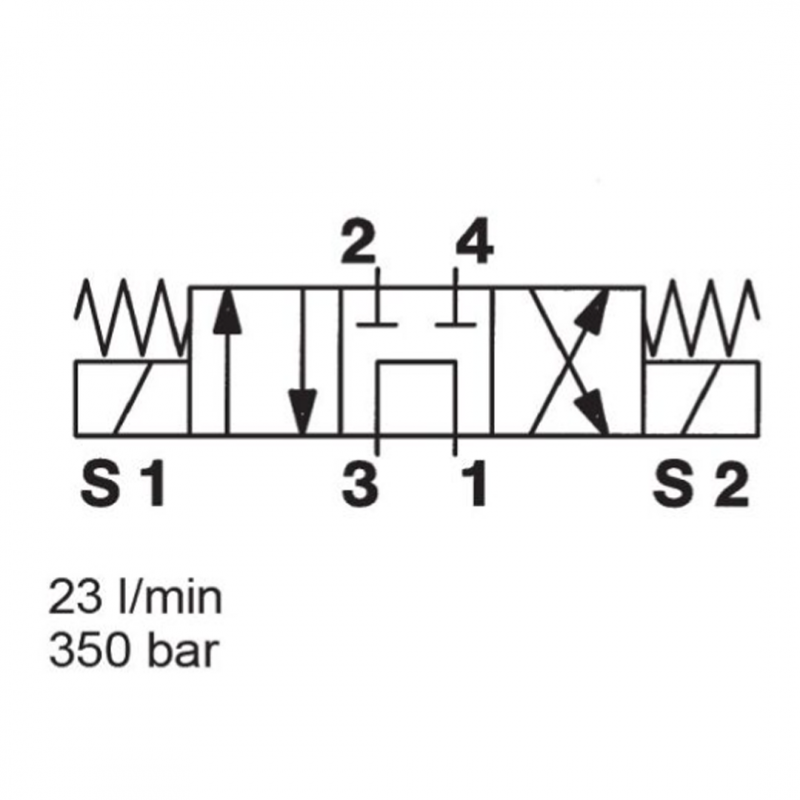

4/3 Solenoid Directional Valve Spool Type, Direct-Acting SAE-10 Cartridge – 350 bar
This HYDAC solenoid valve is a robust, high-performance unit designed for pressures up to 350 bar and flows up to 23 l/min. With sealed electronics, corrosion-resistant materials, and no orientation restrictions, it's ideal for demanding hydraulic systems where reliability and flexibility are essential.
Key Features:
- Max. operating pressure: 350 bar
- Nominal flow rate: Up to 23 l/min
- Wide fluid compatibility: Operates from -20°C to +100°C with standard NBR or optional FKM seals
This HYDAC solenoid valve is engineered for high-pressure hydraulic systems, offering reliable operation at up to 350 bar and a nominal flow rate of 23 l/min. Built with a corrosion-resistant, zinc-nickel-plated steel body and hardened, ground internal components, it ensures long service life and minimal wear. The valve operates efficiently across a wide temperature and viscosity range, with flexible installation thanks to its orientation-free design. Electrical features include a DC solenoid with built-in rectifier for AC use, continuous duty capability, and multiple connector options, making it a versatile choice for demanding industrial applications.
