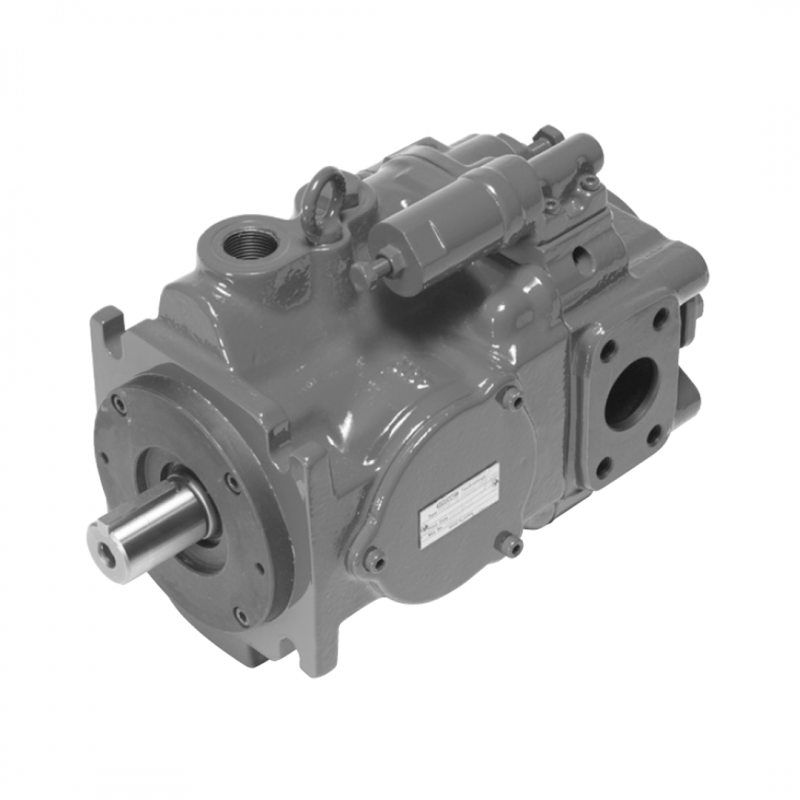

Hydac Axial Piston Pump PPV 100S

The HYDAC PPV100S Series Axial Piston Pump delivers high-efficiency hydraulic performance with precise control and robust design for demanding industrial and mobile applications. Designed for flexibility, it supports multiple pump combinations, pressure settings up to 350 bar, and operation with a variety of hydraulic fluids.

Key Features:

  • High Pressure: Rated up to 315 bar (peak 350 bar)
  • Fluid Versatility: Compatible with HL, HLP, HFC, HFD-R, and HFD-U fluids
  • Adjustable Performance: Tuneable flow, pressure, and multiple control options
Print page

Description
Downloads
PPV100S

The HYDAC PPV100S Series Axial Piston Pump is a high-performance hydraulic pump built for demanding industrial and mobile applications that require precision, efficiency, and reliability.

Designed for versatility, it features a wide displacement range from 16.3 to 180.7 cm³/rev and supports rated pressures up to 315 bar (peak 350 bar). Its robust construction ensures long service life and consistent performance under tough operating conditions.

Customizable control options including pressure compensator, remote pressure compensator, and load-sensing configurations allow it to adapt seamlessly to a variety of system requirements.

The pump is compatible with multiple hydraulic fluids (HL, HLP, HFC, HFD-R, and HFD-U) and comes standard with durable FPM seals for enhanced reliability and fluid compatibility.

With flexible installation options, low-noise operation, and precise adjustment features, the PPV100S Series delivers dependable power and performance across a wide range of hydraulic applications.
