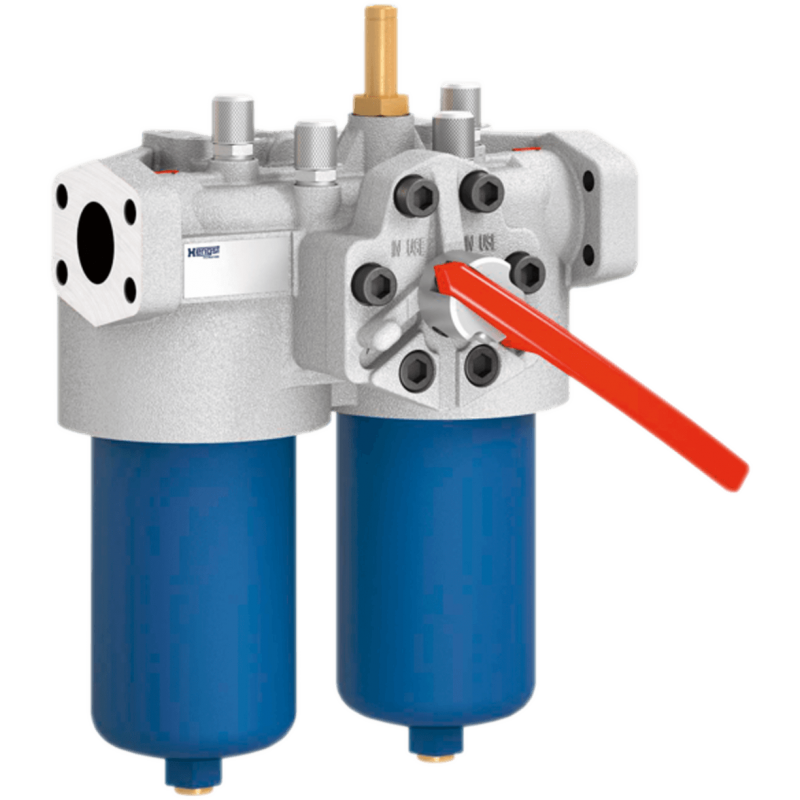

Hengst Duplex filter with filter element Type 210/250LD(N)

Hengst Duplex filter with filter element Type 210/250LD(N)

• Size according to DIN 24550: 0040 to 0400
• Nominal pressure 210 bar [3045 psi] or 250 bar [3625 psi]
• Connection up to 1 1/2"
• Operating temperature –10 °C to +100 °C [14 °F to 212 °F]

Features:

Duplex filters are used in hydraulic systems for the separation of solid materials from fluids and lubricating oils and are intended for installation in pipelines. A filter element can be changed without any operational interruption.

They have the following characteristics:

• Filters for inline installation, switchable
• Highly efficient filter materials
• High collapse rating of the filter elements
• By default equipped with mechanical optical maintenance indicator with memory function
• Pressure equalization function integrated in the switch-over
• By default measuring ports with threaded coupling
• Filtration support by means of cyclone-shaped flow path
• Available as an option with different electronic switching elements, modular design
• Optional bypass valve integrated in the filter housing
