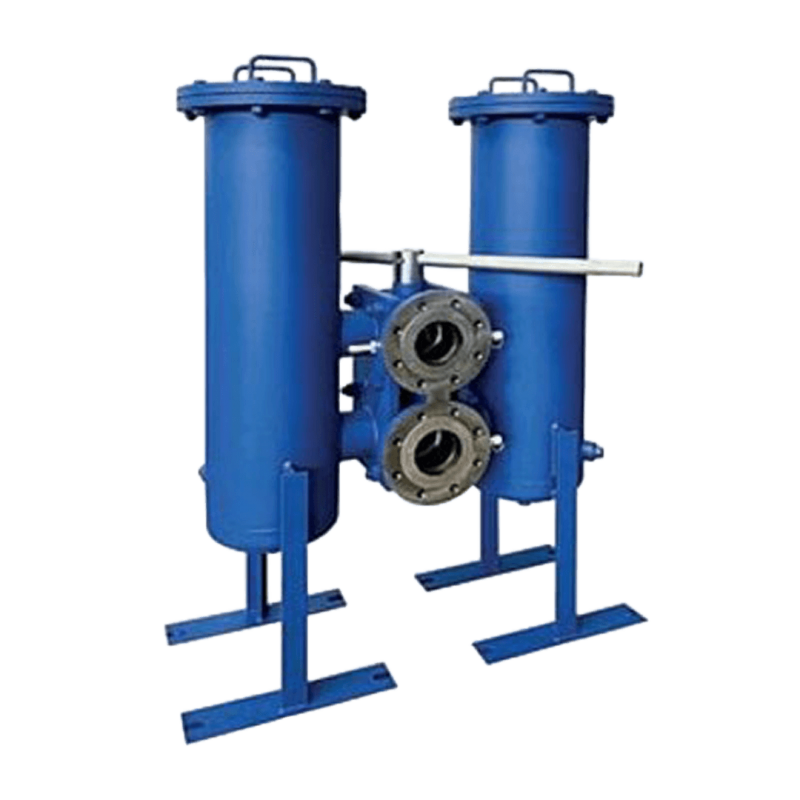

Hengst Duplex filter with filter element Type 16FDK
Duplex filters are used in hydraulic systems for the filtration of solids from hydraulic fluids and lubricating oils. They are intended for installation in pipelines. The Filter Elements can be replaced without interrupting operation.
Hengst- Formerly Bosch Rexroth Filtration
Description
Downloads
Hengst Duplex filter with filter element Type 16FDK
- Nominal size according to Hengst Standard: 2500 to 4000
- Nominal pressure 16 bar [232 psi]
- Connection DN 100
- Operating temperature –10 °C ... +100 °C [14 °F to 212 °F]
Features:
Duplex filters are used in hydraulic systems for separating solid materials from fluids and lubricating oils, and are intended for installation in pipelines. The filter elements can be changed without any operational interruption.
They have the following characteristics:
- Filters for inline installation, switchable
- Special highly efficient filter materials
- High collapse resistance of the filter elements
- As standard fitted with mechanical-optical maintenance indicator with memory function
- Optional features with various electrical switching elements possible, modular design
- Optional integrated by-pass valve in the filter element
- Test ports fitted as a standard on the change-over valve housing
- Gas-tight ball valve change-over mechanism
- Pressure equalization line as a standard feature
