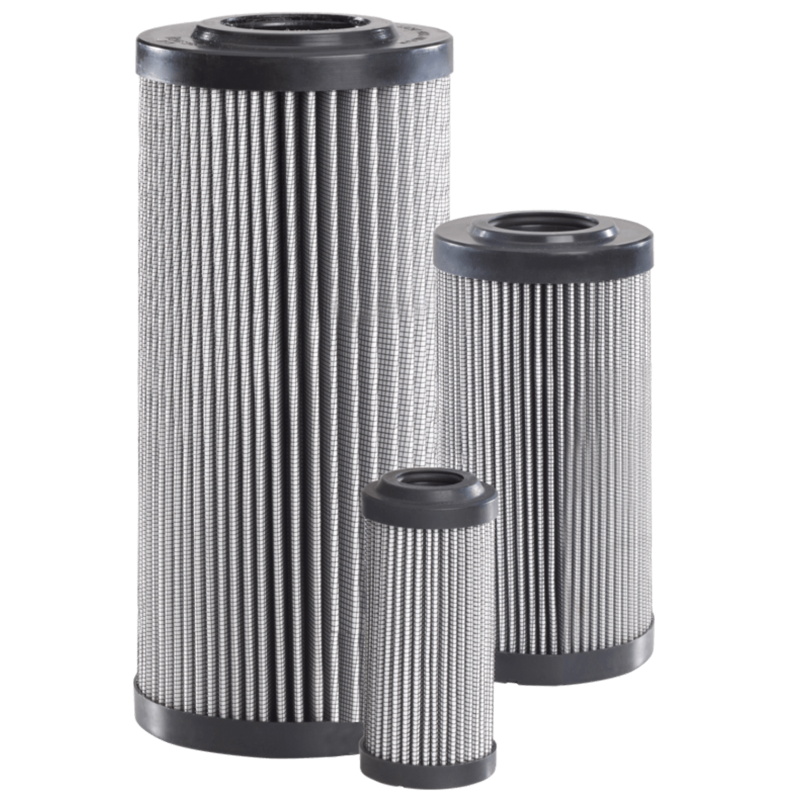

Hengst Filter Elements Type 9
The Filter Element is the central component in a filter, where the actual filtration takes place. The key filter parameters such as retention capacity, dirt holding capacity and pressure loss are determined by the Filter Element and the filter media used.
Hengst- Formerly Bosch Rexroth Filtration
Description
Downloads
Hengst Filter Elements Type 9
- Nominal size 60 ... 660
- Nominal size 30LA ... 1500LA
- Differential pressure 30 or 210 bar
- Filter rating from 1 µm
- Replacement for Hydac D filter elements
Features:

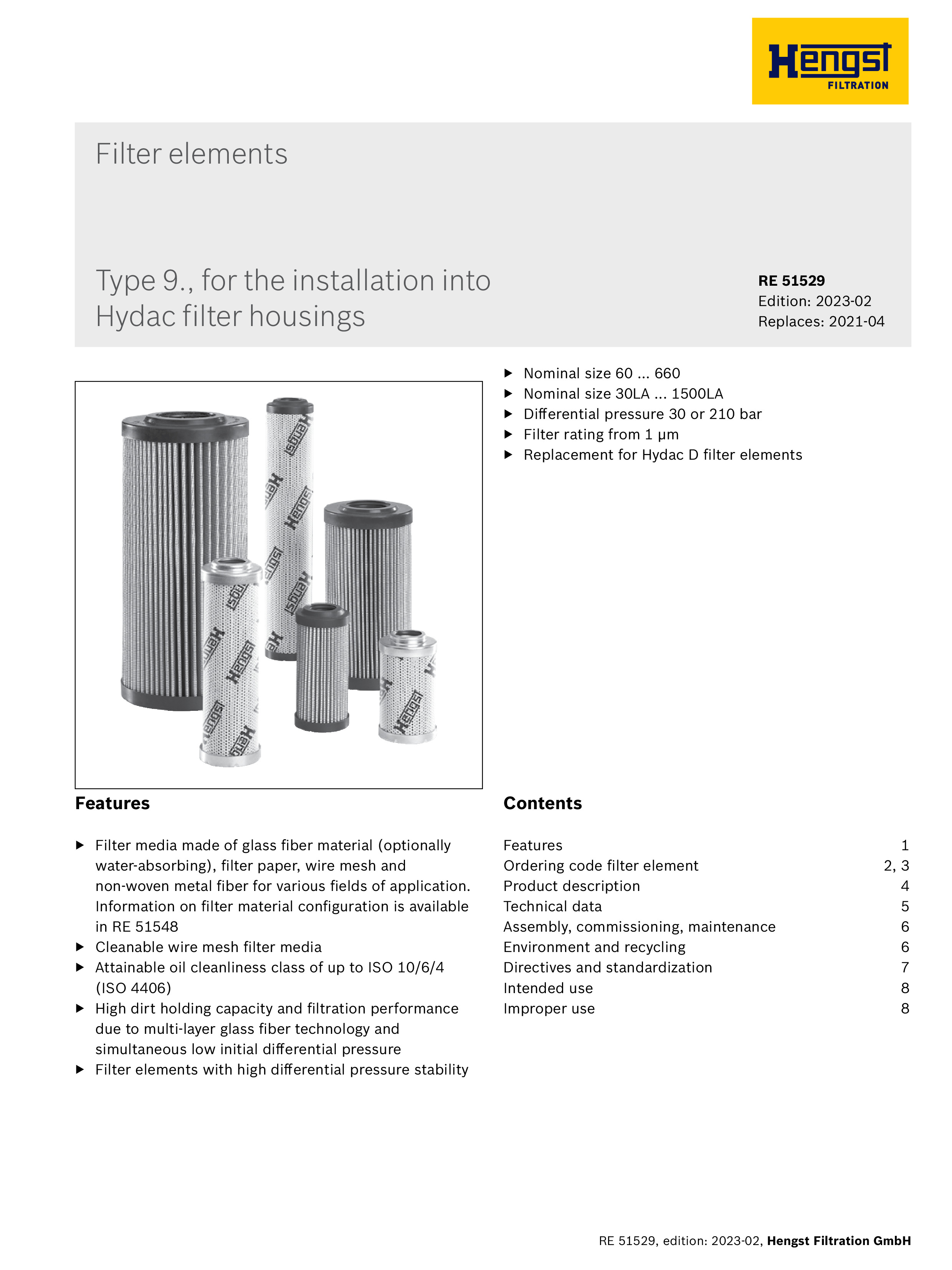

- Filter media made of glass fiber material (optionally water-absorbing), filter paper, wire mesh and non-woven metal fiber for various fields of application. Information on filter material configuration is available in RE 51548
- Cleanable wire mesh filter media
- Attainable oil cleanliness class of up to ISO 10/6/4 (ISO 4406)
- High dirt holding capacity and filtration performance due to multi-layer glass fiber technology and simultaneous low initial differential pressure
- Filter elements with high differential pressure stability
