Hengst Filter Elements Type 10
The Filter Element is the central component in a filter, where the actual filtration takes place. The key filter parameters such as retention capacity, dirt holding capacity and pressure loss are determined by the Filter Element and the filter media used.
Hengst- Formerly Bosch Rexroth Filtration
Description
Downloads

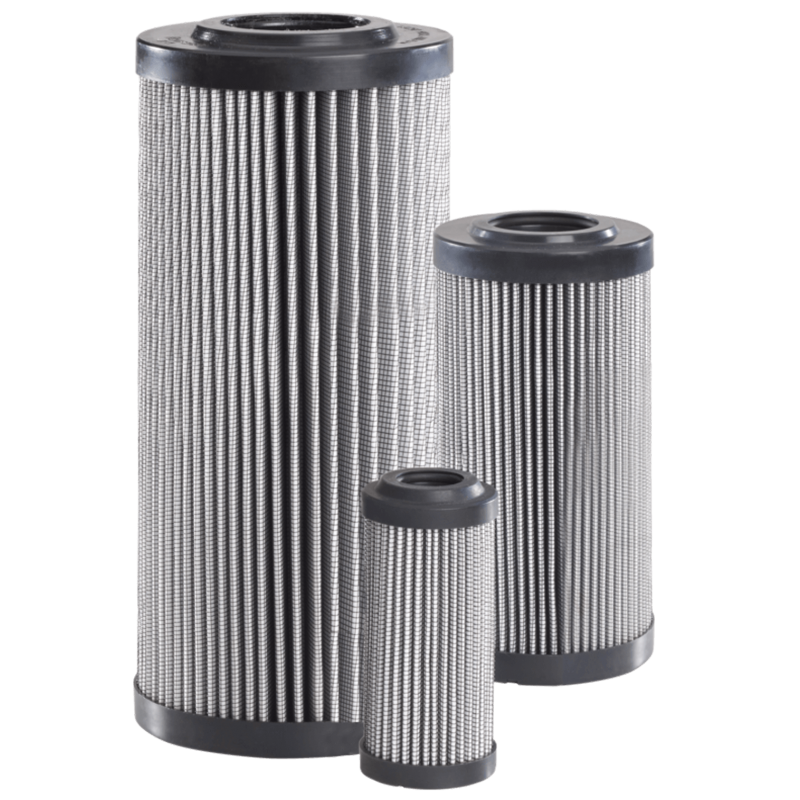

Hengst Filter Elements Type 10
- Nominal size 0060 ... 2600
- Nominal size 0030LA ... 2600LA
- Differential pressure 30 bar
- Filter rating from 1 µm
- Replacement for Hydac R filter elements
Features:
- Filter media made of glass fiber material (optionally water-absorbing), filter paper and wire mesh for various fields of application. Information on filter material configuration is available in RE 51548
- Cleanable wire mesh filter media
- Attainable oil cleanliness class of up to ISO 10/6/4 (ISO 4406)
- High dirt holding capacity and filtration performance due to multi-layer glass fiber technology and simultaneous low initial differential pressure
