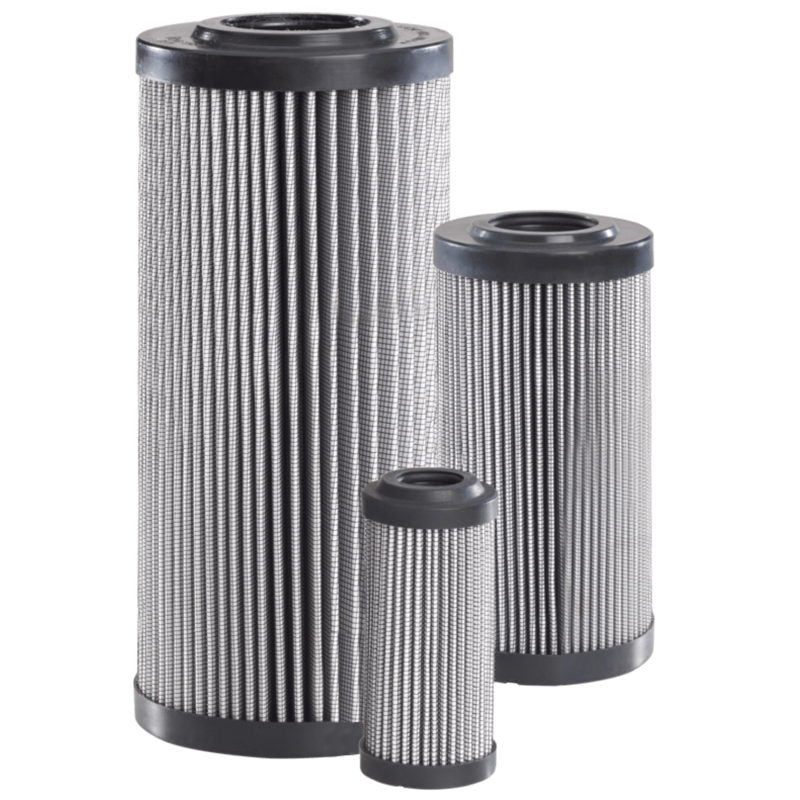

Hengst Filter Elements Type 17
The Filter Element is the central component in a filter, where the actual filtration takes place. The key filter parameters such as retention capacity, dirt holding capacity and pressure loss are determined by the Filter Element and the filter media used.
Hengst- Formerly Bosch Rexroth Filtration
Description
Downloads
Hengst Filter Elements Type 17
- Size 0250 ... 3001
- Differential pressure 10 ... 250 bar
- Filter rating from 1 µm
Features:
- Filter media made of glass fiber material (optionally water-absorbing), filter paper and wire mesh for various fields of application. Information on filter material configuration is available in RE 51548
- Cleanable wire mesh filter media
- Attainable oil cleanliness up to ISO 12/8/3 (ISO 4406)
- High dirt holding capacity and filtration performance due to multi-layer glass fiber technology and simultaneous low initial differential pressure
- Filter elements with high pressure differential stability
