Carr Lane Hand Wheels

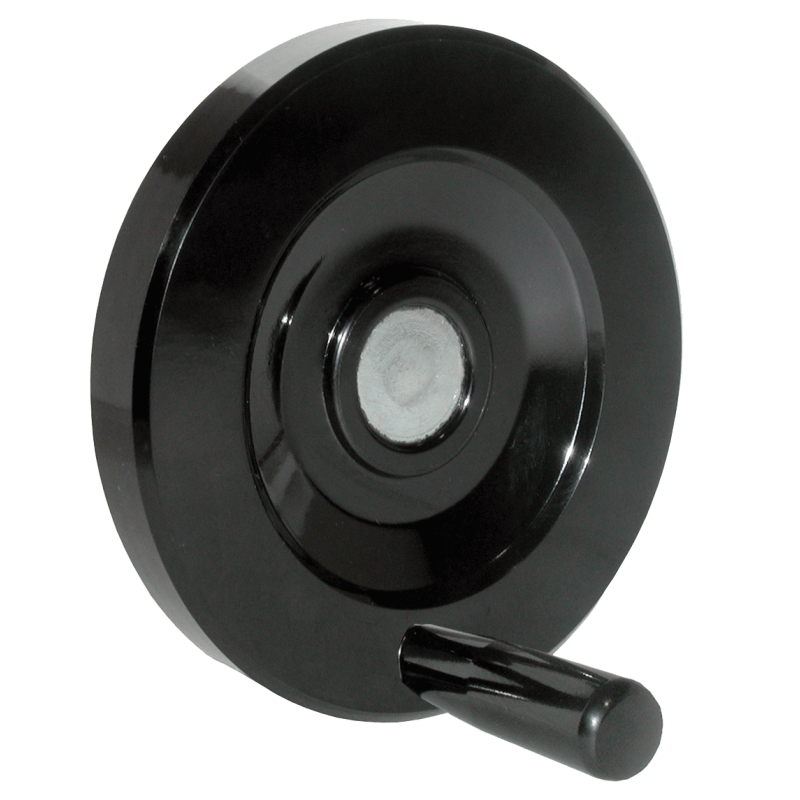

HYQUIP supply the full range of Carr Lane Hand wheels which are available in various different designs and finishes. These finishes include thermoplastic, phenolic plastic, aluminium stainless steel and cast iron. They also offer a wide range of design options which include straight spoke, two-spoke, two spoke square, angled-spoke, solid square, and solid disc shaped machine handwheels. These hand wheels are offered in various sizes depended on the selected model.

  • 5 unique finishes

  • 6 unique design variations

  • Available in various sizes

Print page

Products
Description
Part Number Material Number Type External Diameter Handle Type Material Internal Diameter Price Add to Parts List

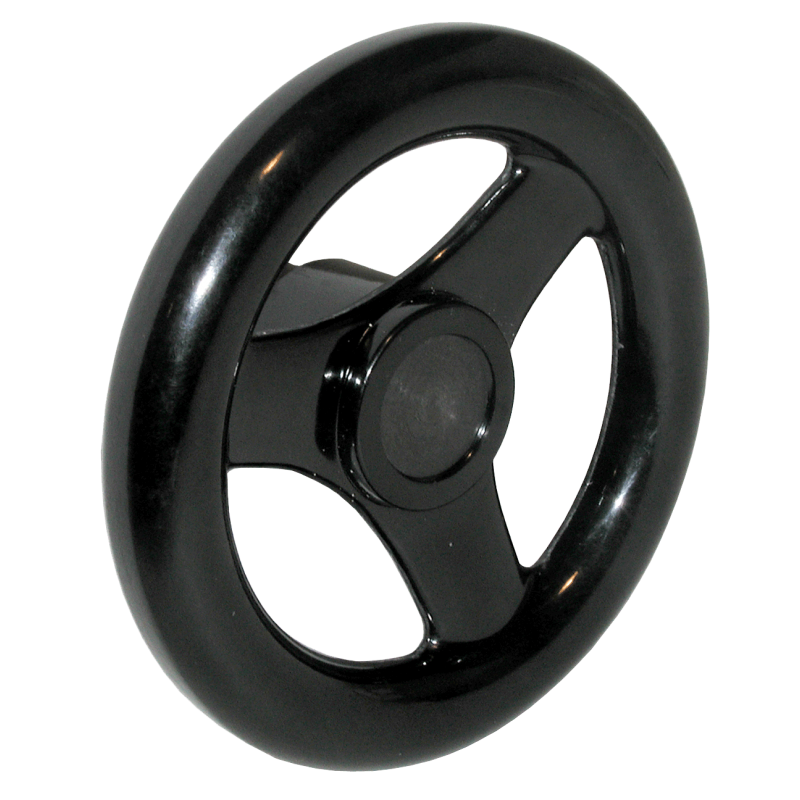

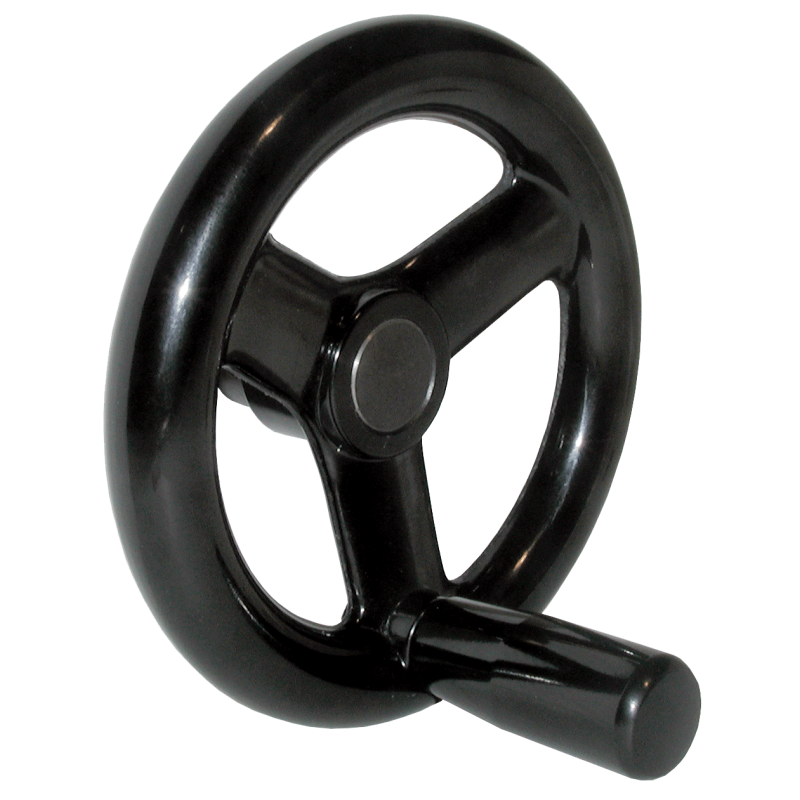

CL-8-HWAR-F CL-8-HWAR-F CL-8-HWAR-F Angled-Spoke, Rounded Design 7.80 Phenolic 1.57 On Enquiry
CL-5-HWAR-F CL-5-HWAR-F CL-5-HWAR-F Angled-Spoke, Rounded Design 4.88 Phenolic .94 On Enquiry
CL-4-HWAR-F CL-4-HWAR-F CL-4-HWAR-F Angled-Spoke, Rounded Design 3.86 Phenolic .94 On Enquiry
CL-6-HWAR-F CL-6-HWAR-F CL-6-HWAR-F Angled-Spoke, Rounded Design 6.18 Phenolic 1.26 On Enquiry

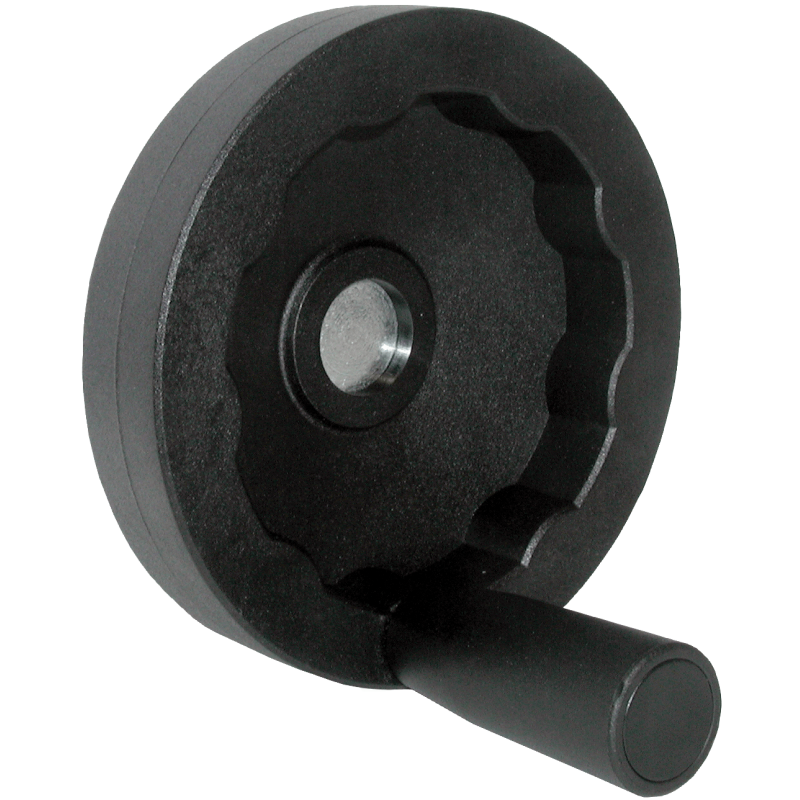

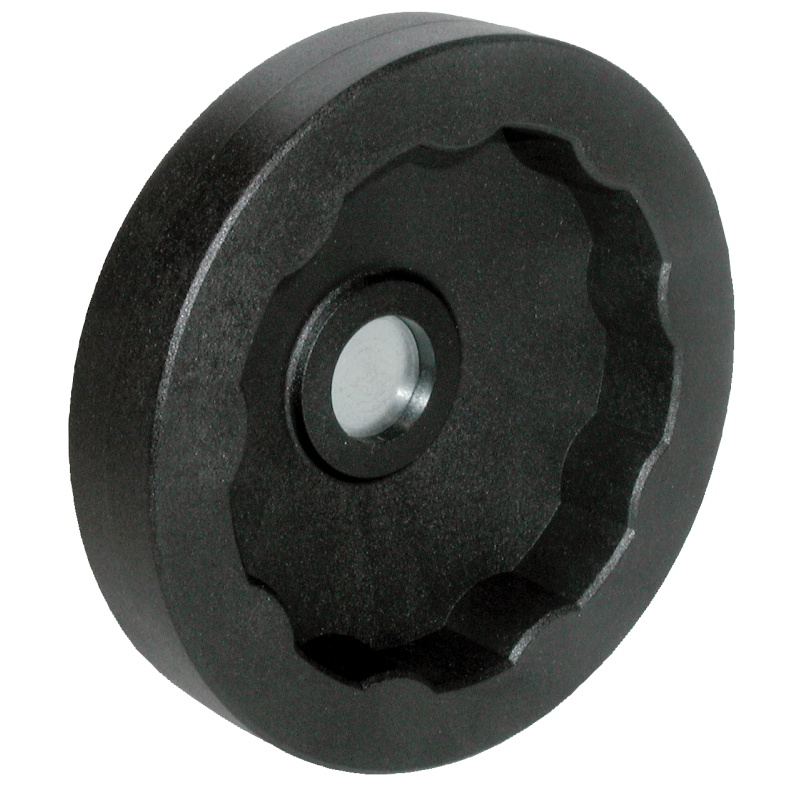

CL-8-HWSS-P CL-8-HWSS-P CL-8-HWSS-P Solid Square Design 7.87 Thermoplastic 1.57 On Enquiry

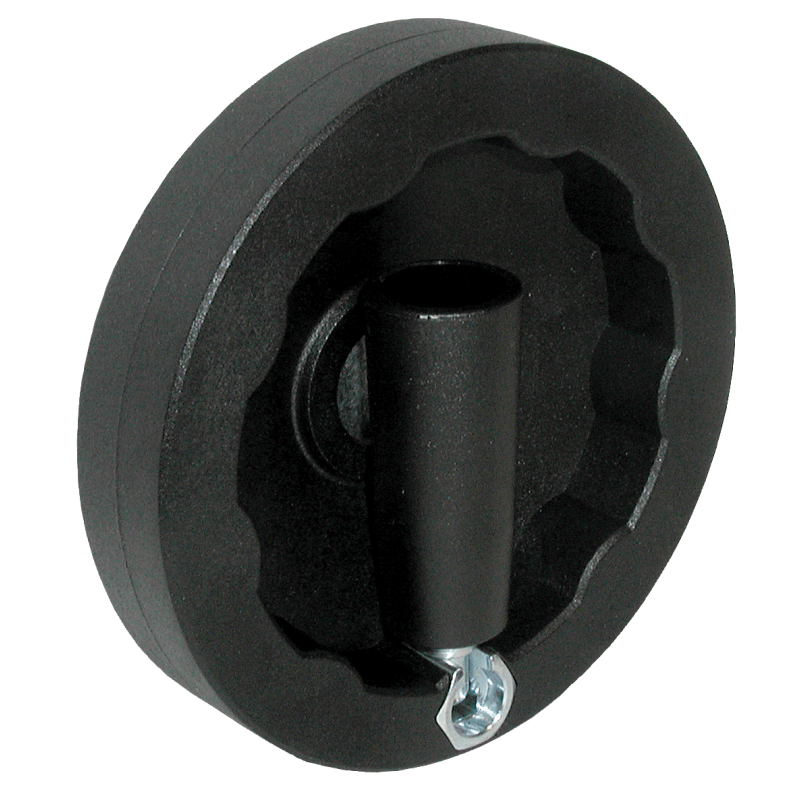

CL-42-HWSS-P CL-42-HWSS-P CL-42-HWSS-P Solid Square Design 3.94 Foldable Revolving Handle Thermoplastic .94 On Enquiry
CL-5-HWSS-P CL-5-HWSS-P CL-5-HWSS-P Solid Square Design 4.92 Thermoplastic .94 On Enquiry
CL-6-HWSS-F CL-6-HWSS-F CL-6-HWSS-F Solid Square Design 5.91 Phenolic 1.26 On Enquiry
CL-4-HWSS-F CL-4-HWSS-F CL-4-HWSS-F Solid Square Design 3.94 Phenolic .94 On Enquiry
CL-81-HWSS-P CL-81-HWSS-P CL-81-HWSS-P Solid Square Design 7.87 Revolving Handle Thermoplastic 1.57 On Enquiry
CL-61-HWSS-P CL-61-HWSS-P CL-61-HWSS-P Solid Square Design 6.30 Revolving Handle Thermoplastic 1.26 On Enquiry
CL-4-HWSS-P CL-4-HWSS-P CL-4-HWSS-P Solid Square Design 3.94 Thermoplastic .94 On Enquiry
CL-6-HWSS-P CL-6-HWSS-P CL-6-HWSS-P Solid Square Design 6.30 Thermoplastic 1.26 On Enquiry
CL-82-HWSS-P CL-82-HWSS-P CL-82-HWSS-P Solid Square Design 7.87 Foldable Revolving Handle Thermoplastic 1.57 On Enquiry
CL-51-HWSS-P CL-51-HWSS-P CL-51-HWSS-P Solid Square Design 4.92 Revolving Handle Thermoplastic .94 On Enquiry
CL-3-HWSS-F CL-3-HWSS-F CL-3-HWSS-F Solid Square Design 3.15 Phenolic .79 On Enquiry
CL-41-HWSS-P CL-41-HWSS-P CL-41-HWSS-P Solid Square Design 3.94 Revolving Handle Thermoplastic .94 On Enquiry
CL-5-HWSS-F CL-5-HWSS-F CL-5-HWSS-F Solid Square Design 4.92 Phenolic 1.26 On Enquiry
CL-62-HWSS-P CL-62-HWSS-P CL-62-HWSS-P Solid Square Design 6.30 Foldable Revolving Handle Thermoplastic 1.26 On Enquiry
CL-81-HWSS-F CL-81-HWSS-F CL-81-HWSS-F Solid Square Design 7.87 Revolving Handle Phenolic 1.57 On Enquiry
CL-52-HWSS-P CL-52-HWSS-P CL-52-HWSS-P Solid Square Design 4.92 Foldable Revolving Handle Thermoplastic .94 On Enquiry

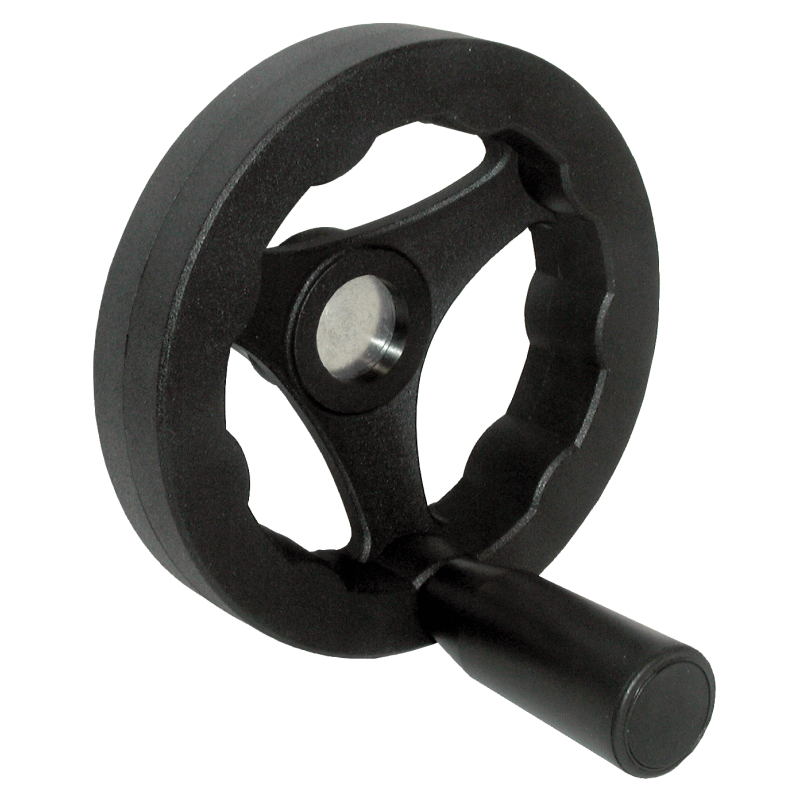

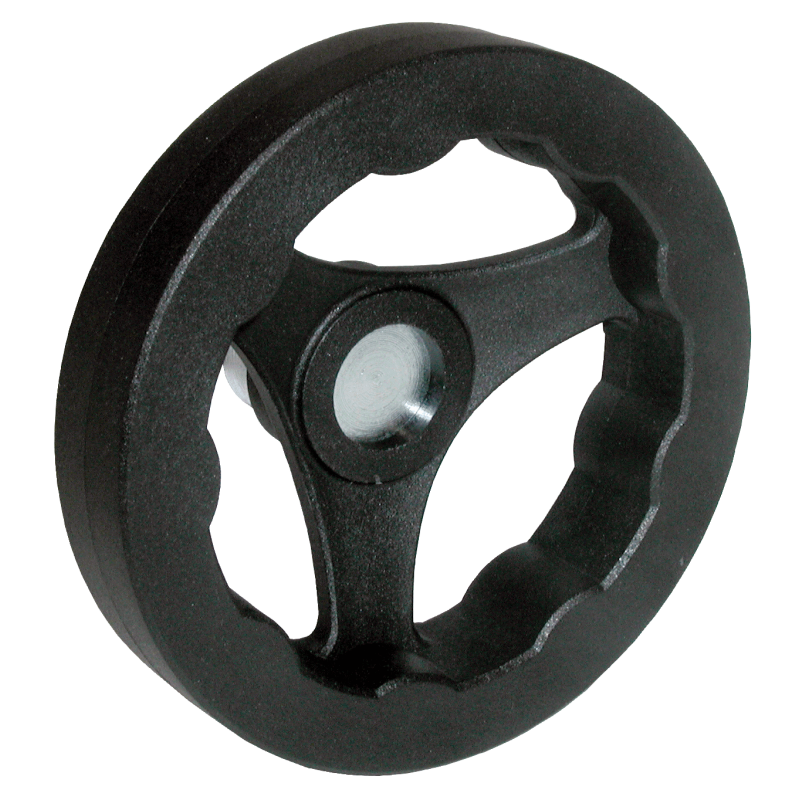

CL-6-HWAS-P CL-6-HWAS-P CL-6-HWAS-P Angled-Spoke, Square Design 6.30 Thermoplastic 1.26 On Enquiry
CL-4-HWAS-P CL-4-HWAS-P CL-4-HWAS-P Angled-Spoke, Square Design 3.94 Thermoplastic .94 On Enquiry
CL-61-HWAS-P CL-61-HWAS-P CL-61-HWAS-P Angled-Spoke, Square Design 6.30 Revolving Handle Thermoplastic 1.26 On Enquiry
CL-51-HWAS-P CL-51-HWAS-P CL-51-HWAS-P Angled-Spoke, Square Design 4.92 Revolving Handle Thermoplastic .94 On Enquiry
CL-5-HWAS-P CL-5-HWAS-P CL-5-HWAS-P Angled-Spoke, Square Design 4.92 Thermoplastic .94 On Enquiry
CL-8-HWAS-P CL-8-HWAS-P CL-8-HWAS-P Angled-Spoke, Square Design 7.87 Thermoplastic 1.57 On Enquiry
CL-6-HWTR-P CL-6-HWTR-P CL-6-HWTR-P Two-Spoke Rounded Design 6.30 Thermoplastic 1.02 On Enquiry
CL-4-HWTR-P CL-4-HWTR-P CL-4-HWTR-P Two-Spoke Rounded Design 3.90 Thermoplastic .71 On Enquiry
CL-41-HWTR-P CL-41-HWTR-P CL-41-HWTR-P Two-Spoke Rounded Design 3.90 Revolving Handle Thermoplastic .71 On Enquiry

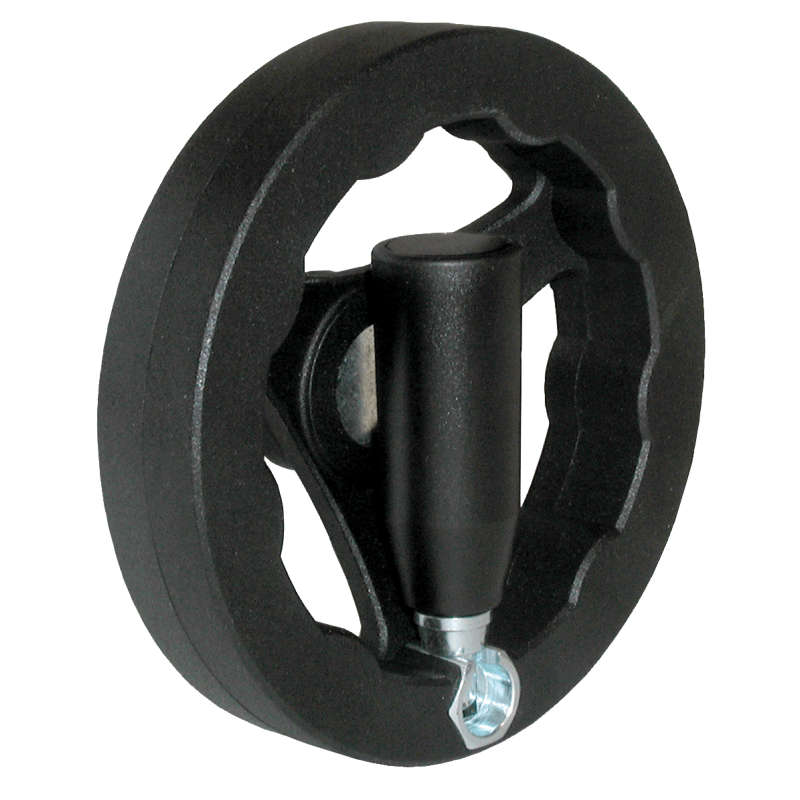

CL-82-HWTR-P CL-82-HWTR-P CL-82-HWTR-P Two-Spoke Rounded Design 7.87 Foldable Revolving Handle Thermoplastic 1.18 On Enquiry
CL-62-HWTR-P CL-62-HWTR-P CL-62-HWTR-P Two-Spoke Rounded Design 6.30 Foldable Revolving Handle Thermoplastic 1.02 On Enquiry
CL-52-HWTR-P CL-52-HWTR-P CL-52-HWTR-P Two-Spoke Rounded Design 4.88 Foldable Revolving Handle Thermoplastic .87 On Enquiry
CL-8-HWTR-P CL-8-HWTR-P CL-8-HWTR-P Two-Spoke Rounded Design 7.87 Thermoplastic 1.18 On Enquiry
CL-42-HWTR-P CL-42-HWTR-P CL-42-HWTR-P Two-Spoke Rounded Design 3.90 Foldable Revolving Handle Thermoplastic .71 On Enquiry
CL-5-HWTR-P CL-5-HWTR-P CL-5-HWTR-P Two-Spoke Rounded Design 4.88 Thermoplastic .87 On Enquiry
CL-81-HWTR-P CL-81-HWTR-P CL-81-HWTR-P Two-Spoke Rounded Design 7.87 Revolving Handle Thermoplastic 1.18 On Enquiry
CL-61-HWTR-P CL-61-HWTR-P CL-61-HWTR-P Two-Spoke Rounded Design 6.30 Revolving Handle Thermoplastic 1.02 On Enquiry
CL-51-HWTR-P CL-51-HWTR-P CL-51-HWTR-P Two-Spoke Rounded Design 4.88 Revolving Handle Thermoplastic .87 On Enquiry

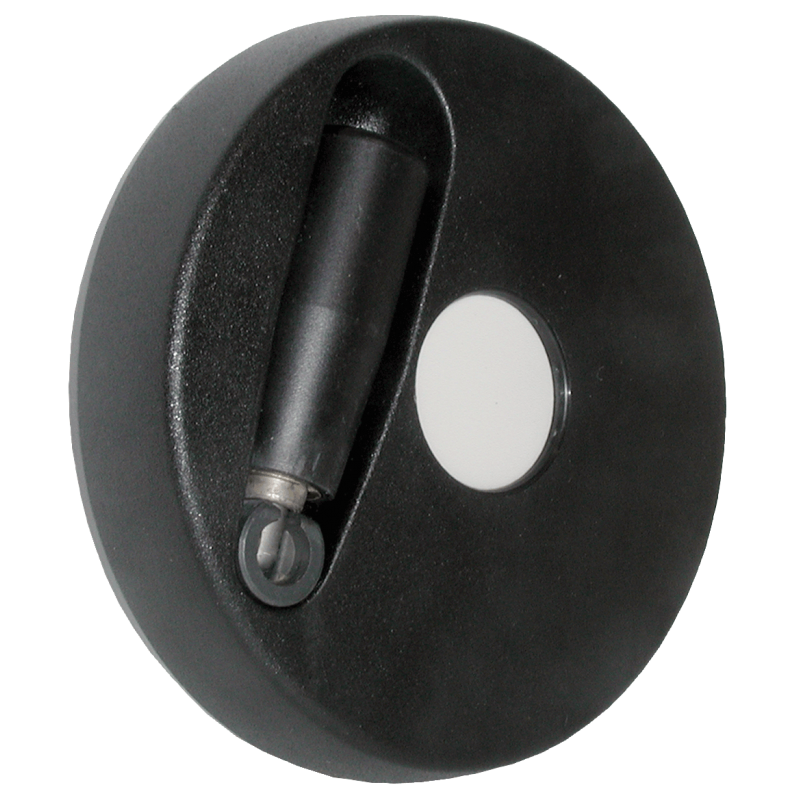

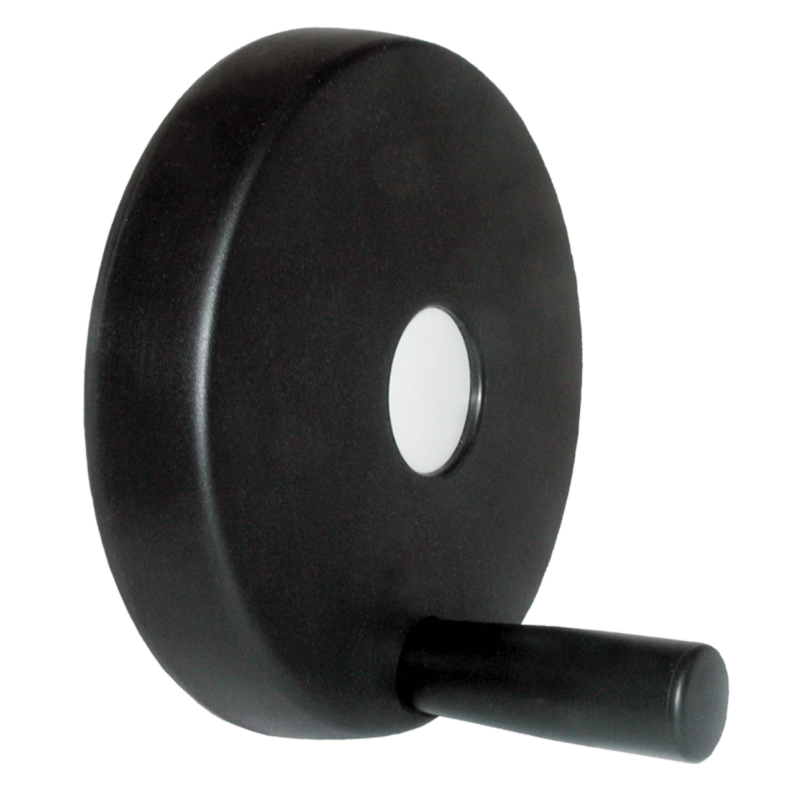

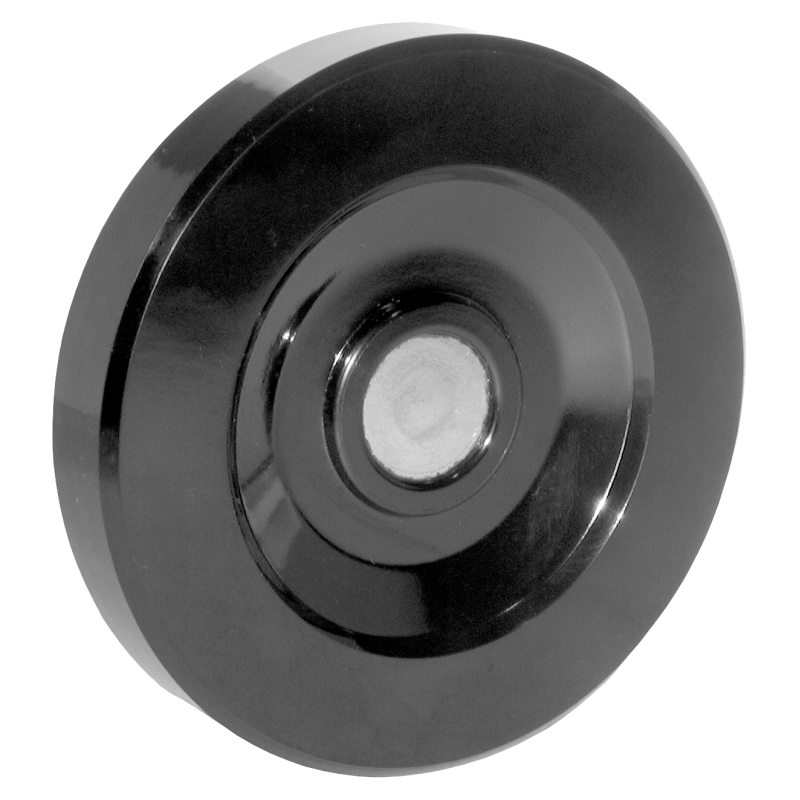

CL-62-HWSD-P CL-62-HWSD-P CL-62-HWSD-P Solid Disk Design 5.91 Foldable Revolving Handle Thermoplastic 1.02 On Enquiry
CL-81-HWSD-P CL-81-HWSD-P CL-81-HWSD-P Solid Disk Design 7.87 Revolving Handle Thermoplastic 1.57 On Enquiry
CL-61-HWSD-P CL-61-HWSD-P CL-61-HWSD-P Solid Disk Design 5.91 Revolving Handle Thermoplastic 1.02 On Enquiry
CL-51-HWSD-P CL-51-HWSD-P CL-51-HWSD-P Solid Disk Design 4.92 Revolving Handle Thermoplastic 1.02 On Enquiry
CL-41-HWSD-P CL-41-HWSD-P CL-41-HWSD-P Solid Disk Design 4.02 Revolving Handle Thermoplastic .87 On Enquiry

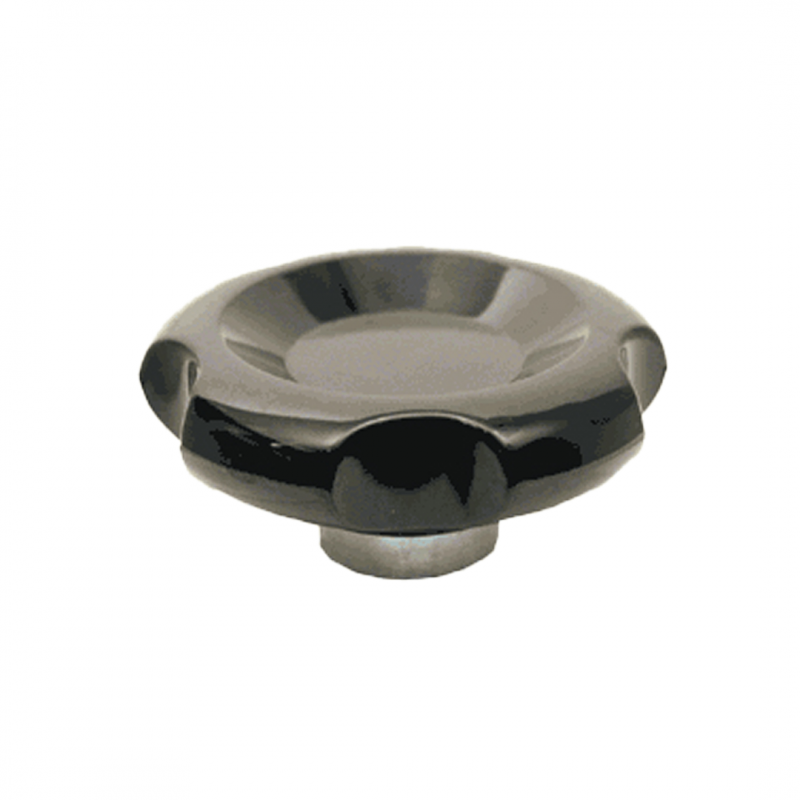

CL-4-FHW CL-4-FHW CL-4-FHW Fluted 3.54 Phenolic 1.26 On Enquiry
CL-3-FHW CL-3-FHW CL-3-FHW Fluted 2.95 Phenolic .94 On Enquiry

High-quality Hand Wheels, available in cast iron, aluminium, stainless steel, thermoplastic or phenolic, and are bored to the standard shaft diameter for their size. Wheels are tapped for a Standard Solid or Revolving handle, a Foldable Revolving handle or a plain rim without a handle (all handles ordered separately).

While some have a textured surface for secure gripping and excellent impact resistance, others are resistant to oils and most common chemicals, are extremely hard and electrical insulator.

Options

  • Cast Iron, Aluminium, Stainless Steel, Thermoplastic, Phenolic

  • Solid and Revolving Handles/Revolving Foldable (bought separately)

  • Sizes 1-5

  • Angled-Spoke, Straight-Spoke, Two-Spoke, Solid, Rounded Design, Square Design, Disk Design, Fluted

All finer details are found on the DATA SHEET.
