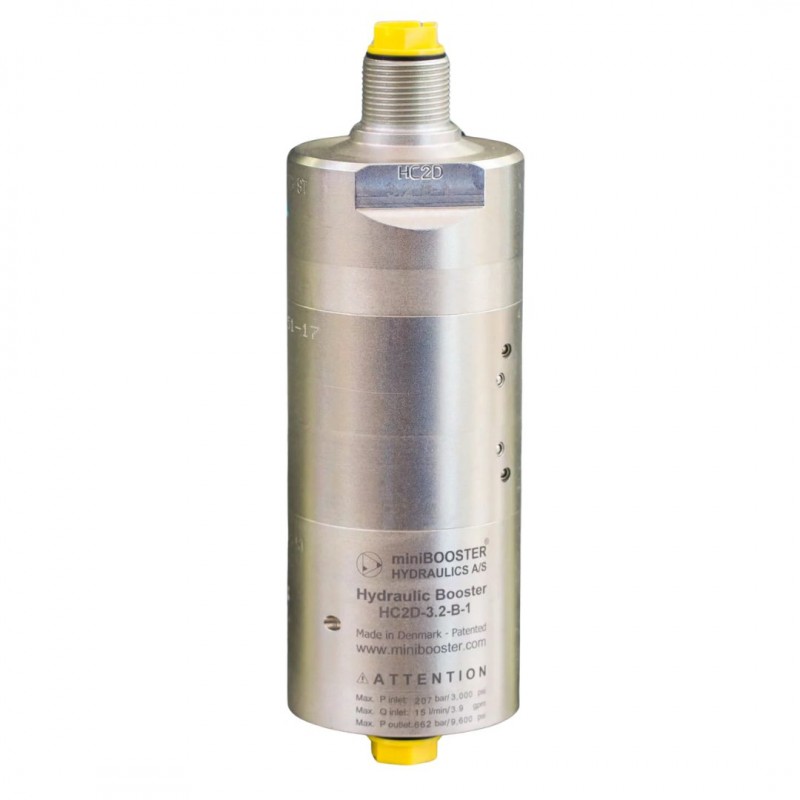

miniBOOSTER HC2D-D
The HC2D-D is a high-flow dual-acting unit which is capable of delivering up to 11.0 l/min flow on the high-pressure end.
Like other miniBOOSTER models, the HC2D-D raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2D-D is a compact unit weighing 3.5 kg. The entire pattern is a miniBOOSTER design.
The HC2D-D is a high-flow dual-acting unit which is capable of delivering up to 11.0 l/min flow on the high-pressure end.
Like other miniBOOSTER models, the HC2D-D raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2D-D is a compact unit weighing 3.5 kg. The entire pattern is a miniBOOSTER design.
HC2D-D versions: 13 different intensification factors
P - IN: 20 – 207 bar
P - H: 800 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Flange, manifold system miniBOOSTER pattern
Weight: 3.5 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
