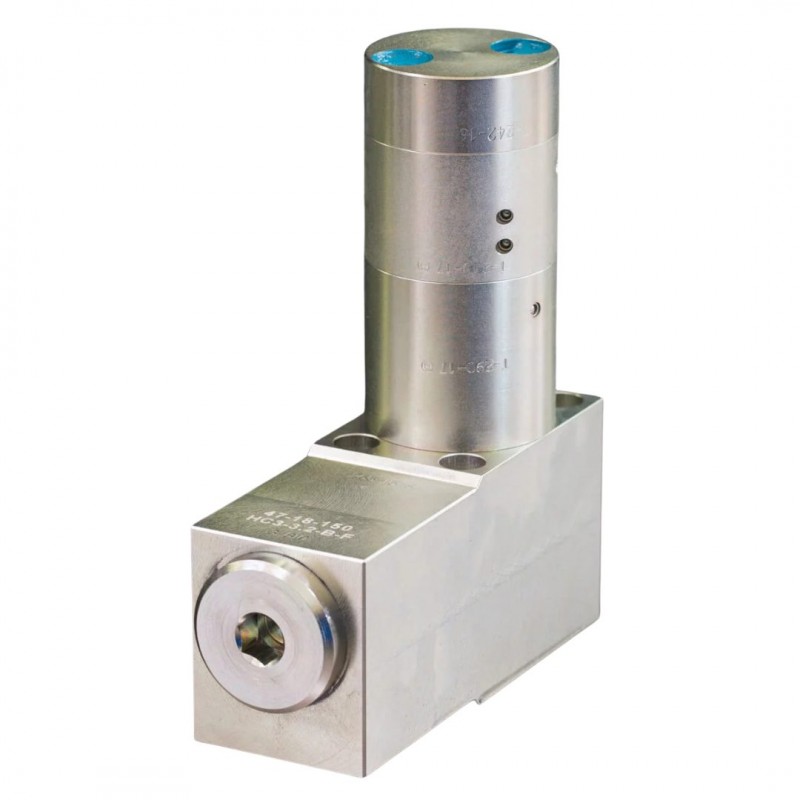

miniBOOSTER HC3-F

The HC3 – F is an up-right standing variant of the HC3 with a 10 micron filter incorporated and optional orifice to reduce inlet flow to the maximum allowed for the intensification ratio selected.

It has all ports in one end and the entire pattern is a miniBOOSTER design. It is a compact unit weighing only 3.9 kg. Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure.

HC3 – F versions: 15 different intensification factors

P - IN: 20–207 bar

P - H: 500 bar maximum

P - RETURN: As low as possible (return pressure to tank)

P - OUTLET: PH = (PIN – PRETURN) x intensification factor

Mounting: Manifold system miniBOOSTER pattern

Weight:  3.9KG

Model versions:

A model = no dump valve

B model = with dump valve

G model = direct proportionally controlled

Material certificate 3.1 on request
