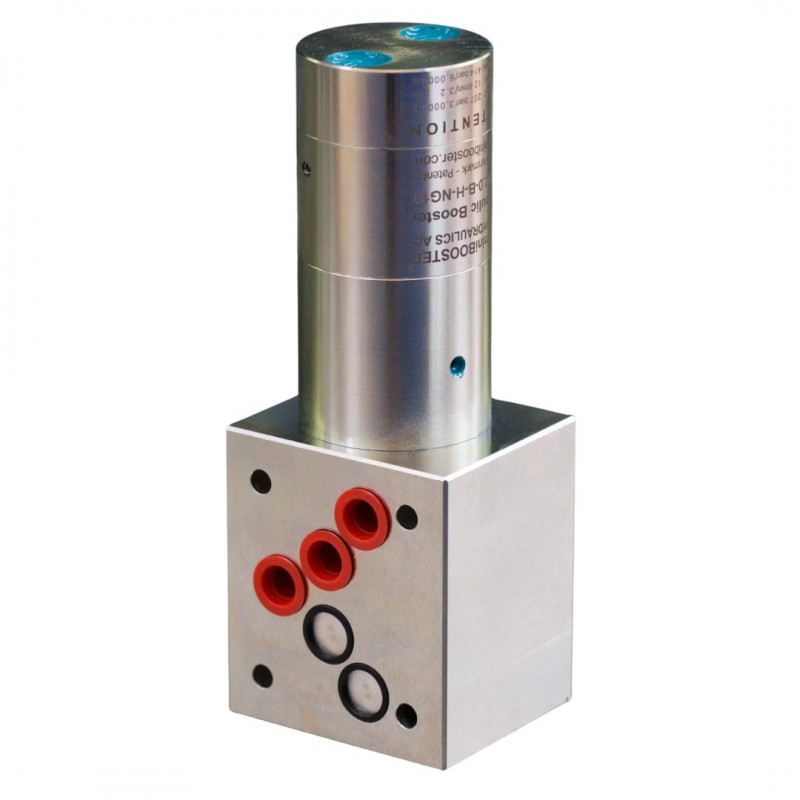

miniBOOSTER HC3-H-NG10

The HC3-H-NG10 is a variant of the HC3 with the topside and the B port closed, not needing a top plate. It is designed for use in NG10 (D05) stacking manifold systems. Like the other HC3 units, the HC3-H-NG10 is a compact unit weighing only 3.4 kg.

Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure.

HC3 – H – NG10 versions: 15 different intensification factors

P - IN: 20–207 bar

P - H: 500 bar maximum

P - RETURN: As low as possible (return pressure to tank)

P - OUTLET: PH = (PIN – PRETURN) x intensification factor

Mounting: NG10 (D05) stacking manifold system

Weight:  3.4 kg.

Model versions:

A model = no dump valve

B model = with dump valve

G model = Direct proportionally controlled

Material certificate 3.1 on request
