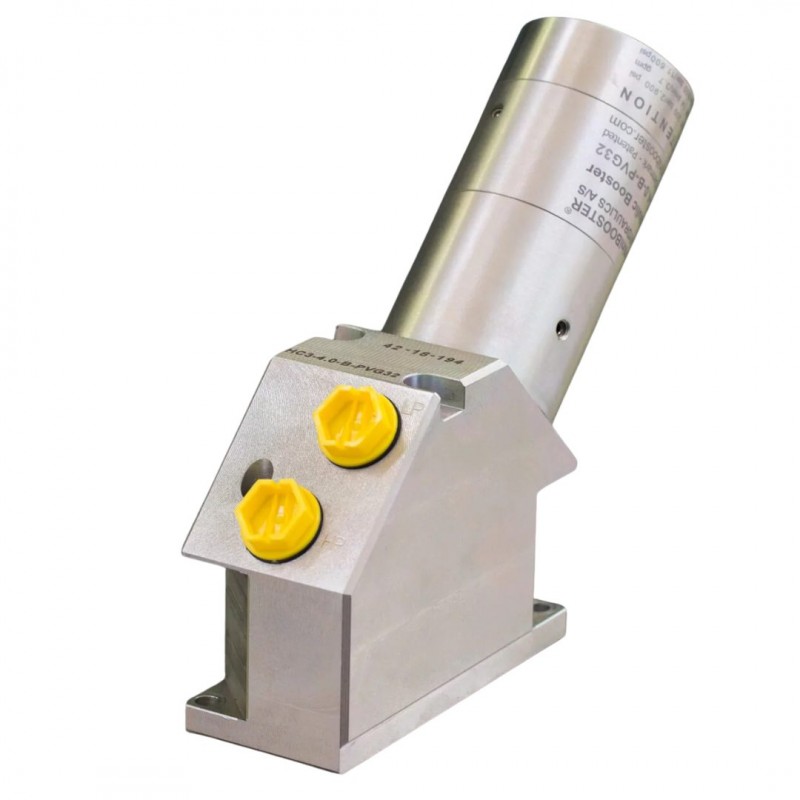

miniBOOSTER HC3-PVG32

The HC3-PVG32 is a compact unit weighing only 4.0 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.

The HC3-PVG32 raises supplied pressure to a higher outlet pressure and automatically conpensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.

HC3 – PVG32 versions: 15 different intensification factors

P - IN: 20–207 bar

P - H: 800 bar maximum

P - RETURN: As low as possible (return pressure to tank)

P - OUTLET: PH = (PIN – PRETURN) x intensification factor

Mounting: PVG32; PVB basic valve: 157B6849, Spool: 157B7000

Weight:  4.0 kg.

Model version:

B model = with dump valve

Material certificate 3.1 on request
