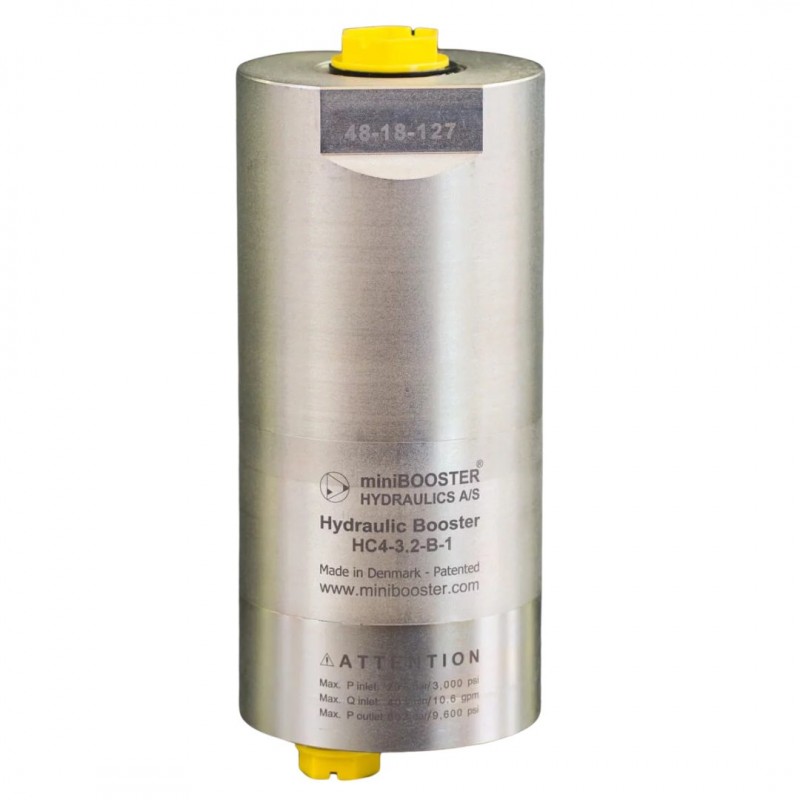

miniBOOSTER HC4
The HC4 is ideal for use in applications where a higher volume of high-pressure fluid is required. The HC4 is a compact unit weighing only 3.7 kg, but it delivers up to 16.3 l/min outlet flow.
Like the HC2, it raises supplied pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
The HC4 is ideal for use in applications where a higher volume of high-pressure fluid is required. The HC4 is a compact unit weighing only 3.7 kg, but it delivers up to 16.3 l/min outlet flow.
Like the HC2, it raises supplied pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
HC4 versions: 11 different intensification factors
P - IN: 20 – 207 bar
P - H: 800 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 3.7 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
