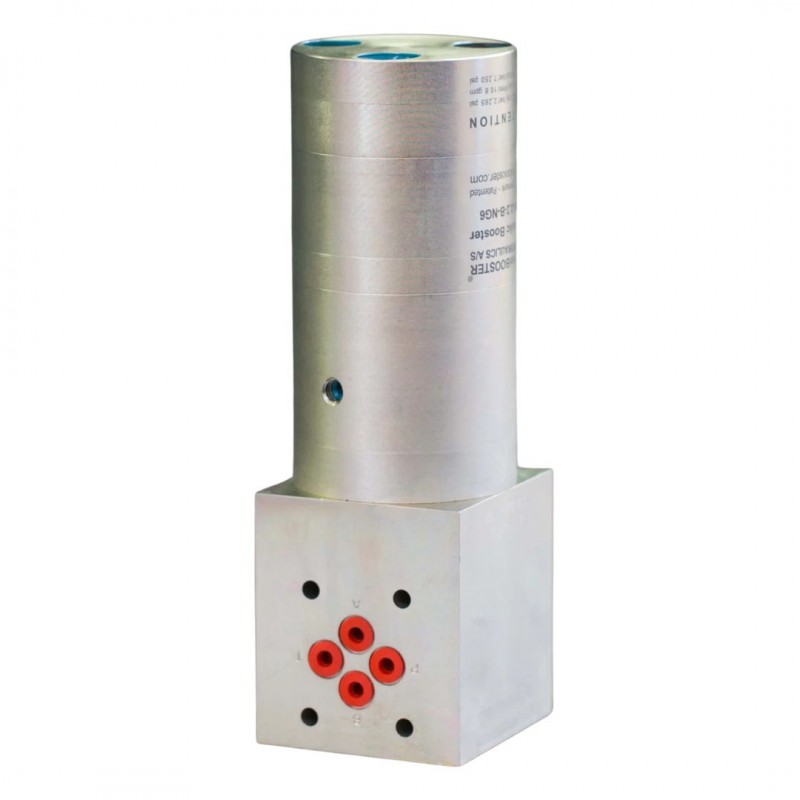

Minibooster HC4-NG
The HC4-NG is a variant of the HC4 providing high-pressure on the A port. It is designed for use in NG6 (D03) or NG10 (05) stacking manifold systems. The HC4-NG is ideal for use in applications where a higher volume of high-pressure fluid is required. The HC4-NG is a compact unit, but it delivers up to 16.3 l/min outlet flow.
Like the HC4, it raises supplied pressure and automatically compensates for consumption of oil to maintain the high pressure. Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure.
The HC4-NG is a variant of the HC4 providing high-pressure on the A port. It is designed for use in NG6 (D03) or NG10 (05) stacking manifold systems. The HC4-NG is ideal for use in applications where a higher volume of high-pressure fluid is required. The HC4-NG is a compact unit, but it delivers up to 16.3 l/min outlet flow.
Like the HC4, it raises supplied pressure and automatically compensates for consumption of oil to maintain the high pressure. Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure.
HC4 – NG versions: 11 different intensification factors
P - IN: 20 – 207 bar
P - H: 500 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: NG6 (D03) and NG10 (D05) stacking manifold system
Weight: NG6: 6.0 kg. / NG10: 6.2 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
