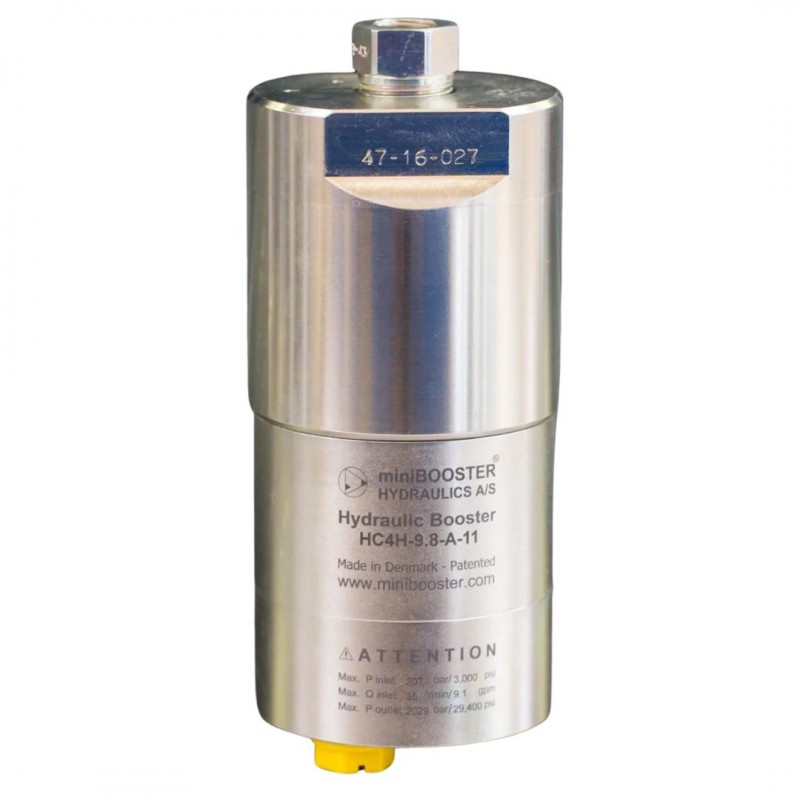

Minibooster HC4H
The HC4H is a very compact high-pressure unit capable of delivering pressure up to 3,000 bar weighing only 4.0 kg. It is ideal for use in portable applications like on power packs.
The HC4H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high- pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.
The HC4H is a very compact high-pressure unit capable of delivering pressure up to 3,000 bar weighing only 4.0 kg. It is ideal for use in portable applications like on power packs.
The HC4H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high- pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.
HC4H versions: 7 different intensification factors
P - IN: 20 – 207 bar
P - H: 3,000 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 4.0 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
