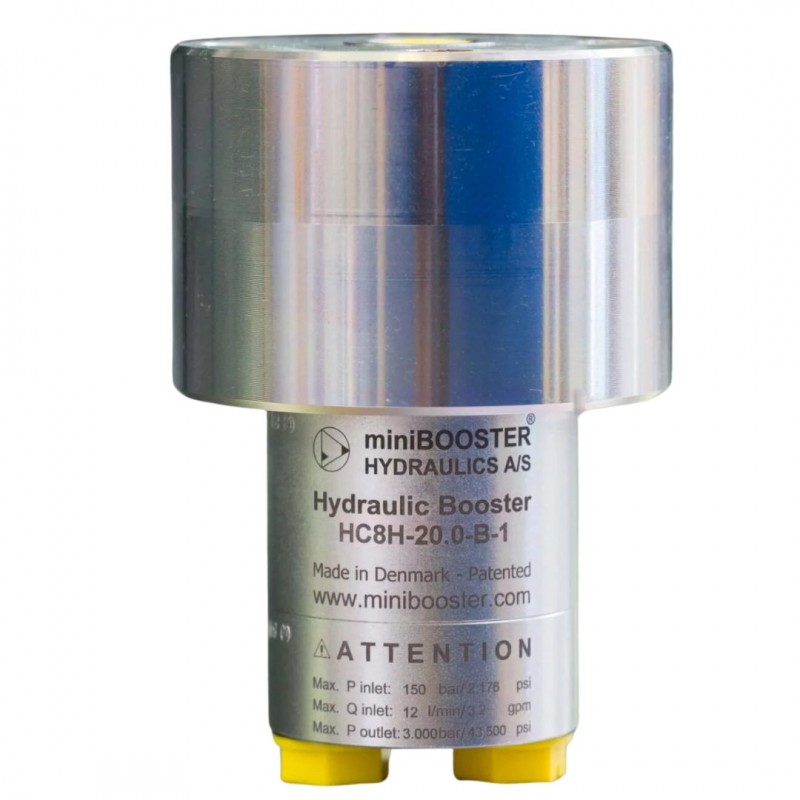

Minibooster HC8H
The HC8H is developed for applications where intensified pressure up to 3,000 bar are required. Operating like the HC2, the HC8H is a unique, self-contained device which boosts inlet pressure up to a 25:1 factor without the use of an external power source.
In addition, the HC8H maintains high pressure by automatically compensating for consumption of oil on the high-pressure side. High pressure is directly proportional to inlet pressure. The HC8H is a compact unit weighing 4.7 kg. The HC8H works at inlet pressure from 20 to 207 bar.
The HC8H is developed for applications where intensified pressure up to 3,000 bar are required. Operating like the HC2, the HC8H is a unique, self-contained device which boosts inlet pressure up to a 25:1 factor without the use of an external power source.
In addition, the HC8H maintains high pressure by automatically compensating for consumption of oil on the high-pressure side. High pressure is directly proportional to inlet pressure. The HC8H is a compact unit weighing 4.7 kg. The HC8H works at inlet pressure from 20 to 207 bar.
HC8H versions: 5 different intensification factors
P - IN: 20-207 bar
P - H: 3,000 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 4.7 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
