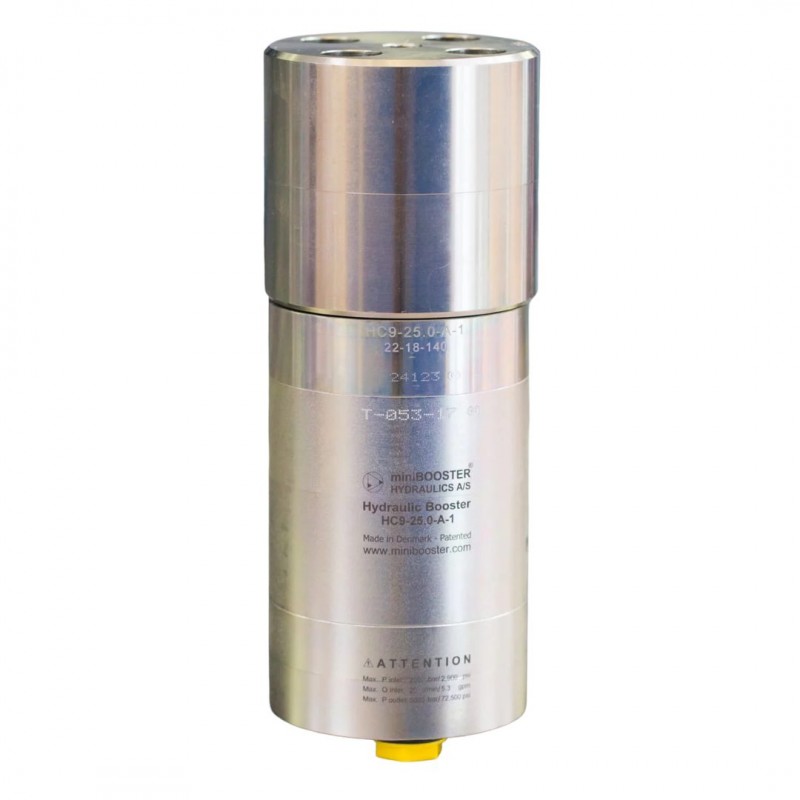

Minibooster HC9
The HC9 is an ultra high-pressure unit which is capable of delivering up to 5,000 bar and 0.4 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC9 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC9 is a compact unit weighing only 9.9 kg.
The HC9 is an ultra high-pressure unit which is capable of delivering up to 5,000 bar and 0.4 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC9 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC9 is a compact unit weighing only 9.9 kg.
HC9 version: 8 intensification factor
P - IN: 20 – 207 bar
P - H: 5,000 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 9.9 kg.
Model versions:
A model = no dump valve
B model = with dump valve, up to 3,000 bar
Material certificate 3.1 on request
