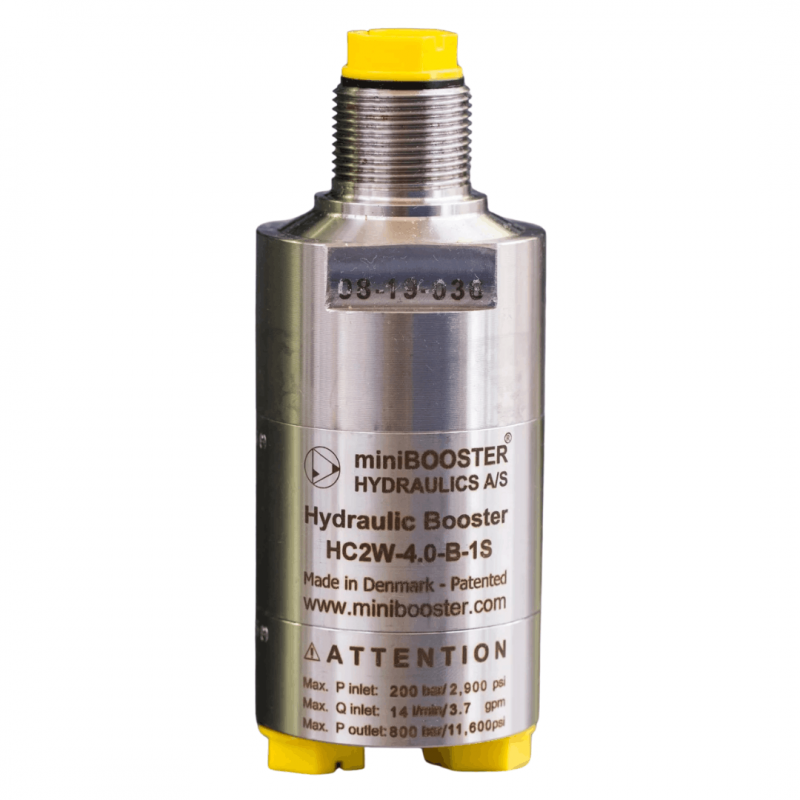

Minibooster HC2W
The HC2W is a compact miniBOOSTER stainless steel 316L steel unit weighing only 1.0 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.
The HC2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
The HC2W is a compact miniBOOSTER stainless steel 316L steel unit weighing only 1.0 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.
The HC2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
HC2W versions: 13 different intensification factors
P - IN: 20-207 bar
P - H: 800 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 1.0 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
