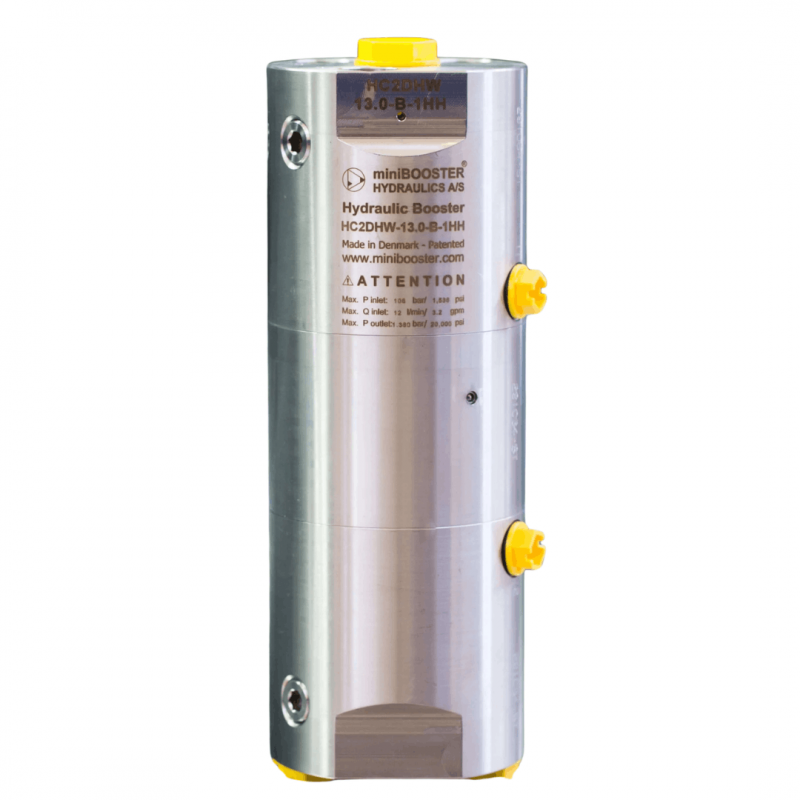

Minibooster HC2DHW
The HC2DHW is a dual-acting miniBOOSTER stainless steel 316L unit which is capable of delivering up to 5.0 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC2DHW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2DHW is a compact unit weighing 8.0 kg.
The HC2DHW is a dual-acting miniBOOSTER stainless steel 316L unit which is capable of delivering up to 5.0 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC2DHW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2DHW is a compact unit weighing 8.0 kg.
HC2DHW versions: 5 different intensification factors
P - IN: 20-207 bar
P - H: 1,380 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 8.0 kg.
Model versions:
A model = no dump valve
B model = with dump valve
Material certificate 3.1 on request
