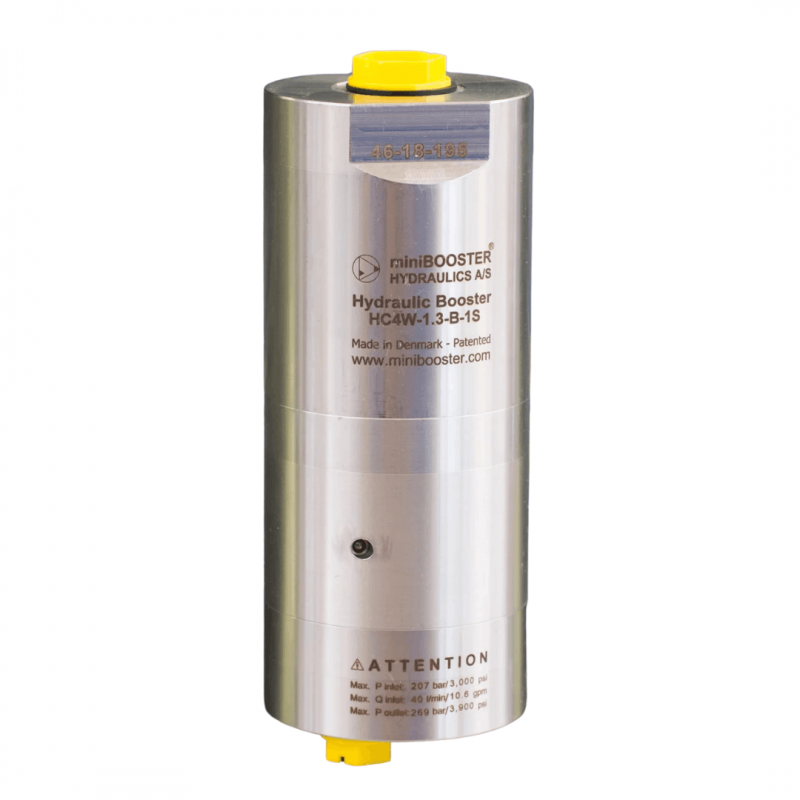

Minibooster HC4W
The HC4W is a compact miniBOOSTER stainless steel 316L unit weighing only 4.5 kg, but it delivers up to 7.0 l/min outlet flow. The HC4W is ideal for use in applications where a higher volume of high-pressure fluid is required.
Like the HC2W, it raises supplied pressure and automatically compensates for consumption of media to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure relative to its flow capability.
The HC4W is a compact miniBOOSTER stainless steel 316L unit weighing only 4.5 kg, but it delivers up to 7.0 l/min outlet flow. The HC4W is ideal for use in applications where a higher volume of high-pressure fluid is required.
Like the HC2W, it raises supplied pressure and automatically compensates for consumption of media to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure relative to its flow capability.
HC4W versions: 11 different intensification factors
P - IN: 20-207 bar
P - H: 800 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 4.5 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
