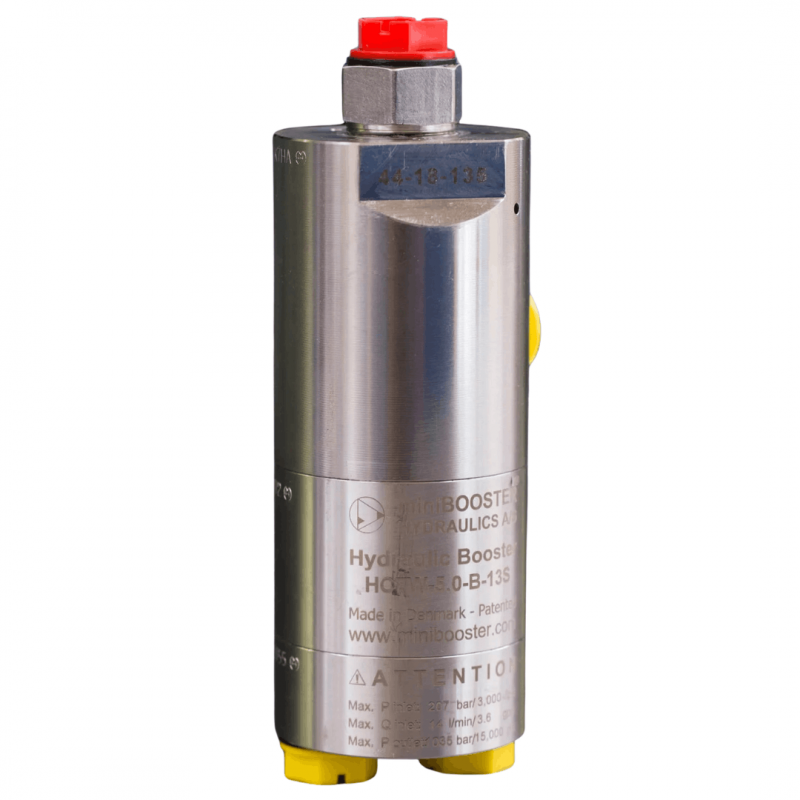

Minibooster HC7W
The HC7W is a very compact high-pressure miniBOOSTER stainless steel 316L unit capable of delivering pressure up to 2,000 bar weighing only 1.5 kg. It is ideal for use with very thin (low viscosity) medias. It is ideal for use in portable applications like on power packs.
The HC7W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of media to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high-pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port.
The HC7W is a very compact high-pressure miniBOOSTER stainless steel 316L unit capable of delivering pressure up to 2,000 bar weighing only 1.5 kg. It is ideal for use with very thin (low viscosity) medias. It is ideal for use in portable applications like on power packs.
The HC7W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of media to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high-pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port.
HC7W versions: 10 different intensification factors
P - IN: 20-207 bar
P - H: 2,000 bar maximum for media > 5 cSt (mm2/s)
P - H: 1,035 bar maximum for media < 5 cSt (mm2/s)
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 1.5 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
