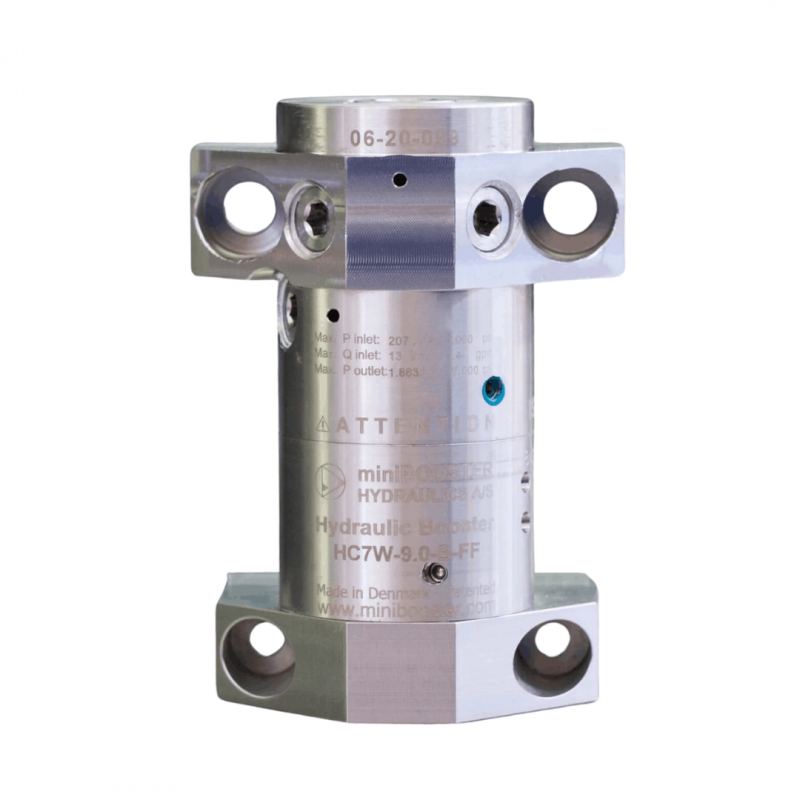

Minibooster HC7W-FF
The HC7W-FF is a very compact high-pressure miniBOOSTER stainless steel 316L unit capable of delivering pressure up to 2,000 bar weighing only 2.0 kg. The HC7W-FF is a variant of the HC7W for flange mounting on both high- and low pressure side. The entire pattern is a miniBOOSTER design. It is ideal for use with very thin (low viscosity) medias and for use in various applications like on power packs.
The HC7W-FF raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
The HC7W-FF is a very compact high-pressure miniBOOSTER stainless steel 316L unit capable of delivering pressure up to 2,000 bar weighing only 2.0 kg. The HC7W-FF is a variant of the HC7W for flange mounting on both high- and low pressure side. The entire pattern is a miniBOOSTER design. It is ideal for use with very thin (low viscosity) medias and for use in various applications like on power packs.
The HC7W-FF raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
HC7W-FF versions: 10 different intensification factors
P - IN: 20-207 bar
P - H: 2,000 bar maximum for media > 5 cSt (mm2/s)
P - H: 1,035 bar maximum for media < 5 cSt (mm2/s)
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Flange, manifold system miniBOOSTER pattern
Weight: 2.0 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
