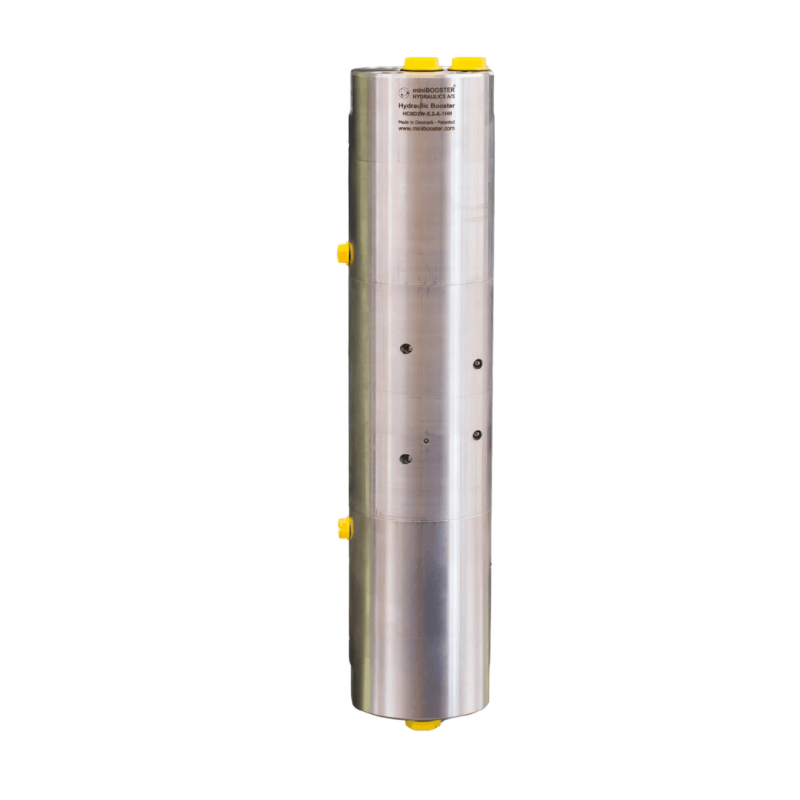

Minibooster HC9D2
The HC9D2 is a dual media unit which is capable of delivering up to 6.5 l/min flow on the high pressure end. Like other miniBOOSTER models, the HC9D2 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC9D2 is a compact unit weighing 25 kg.
The HC9D2 is a dual media unit which is capable of delivering up to 6.5 l/min flow on the high pressure end. Like other miniBOOSTER models, the HC9D2 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC9D2 is a compact unit weighing 25 kg.
HC9D2 versions: 5 different intensification factors
PIN:20 – 207 bar
PH: 1,380 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Drain connections: Max. 10 bar
Mounting: Inline tube
Weight: 25.0 KG
Model version:
A model = no dump valve
Material certificate 3.1 on request
