Minibooster HC9D2W

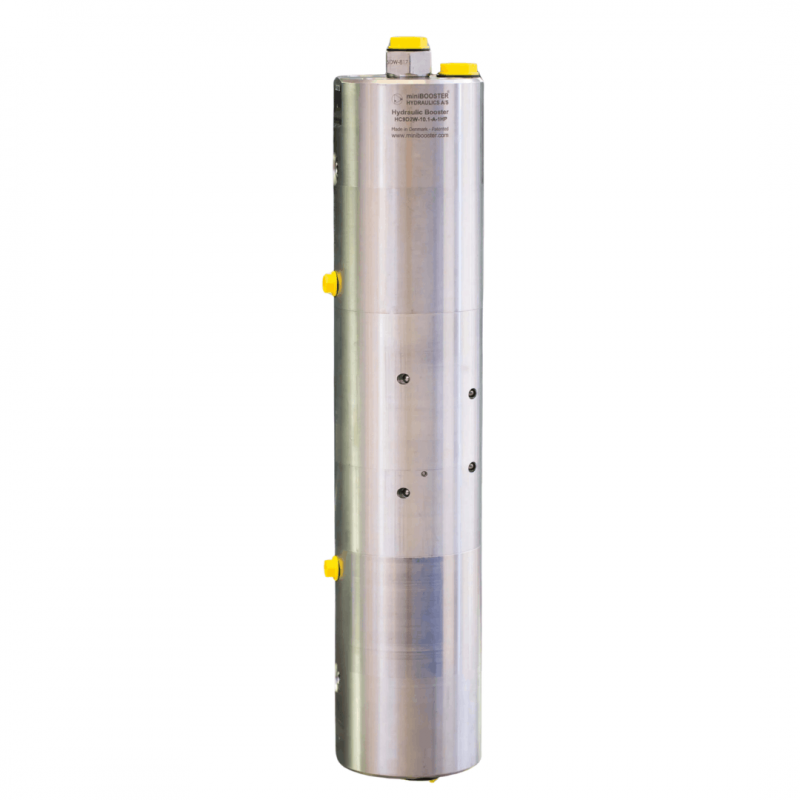

The HC9D2W is a dual media miniBOOSTER stainless steel 316L unit which is capable of delivering up to 6.5 l/min flow on the high pressure end. Like other miniBOOSTER models, the HC9D2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC9D2W is a compact unit weighing 25 kg.

HC9D2W versions: 5 different intensification factors

P - IN: 20 – 207 bar

P - H: 1,380 bar maximum

P - RETURN: As low as possible (return pressure to tank)

P - OUTLET: PH = (PIN – PRETURN) x intensification factor

Drain connections: Max. 10 bar

Mounting: Inline tube

Weight: 25.0 kg.

Model version:

A model = no dump valve

Material certificate 3.1 on request
