Minibooster HC1-9

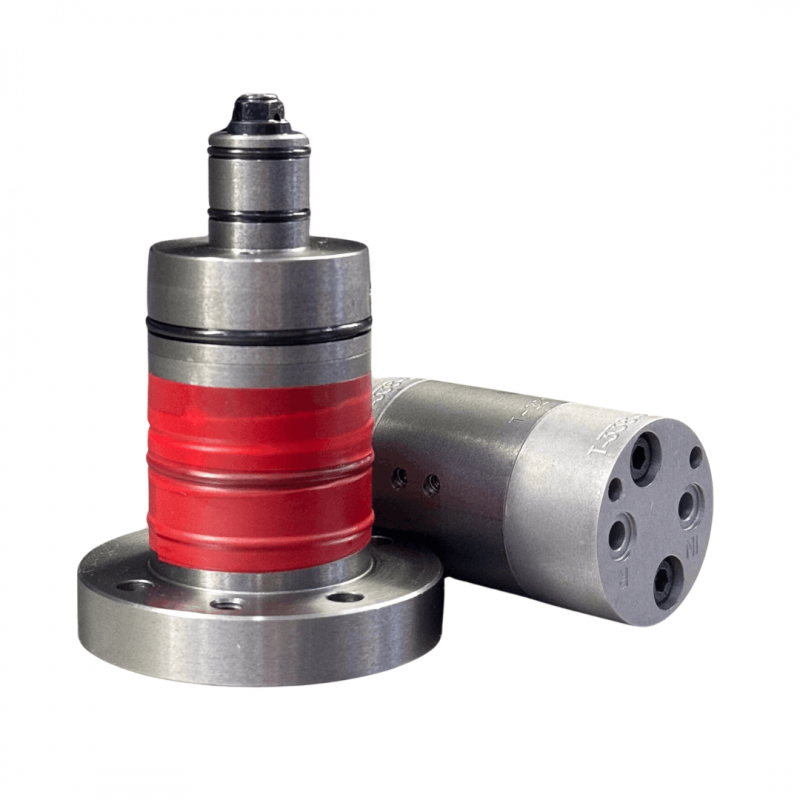

HC1-9 is a compact hydraulic cartridge miniBOOSTER unit weighing only 0.75 kg. It is ideal for use in applications where it is desirable to mount the unit on or in a manifold, cylinder, or other device.
The HC1-9 raises supplied pressure to a higher outlet pressure, maximum 500 bar, and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
HC1-9 is a compact hydraulic cartridge miniBOOSTER unit weighing only 0.75 kg. It is ideal for use in applications where it is desirable to mount the unit on or in a manifold, cylinder, or other device.
The HC1-9 raises supplied pressure to a higher outlet pressure, maximum 500 bar, and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
HC1-9 versions: 7 different intensification factors
P - IN: 20–207 bar
P - H: 500 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Cartridge
Weight: 0.75 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
