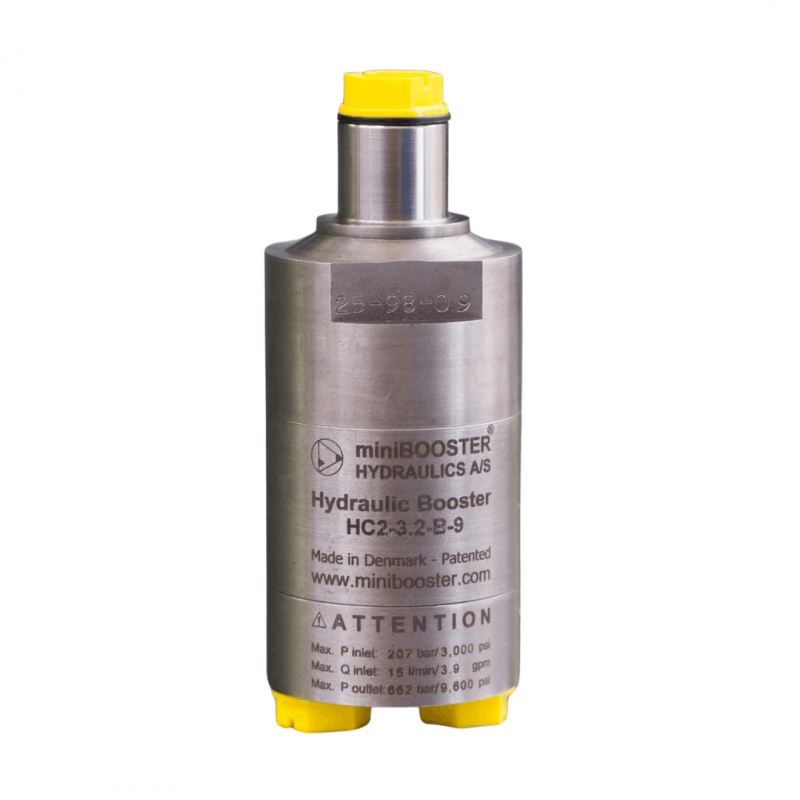

Minibooster HC2-9
HC2-9 is a compact hydraulic cartridge miniBOOSTER unit weighing only 1.0 kg. It is ideal for use in a variety of special applications where it is desirable to mount the unit on or in a manifold, cylinder, or other device.
The HC2-9 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
HC2-9 is a compact hydraulic cartridge miniBOOSTER unit weighing only 1.0 kg. It is ideal for use in a variety of special applications where it is desirable to mount the unit on or in a manifold, cylinder, or other device.
The HC2-9 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
HC2 versions: 15 different intensification factors
P - IN: 20–207 bar
P - H: 800 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Cartridge
Weight: 1.0 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
