Minibooster P3-HC6H

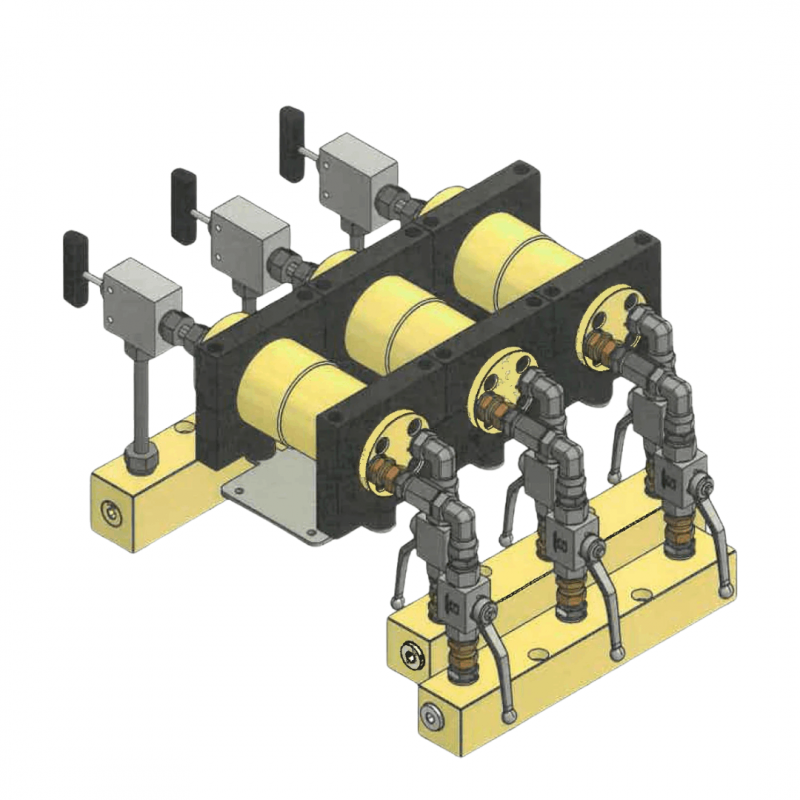

The P3-HC6H is an ultra high-pressure unit which is capable of delvering up to 4,135 bar. Consisting of three parallel mounted HC6H boosters, which is capable of delivering up to 20.1 l/min flow on the high-pressure end.
Like other miniBOOSTER models, the P3-HC6H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P3-HC6H is a compact unit weighting 82 kg.
The P3-HC6H is an ultra high-pressure unit which is capable of delvering up to 4,135 bar. Consisting of three parallel mounted HC6H boosters, which is capable of delivering up to 20.1 l/min flow on the high-pressure end.
Like other miniBOOSTER models, the P3-HC6H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P3-HC6H is a compact unit weighting 82 kg.
P3-HC6H versions: 8 different intensification factors
PIN: 20 – 207 bar
PH: 4,135 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 82.0 kg.
Model versions:
A model = no dump valve
B model = with dump valve, up to 3,000 bar
Material certificate 3.1 on request
