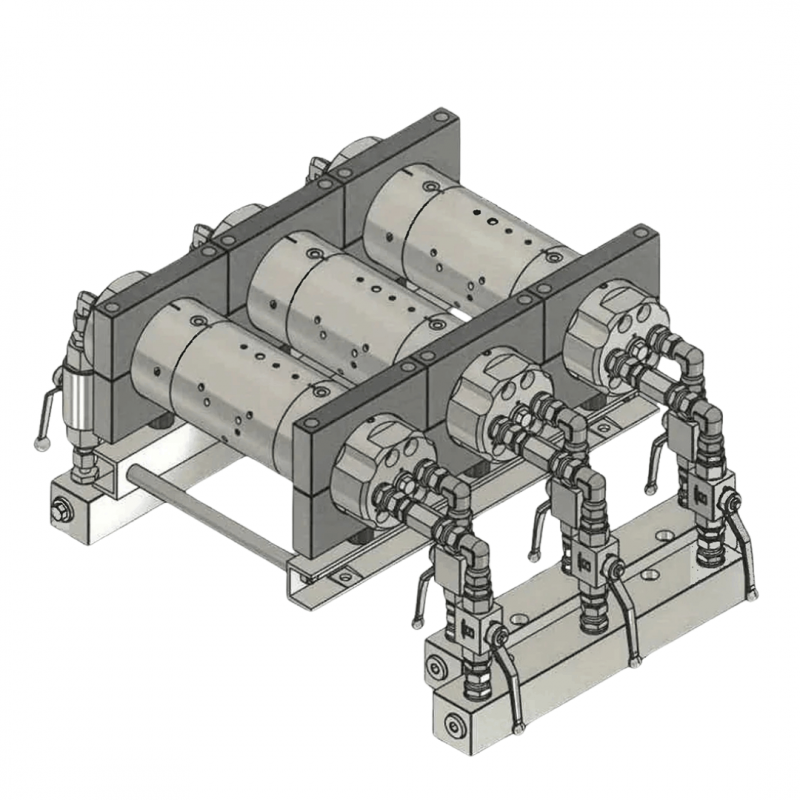

Minibooster P3W-HC6DW
The P3W-HC6DW is a high flow dual-acting miniBOOSTER stainless steel 316L unit which is capable of delivering up to 115.0 l/min flow on the high-pressure end. Like other miniBOOSTER models, the P3W-HC6DW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P3W-HC6DW is a compact unit weighing 160.0 kg.
The P3W-HC6DW is a high flow dual-acting miniBOOSTER stainless steel 316L unit which is capable of delivering up to 115.0 l/min flow on the high-pressure end. Like other miniBOOSTER models, the P3W-HC6DW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P3W-HC6DW is a compact unit weighing 160.0 kg.
P3W-HC6DW versions: 14 different intensification factors
P - IN: 20-207 bar
P - H: 800 bar maximum
P - RETURN: As low as possible (return pressure to tank)
P - OUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 160.0 kg.
Model versions:
A model = no dump valve
B model = with dump valve
Material certificate 3.1 on request
