Minibooster M-HC22

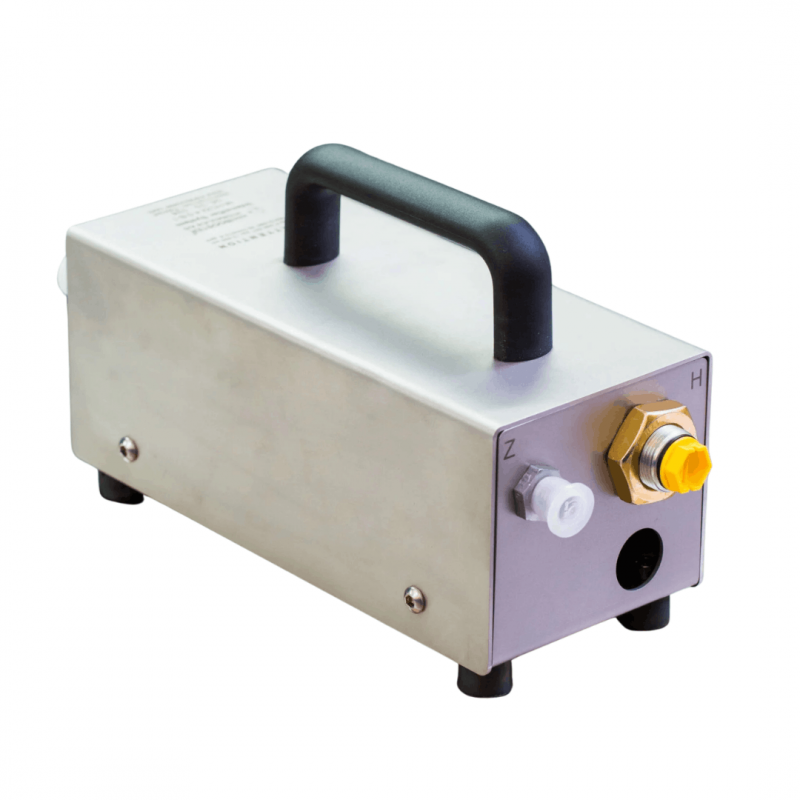

The M-HC22 is a compact field unit weighing only 5.0 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.

The M-HC22 raises supplied pressure to a higher outlet pressure and automatically compensates for oil consumption to maintain the high pressure.

The M-HC22 incorporates a Pressure Reducing Valve (PRV) to control inlet pressure to the booster section, and an optional orifice to reduce inlet flow to the maximum allowed for the intensification ratio selected.

The integrated Pressure Reducing Valve (PRV) protects both booster and high-pressure tool against too high pressure. It secures a stable high pressure regardless of changes in the tank line pressure.

M-HC22 versions: 13 different intensification factors

P - IN: 20 – 207 bar

P - H: 800 bar maximum

Q: Up to 40 l/min

P - RETURN: As low as possible (return pressure to tank)

P - OUTLET: PH = (PIN – PRETURN) x intensification factor

Weight: 5.0 kg.

Model versions:

A model = no dump valve

B model = with dump valve

G model = direct proportionally controlled

Material certificate 3.1 on request
