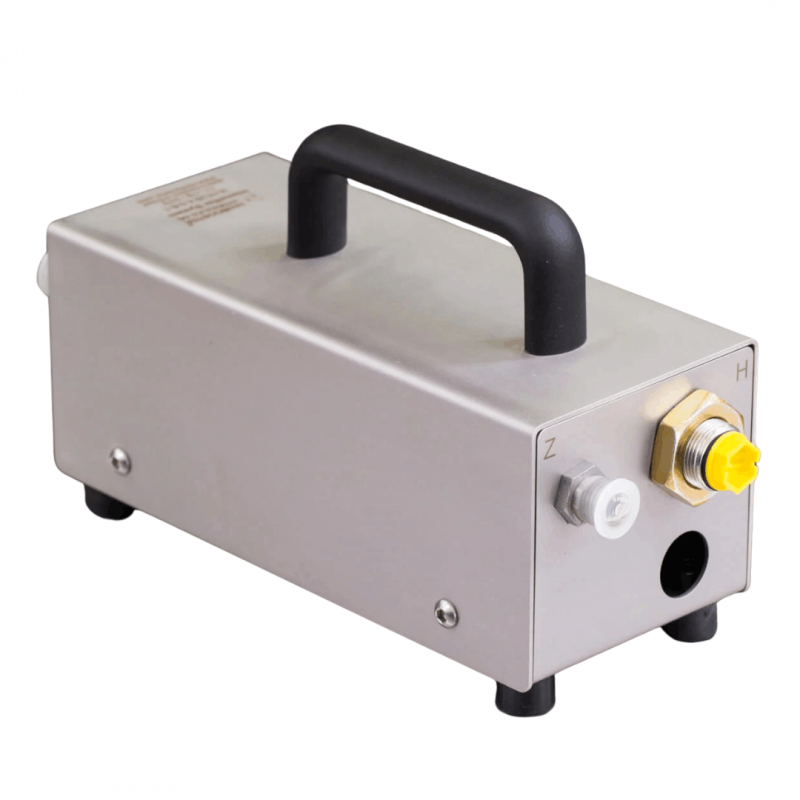

The M-HC25 is a compact field unit weighing only 5.0 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.

The M-HC25 incorporates a counterbalance valve, which allows fast-forward movement of a cylinder by directing the full inlet flow to pass directly through the booster section until the set pressure has been reached. Then the counterbalance valve opens, and the booster starts oscillating.

The M-HC25 booster will automatically stall when the high-pressure side H is reached. The booster will continuously compensate for oil consumption to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.

An optional orifice can be mounted in the booster to reduce inlet flow to the maximum allowed for the intensification ratio selected.

Versions: 13 different intensification factors

P - IN: 20 – 207 bar

P - H: 800 bar maximum

Q: Up to 40 l/min

P - RETURN: As low as possible (return pressure to tank)

P - OUTLET: PH = (PIN – PRETURN) x intensification factor

Weight: 5.0 kg.

Model versions:

A model = no dump valve

B model = with dump valve

Material certificate 3.1 on request
