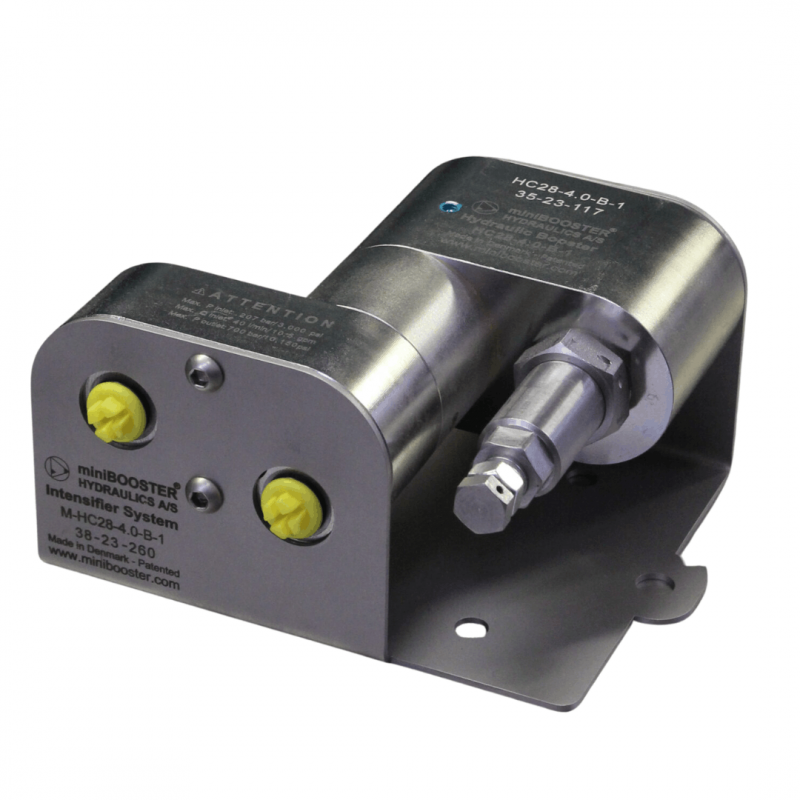

Minibooster M-HC28
The M-HC28 incorporates an adjustable pressure relief valve on the high pressure side. The pressure relief valve controls the maximum allowable pressure the system can output, allowing the booster to go for a higher end pressure producing flow at the decided pressure.
The M-HC28 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
An optional orifice can be mounted in both IN- and R-ports of the booster to prevent overspeeding.
The M-HC28 incorporates an adjustable pressure relief valve on the high pressure side. The pressure relief valve controls the maximum allowable pressure the system can output, allowing the booster to go for a higher end pressure producing flow at the decided pressure.
The M-HC28 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
An optional orifice can be mounted in both IN- and R-ports of the booster to prevent overspeeding.
M-HC28 versions: 15 different intensification factors
PIN: 20–207 bar
PH: 800 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 3.6 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
