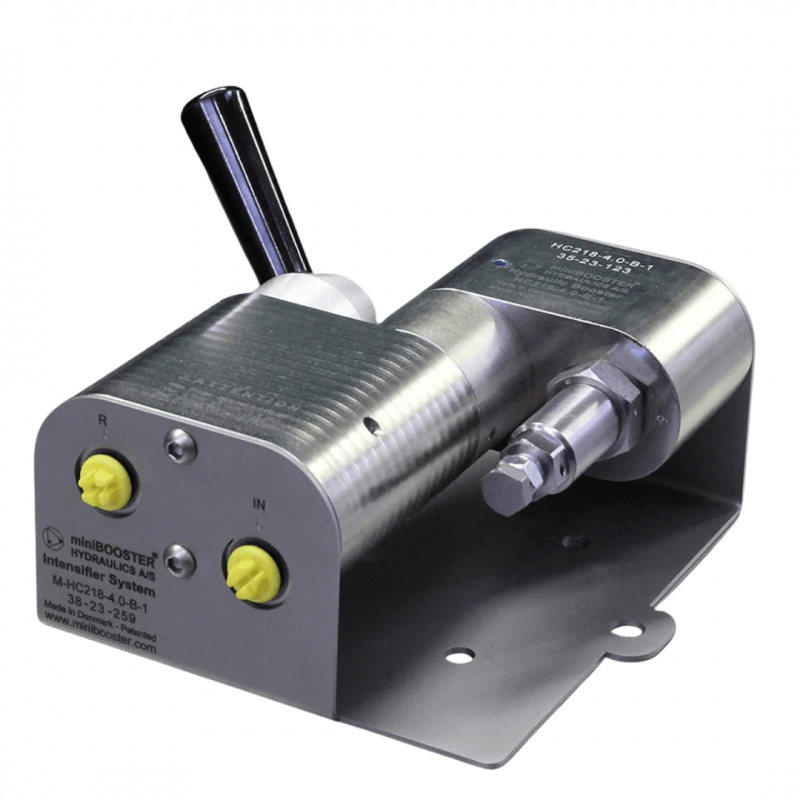

Minibooster M-HC218

The M-HC218 is a compact unit weighing only 5.6 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.

The M-HC218 incorporates an adjustable pressure relief valve on the high pressure side. The pressure relief valve controls the maximum allowable pressure the system can output, allowing the booster to go for a higher end pressure producing flow at the decided pressure.

The M-HC218 also incorporates manual directional valve (DCV) to control inlet pressure to the booster section. Solenoid valves are also available on request.

The M-HC218 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.

An optional orifice can be mounted in both IN- and R-ports of the booster to prevent overspeeding.

M-HC218 versions: 15 different intensification factors

PIN: 20–207 bar

PH: 800 bar maximum

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PRETURN) x intensification factor

Mounting: Inline tube

Weight: 5.6 kg.

Model versions:

A model = no dump valve

B model = with dump valve

Material certificate 3.1 on request
