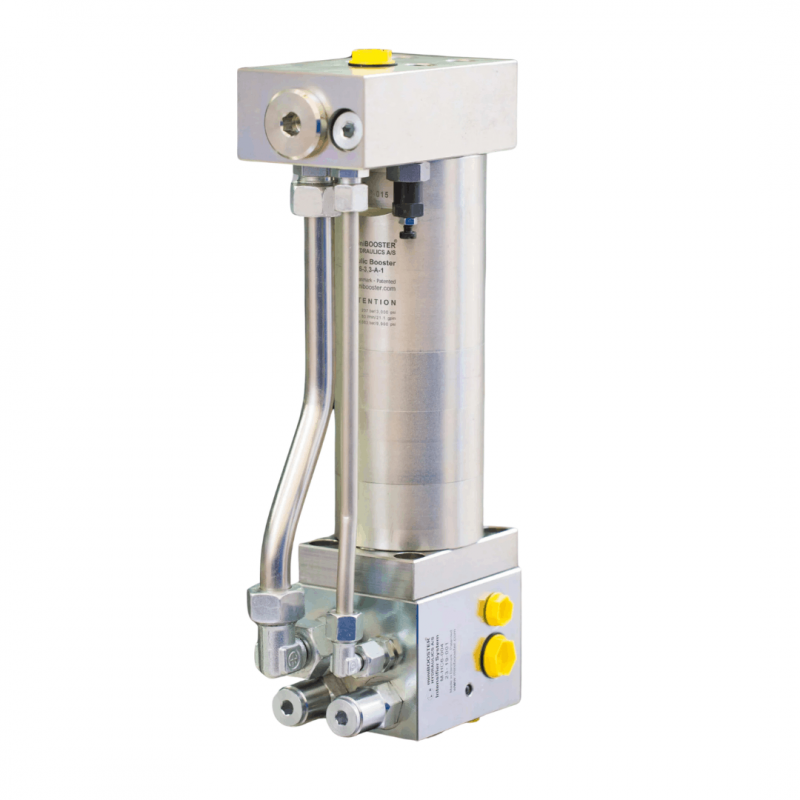

Minibooster M-HC6
The M-HC6 is a complete, ready-to-install, high-flow and high-pressure intensifier system. The system is based on the miniBOOSTER HC6 intensifier and includes integral high-flow bypass and isolation valves.
The intensifier system M-HC6-004 also includes a relief valve on the HP-side.
The system is ideal for mobile attachments to take full advantage of the pump capacity for fast-forward movement of the hydraulic cylinder(s) and to boost pressure, when needed to achieve intensified (crushing/clamping) pressures.
The M-HC6 intensifier system can be tailor-made to match your application.
The M-HC6 is a complete, ready-to-install, high-flow and high-pressure intensifier system. The system is based on the miniBOOSTER HC6 intensifier and includes integral high-flow bypass and isolation valves.
The intensifier system M-HC6-004 also includes a relief valve on the HP-side.
The system is ideal for mobile attachments to take full advantage of the pump capacity for fast-forward movement of the hydraulic cylinder(s) and to boost pressure, when needed to achieve intensified (crushing/clamping) pressures.
The M-HC6 intensifier system can be tailor-made to match your application.
Automatically activated (sequence valve)
Flexible design; several intensification factors
Multiple connection possibilities
Extended service life
Robust design
PIN: 20 – 300 bar
PH: 500 bar maximum
Q: 100 L/min
Weight: 23.0 kg.
