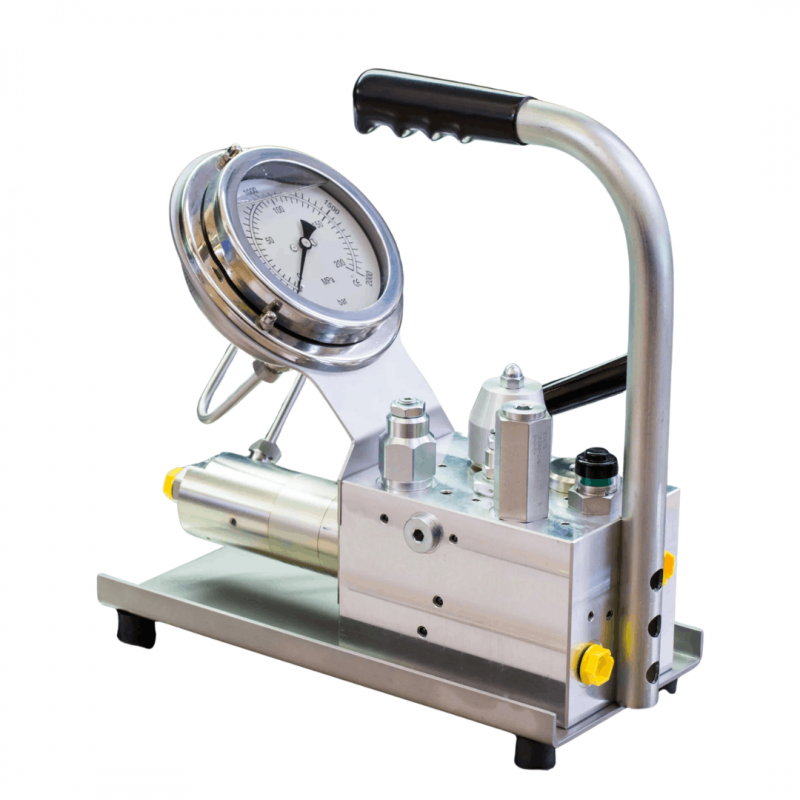

Minibooster M-HC7

The miniBOOSTER Portable Intensifier System M-HC7 is a rugged unit designed for demanding industrial applications. The M-HC7 can be used with any low-pressure, from 20 to 350 bar, power source providing a minimum flow of 2 l/min. Output pressure as high as 2,000 bar.

Reliability is a primary design consideration. The M-HC7 is equipped with a 12-micron filter and a visual filter condition indicator. Service life is extended and down-time avoided.

Portable and easy to operate

Reliable and simple performance

Flexible design; several intensification factors

Multiple connection possibilities

Extended service life

Robust design

PIN: 20 – 350 bar

PH: Up to 2,000 bar maximum

Q: Up to 40 l/min

Weight: 10.0 kg.
