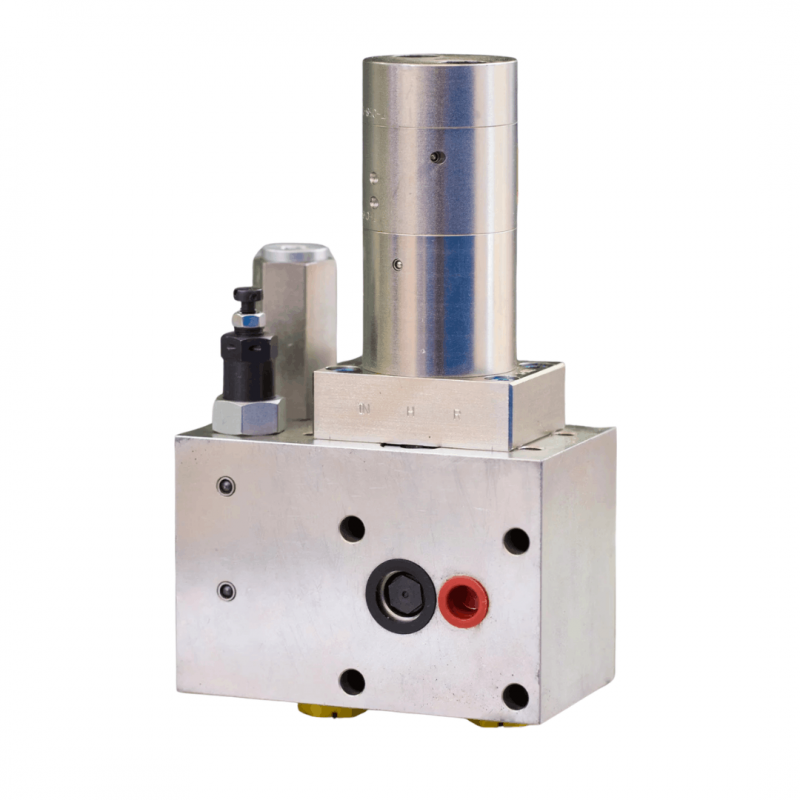

Minibooster M-HC-011
The M-HC-011 In-line Intensifier System is designed to boost the hydraulic pressure from the pump to the workload. It operates only when needed, to save energy.
M-HC-011 is provided with four mounting holes for through bolt installation. The four connection ports are placed logically in pairs and in line of each other on the HIC block. All surfaces are electroplated for good protection and fine surface finish.
The M-HC-011 In-line Intensifier System is designed to boost the hydraulic pressure from the pump to the workload. It operates only when needed, to save energy.
M-HC-011 is provided with four mounting holes for through bolt installation. The four connection ports are placed logically in pairs and in line of each other on the HIC block. All surfaces are electroplated for good protection and fine surface finish.
Solenoid activated
High pressure – up to 700 bar (10,000 psi)
Max. inlet pressure = 207 bar (3,000 psi)
Fast fill – system flows up to 100 l/min
Extended service life
Robust design
Flexible design; several boosters/intensification factors
