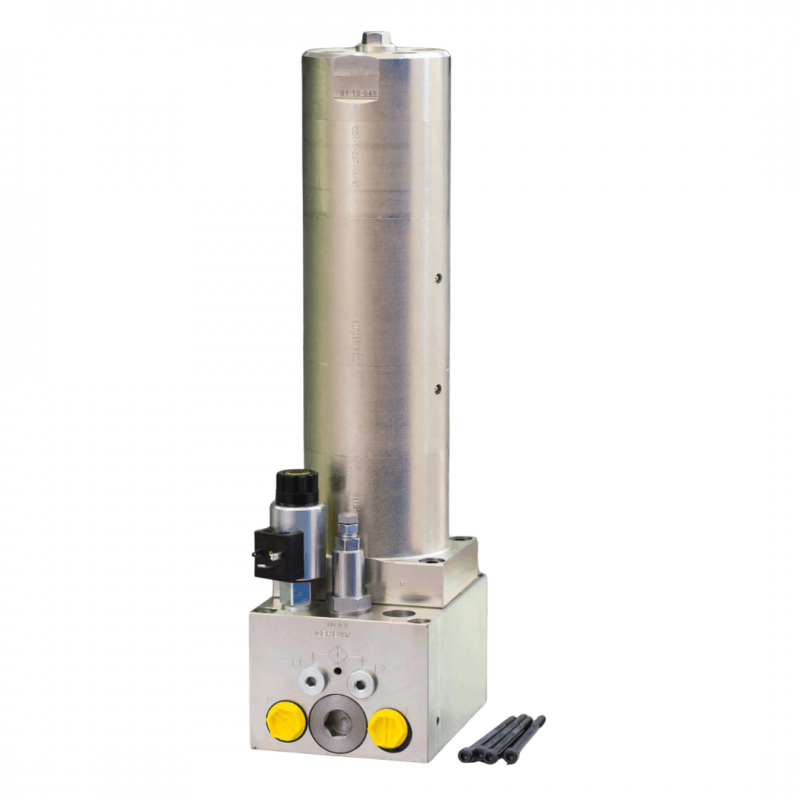

The M-HC-012 In-line Intensifier System is designed to boost the hydraulic pressure from the pump to the workload. The system operates by solenoid activation. The operator is in full control of the system and can decide if a boosted pressure to the workload should be applied.
M-HC-012 is provided with four mounting holes for through bolt installation. The four connection ports are placed logically in pairs and in line of each other on the HIC block. All surfaces are electroplated for good protection and fine surface finish.
The M-HC-012 In-line Intensifier System is designed to boost the hydraulic pressure from the pump to the workload. The system operates by solenoid activation. The operator is in full control of the system and can decide if a boosted pressure to the workload should be applied.
M-HC-012 is provided with four mounting holes for through bolt installation. The four connection ports are placed logically in pairs and in line of each other on the HIC block. All surfaces are electroplated for good protection and fine surface finish.
Pressure on demand
Solenoid activated
High pressure – up to 700 bar (10,000 psi)
Max. inlet pressure = 207 bar (3,000 psi)
Fast fill – system flows up to 100 l/min
Extended service life
Robust design
Flexible design; several boosters/intensification factors
