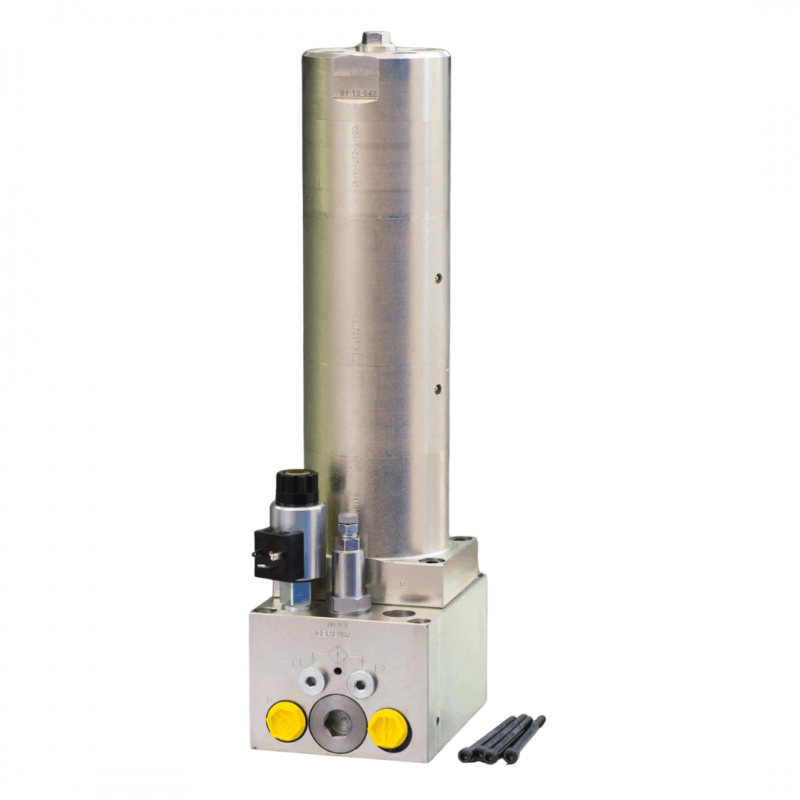

Minibooster M-HC-013
The M-HC-013 In-line Intensifier System is designed to boost the hydraulic pressure from the pump to the workload. It operates only when needed, to save energy.
M-HC-013 is provided with four mounting holes for through bolt installation. The four connection ports are placed logically in pairs and in line of each other on the HIC block. All surfaces are electroplated for good protection and fine surface finish.
The M-HC-013 In-line Intensifier System is designed to boost the hydraulic pressure from the pump to the workload. It operates only when needed, to save energy.
M-HC-013 is provided with four mounting holes for through bolt installation. The four connection ports are placed logically in pairs and in line of each other on the HIC block. All surfaces are electroplated for good protection and fine surface finish.
Automatically activated (sequence valve)
High pressure – up to 700 bar (~10,000 psi)
Max. inlet pressure = 350 bar (~5,000 psi)
Fast fill – system flows up to 400 l/min
Adjustable outlet pressure
Extended service life
Robust design
Flexible design; several boosters/intensification factors
Switch from by-pass to intensified flow
