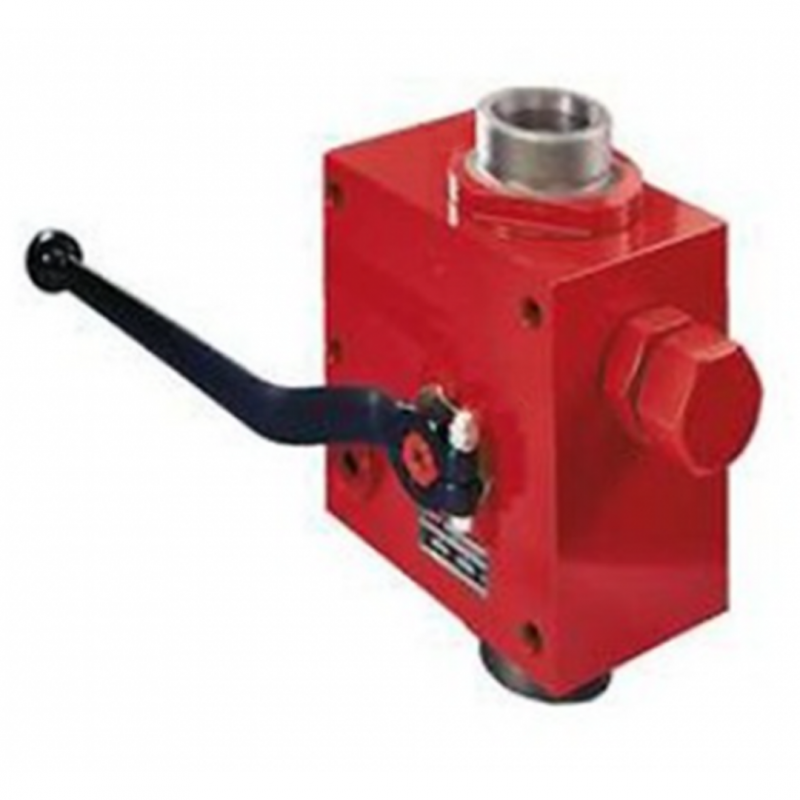

Hydac Charging and Testing Blocks F+P
Charging and testing blocks F+P are used to charge and test back-up type hydraulic accumulators
- Max. operating pressure: up to 400 bar
- Nominal size: DN16 / DN32
The HYDAC Charging and Testing Block F+P (DN16/DN32, up to 400 bar) is designed for charging and testing back-up type hydraulic accumulators. With ports for FPU-1 units and pressure gauges, it offers optimized dimensions, optional integration of a GSV6 gas safety valve, and shut-off capability for nitrogen bottles ensuring safe, efficient system operation.
HYDAC Charging and Testing Blocks F+P
- Max. operating pressure: up to 400 bar
- Nominal size: DN16 / DN32
- Materials: carbon steel, stainless steel
- Optimised dimensions
General Function:
The HYDAC charging and testing block F+P is used to charge and test back-up type hydraulic accumulators. It has connections for the charging and testing unit FPU-1 and for pressure gauges. As a safety function, a gas safety valve GSV6 can be fitted. In addition, it allows the back-up nitrogen bottles to be shut off from the hydraulic accumulator.
