Hydac Safety and Shut-off Blocks DSV
Safety and shut-off blocks DSV is used to isolate and discharge hydraulic accumulators
- NG = 10
- pmax = 350 bar
- simpler version of the SAF 10
The HYDAC Safety and Shut-off Block DSV10 (NG 10, pmax 350 bar) is a cost-effective, simplified alternative to the SAF10, designed for isolating and discharging hydraulic accumulators and consumers. This compact three-way valve block integrates a pressure relief valve and shut-off valve, with optional solenoid control for automatic discharge. Ideal for space-saving and efficient setups, it simultaneously shuts off and discharges to the tank, streamlining hydraulic system safety.
HYDAC Safety and Shut-off Blocks DSV
- NG = 10
- pmax = 350 bar
- simpler version of the SAF 10
The three-way safety block DSV10 is used to isolate and discharge hydraulic accumulators and consumers
The DSV10 can be used as a cost effective alternative to the SAF10. Unlike the SAF10, the DSV10 shuts off when discharging simultaneously to the tank
Design:

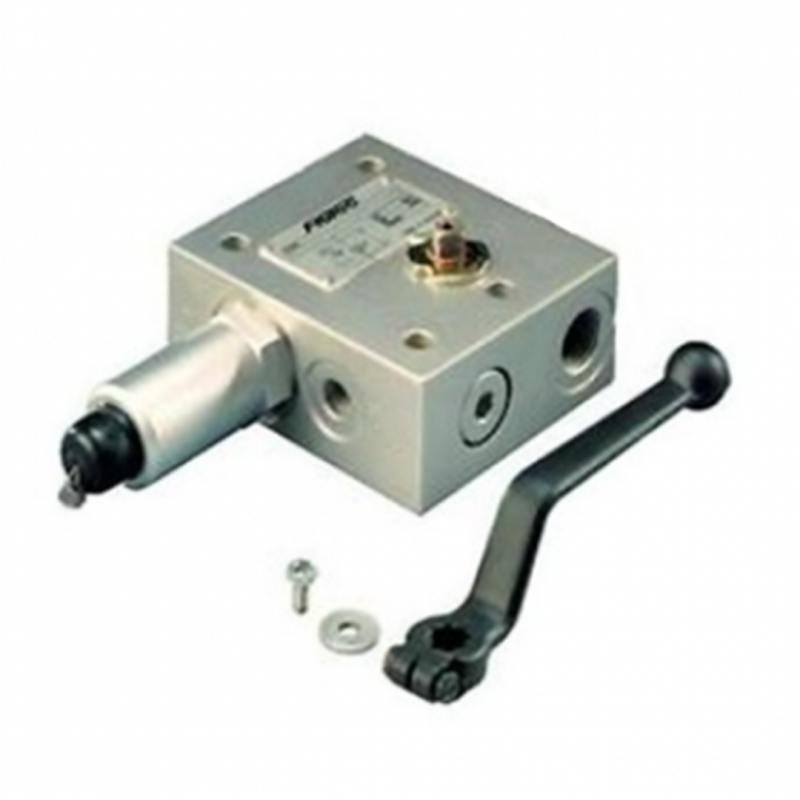

The DSV three-way safety block consists of a valve block with an integrated pressure relief valve and the shut-off valve. It has ports for the pump, pressure gauge, tank and accumulator. In addition, an optional solenoid-operated 2-way directional valve allows automatic discharge of the accumulator or consumer.
