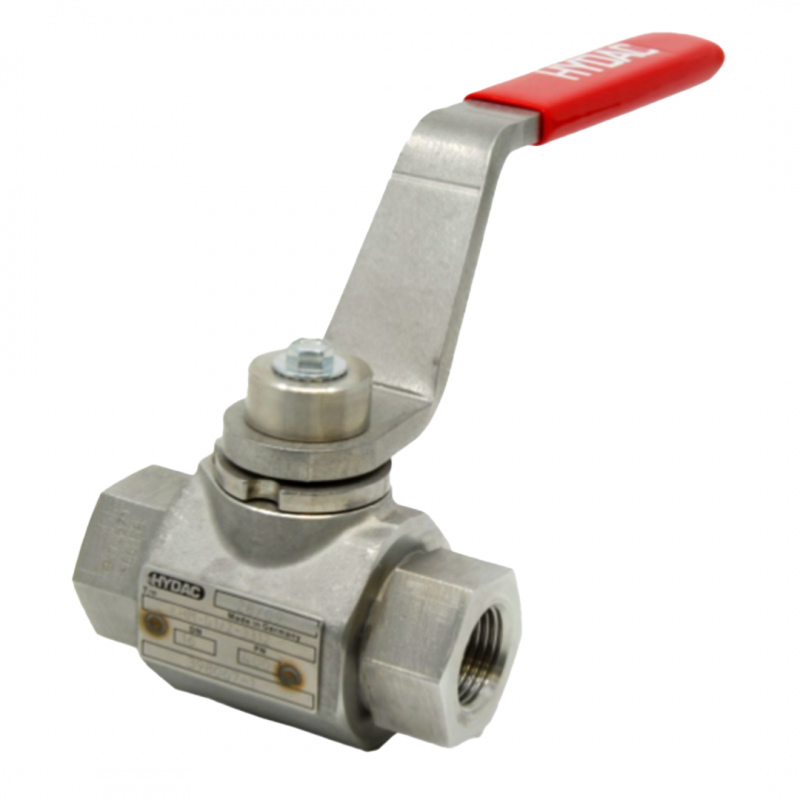

Hydac Ball Valves Type KHB and KHM
HYDAC KHB and KHM 2/2-way ball valves are designed according to DIN-ISO 1219 to shut off pressure flow in both directions. Available in block-type and sleeve-type models, they offer reliable sealing, full-flow performance, and are suitable for a wide range of fluid applications, including aggressive or gaseous media.
Key Features:
- Glandless design eliminates need for manual seal adjustment
- Floating ball ensures sealing on both sides
- Full-flow passage allows unrestricted media flow
HYDAC Ball Valves Type KHB and KHM
HYDAC 2/2-way ball valves are, according to DIN-ISO 1219, components which are used to shut-off a pressure flow in both directions
HYDAC 2/2-way ball valves are available in 2 models...
From the nominal diameter of 04 mm to 25 mm in block-type and starting with the nominal diameter of 32 mm up to 50 mm in sleeve-type. The stainless steel version always appears in sleeve-type due to materials considerations
Advantages:
- No manual readjustment of seals, because glandless
- Sealing principle with floating ball, sealing on both sides
- Full-flow passage to ensure unrestricted flow of the medium
- Surface protection phosphate-plated or yellow zinc-plated
On request we can supply other models to cover nearly all applications, e.g. for aggressive or gaseous media
If required, test certificates for material tests to EN-10204 and quality test certificates to DIN 55350 Part 18 can be supplied
