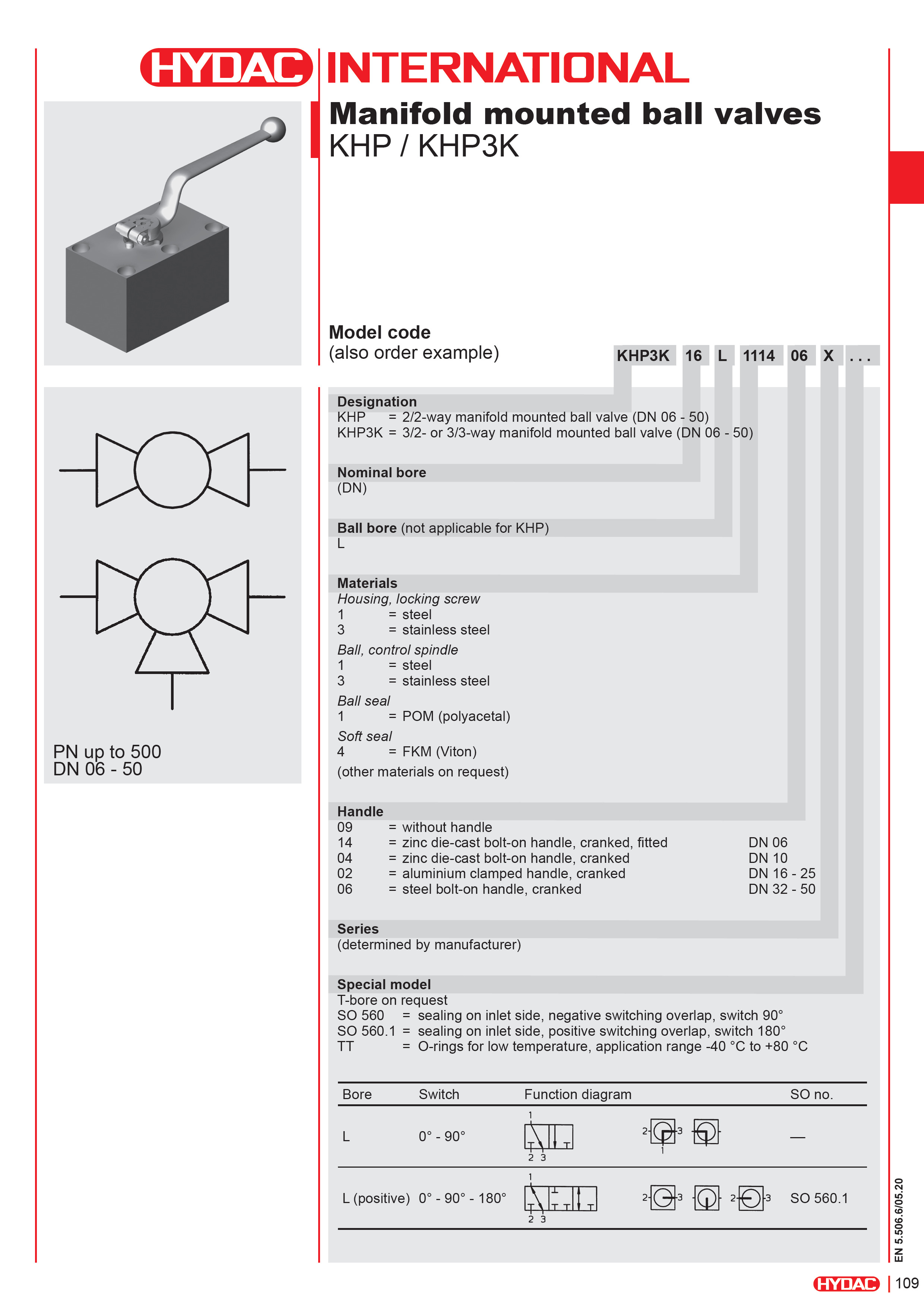

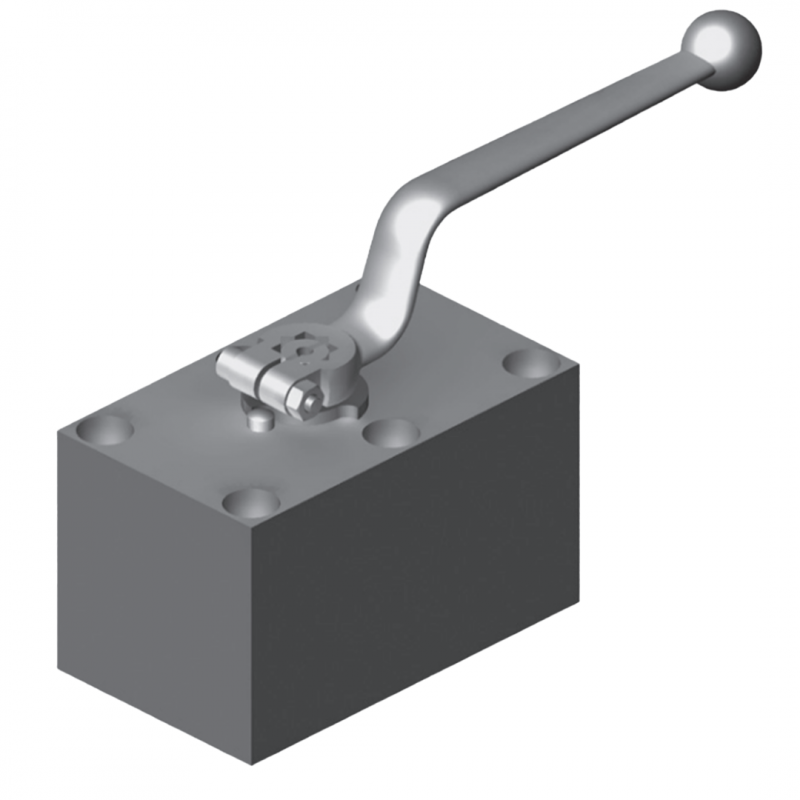

Hydac Ball Valves for Manifold Block Mounting Type KHP
HYDAC KHP manifold block mounting ball valves are compact 2/2-way valves designed for high-pressure applications up to 500 bar and DN 50. They offer precise switching, reliable sealing, and are ideal for space-saving hydraulic system integration.
Key Features:
- Visual slot shows switching position
- Stop pin and disc ensure defined switching limits
- Glandless design eliminates seal re-adjustment
- Floating ball seals on the outlet side
Description
Downloads
HYDAC Ball Valves for Manifold Block Mounting Type KHP
- Up to 500 bar
- Up to DN 50
Advantages:
- Visual indication of switching position by means of a slot on the control spindle
- Switching limited by means of stop pin and stop disc
- No glands, therefore no manual re-adjustment of seals required
- Sealing principle with floating ball, sealing on outlet side
- Full flow passage for unrestricted flow of medium
- Easy operation
- Surface phosphate-plated
Flute manifold mounting ball valves are available in stainless steel
