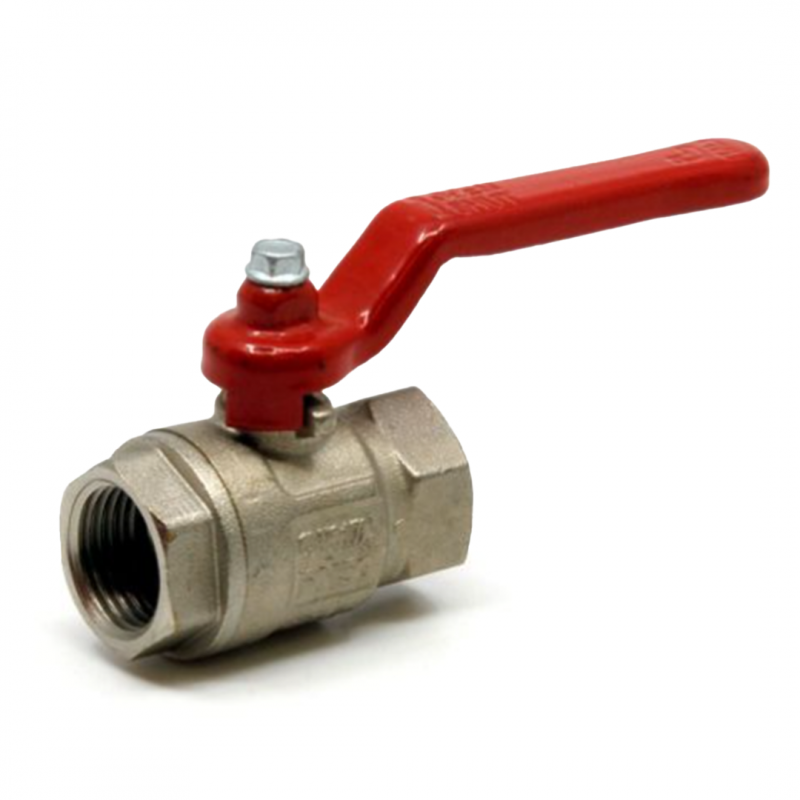

Hydac 2-Way Low Pressure Ball Valves Type KHNVN / KHNVS / KHN
HYDAC KHNVN, KHNVS, and KHN low-pressure 2/2-way ball valves are built to DIN-ISO 1219 standards for reliable shut-off in both flow directions. Designed for ambient and media temperatures up to 150 °C and pressures up to PN 50, they are available in standard and heavy-duty threaded models with optional actuator, lock, or limit controls.
Key Features:
- Glandless design removes need for seal adjustment
- Floating ball provides sealing on both sides
- Full-flow passage enables unrestricted media flow
Description
Downloads
HYDAC 2-Way Low Pressure Ball Valves Type KHNVN / KHNVS / KHN
- Ambient temperature: -20 °C to + 150 °C
- Nominal pressure: up to PN 50
- Temperature of operating media: -20 °C to + 150 °C
HYDAC 2/2-way low pressure ball valves are, according to DIN-ISO 1219, components which are used to shut-off a pressure flow in both directions
All ball valves can be supplied with the following options:
- Actuator
- Limit controls
- Lock
HYDAC 2/2-way low-pressure ball valves are available in 2 models:
- Standard model with thread to ISO 228
- Heavy-duty model with thread to ISO 7/1
Advantages :
- No glands, therefore no manual readjustment of seals required
- Sealing principle with floating ball, sealing on both sides
- Full-flow passage to ensure unrestricted flow of the medium
