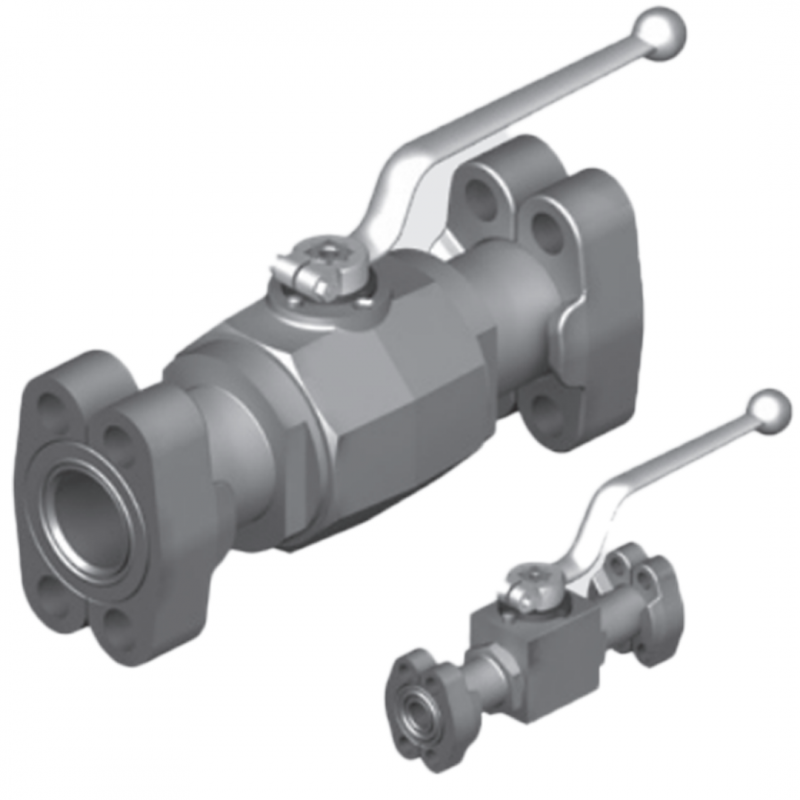

Hydac SAE Flanged 2-Way Ball Valves Type KHB-F3 /6 and KHM-F3 /6
Engineered for durability and optimal flow, HYDAC’s KHB-F3/6 (block type) and KHM-F3/6 (sleeve type) 2-way ball valves are ideal for high-pressure hydraulic applications up to PN 420. Designed for ease of installation and operation, these valves offer full flow performance with visual switching indication and long-lasting, maintenance-free sealing.
Key Features:
- Full flow passage with floating ball for outlet-side sealing
- Visual switching indication and mechanical stops for safe operation
- SAE split flange design for easy, leak-proof installation
Description
Downloads
HYDAC SAE Flanged 2-Way Ball Valves Type KHB-F3/6 & KHM-F3/6
- PN up to 420
- DN up to 50
- Block type: KHB
- Sleeve type: KHM
- Temperature of operating fluid: -10 °C to +80 °C
Seal kits available on request
Advantages:
- Visual indication of the switching position by means of a slot on the control spindle
- Switching limited by means of stop pin and stop disc
- No glands, therefore no manual re-adjustment of seals required
- Sealing principle with floating ball, sealing on the outlet side
- Full flow passage for unrestricted flow of medium
- Easy operation
- Easy fitting due to SAE split flanges
- O-ring sealing on both sides
- Surface phosphate-plated
Other models to cover nearly all applications available on request
Example of areas of application:
- Pipeline construction
- Machine tools
- System engineering
- Off-shore sector
