Hydac SAE Threaded Flanged 2-Way Ball Valves Type KHBG-F3/6 and KHMG-F3/6
Built for high-pressure systems up to PN 420 (6000 PSI), HYDAC's KHBG-F3/6 (block type) and KHMG-F3/6 (sleeve type) 2-way ball valves offer secure SAE threaded flange connections with full flow and dual-side sealing. Designed according to ISO 6162 / SAE J518c standards, they ensure reliable performance in demanding hydraulic applications.
Key Features:
- Dual-side floating ball sealing with full flow passage
- SAE threaded flange design with rotatable connections for flexible installation
- Visual switching position indicator and mechanical stops for safe operation
Description
Downloads

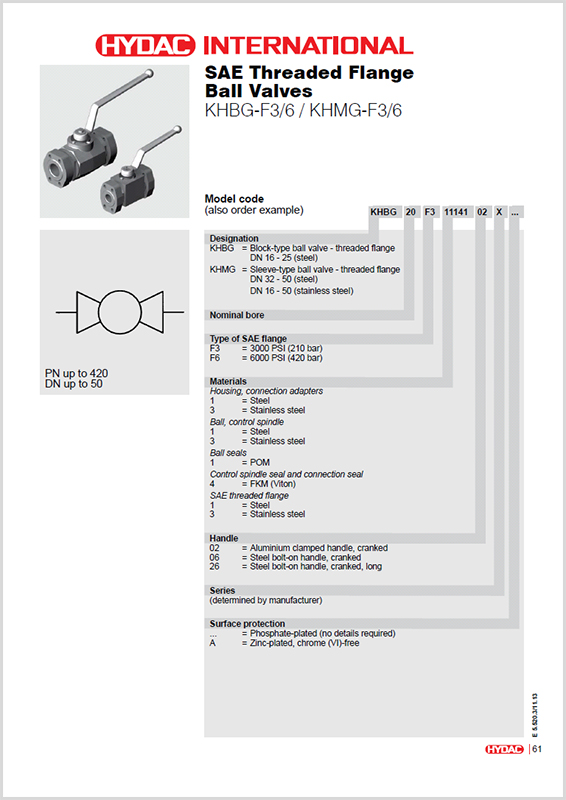

HYDAC SAE Threaded Flanged 2-Way Ball Valves Type KHBG-F3/6 and KHMG-F3/6
- Temperature of operating fluid: -10 °C to +80 °C
- Ambient temperature: -10 °C to +80 °C
- Nominal pressure: Up to PN 420/6000 PSI

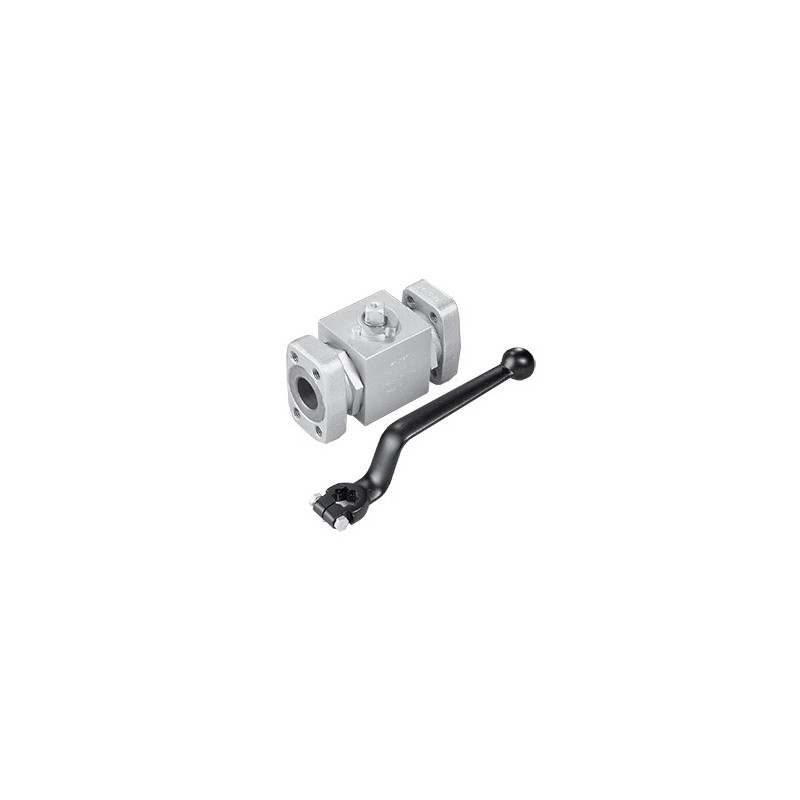

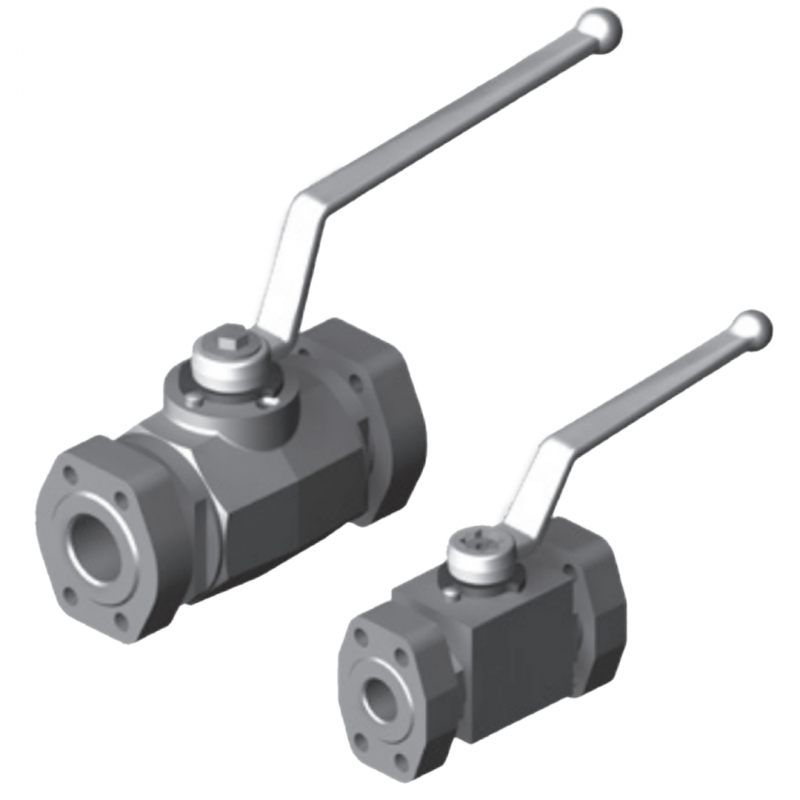

- Type of construction: Block type KHBG DN 16 – 25
- Sleeve type KHMG DN 32 – 50
- Type of connection: ISO 6162, Table 1 and 2 (SAE J 518 c)
- Flange connections: SAE threaded flange
- Mounting position: Optional
- Operating fluids: Mineral oil to DIN 51524 part 1 and part 2 (other fluids on request)
Seal kits available on request
Advantages:
- Visual indication of the switching position by means of a slot on the control spindle
- Switching limited by means of stop pin and limit disc
- No glands, therefore no manual re-adjustment of seals required
- Sealing principle with floating ball, sealing on both sides
- Full flow passage for unrestricted flow of medium
- SAE threaded flange can be rotated
- Easy operation
- Surface phosphate-plated
Areas of application are for example:
- Pipeline construction
- Machine tools
- System engineering
- Off-shore sector
