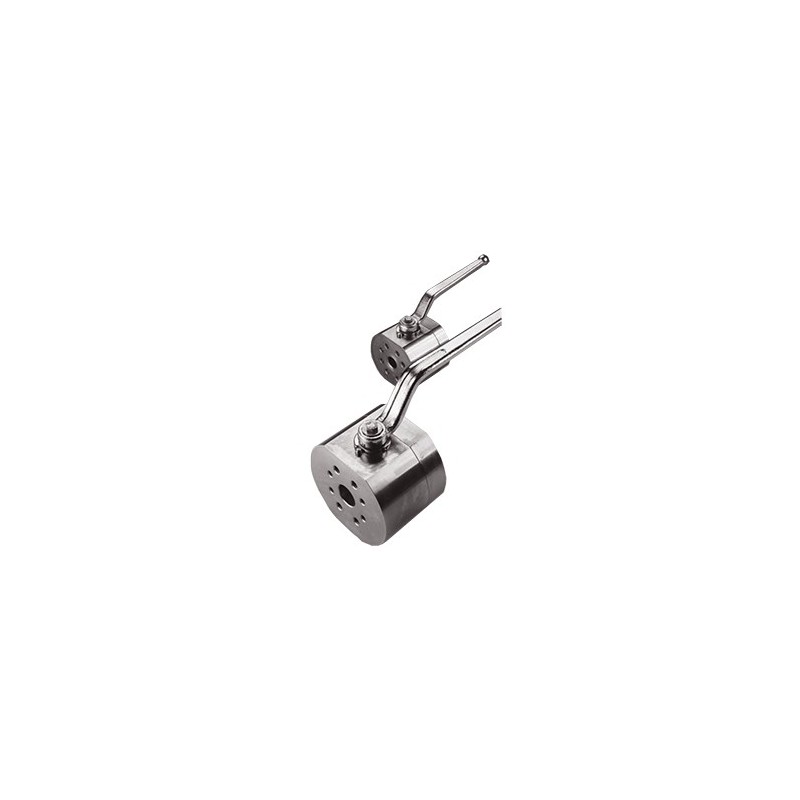

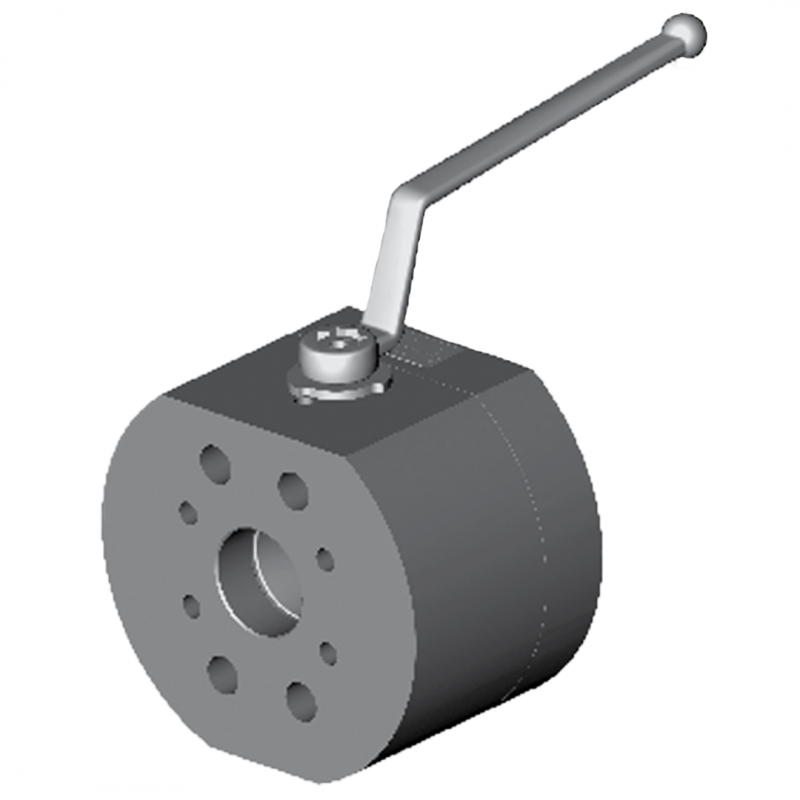

Hydac SAE Fixed Flange 2-Way Ball Valves Type KHF3/6
The HYDAC KHF3/6 is a high-pressure 2-way ball valve with fixed SAE flange connections, designed for demanding hydraulic applications up to 420 bar. Featuring a floating ball with outlet-side sealing, it delivers full-flow performance in a compact, easy-to-operate design, ideal for space-limited installations.
Key Features:
- Floating ball design with outlet-side sealing for reliable shut-off
- Fixed SAE flange connection for robust, secure mounting
- Visual switching indication and mechanical stops for safe, precise control
Description
Downloads
HYDAC SAE Fixed Flange 2-Way Ball Valves Type KHF3/6
- PN up to 420
- DN up to 80
- Ambient temperature: -10 °C to +80 °C
- Nominal pressure: 420 bar
- Operating fluids: Mineral oil to DIN 51524 part 1 and part 2
(other fluids on request) - Temperature of operating fluid: -10 °C to +80 °C
- Seal kits available on request
Advantages:
- Visual indication of the switching position by means of a slot on the control spindle
- Switching limited by means of stop pin and stop disc
- No glands, therefore no manual re-adjustment of seals required
- Sealing principle with floating ball, sealing on the outlet side
- Full flow passage for unrestricted flow of medium
- Compact design
- Easy operation
Areas of application are for example:
- Pipeline construction
- Machine tools
- System engineering
- Off-shore sector
