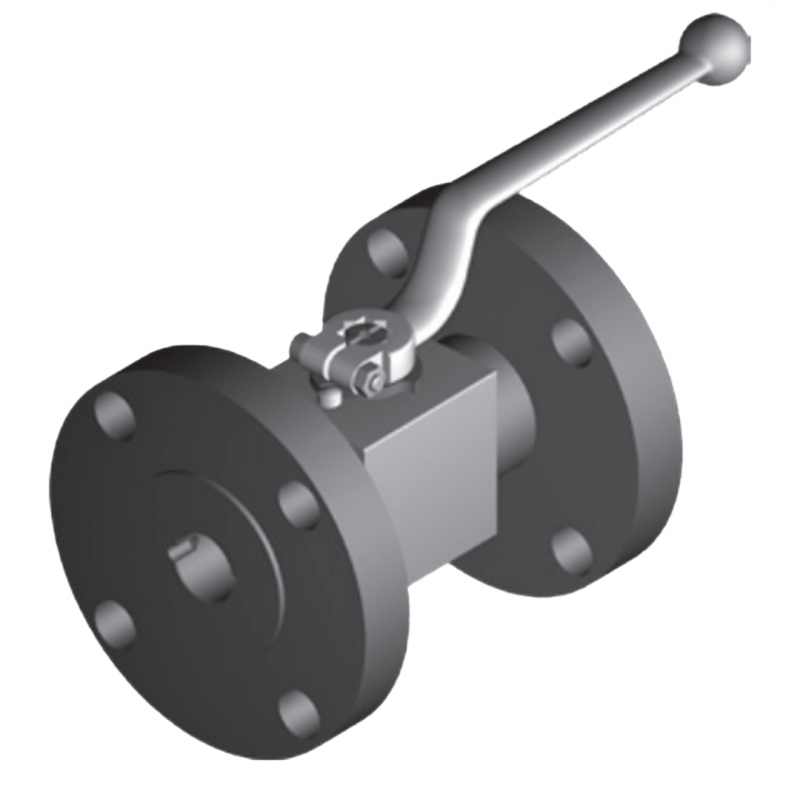

Hydac ANSI Flange 2-Way Ball Valves KHBF and KHMF
Designed to meet ANSI standards, HYDAC’s KHBF (block type) and KHMF (sleeve type) 2-way ball valves offer high-performance flow control for systems with pressures up to PN 337. With rotating ANSI flanges (Class 150–2500) and ASME B16.10 face-to-face lengths, these valves deliver reliable shut-off in demanding industrial environments.
Key Features:
- ANSI-compliant rotating flanges (ASME B16.5) for flexible alignment
- Full bore design with reliable shut-off at high pressures
- Optional accessories: actuators, limit controls, and locks for automation
Description
Downloads
HYDAC ANSI Flange 2-Way Ball Valves KHBF & KHMF
- ANSI class 150 - 2500
- DN 16 - 50
- Length: ASME / ANSI - B16.10
- Flange dimensions: ASME / ANSI - B16.5
- Flange connections: Rotating flanges
- Mounting position: Optional
- Ambient temperature: -10 °C to +80 °C
- Nominal pressure: up to PN 337 (see pressure range)
- Operating fluids: Mineral oil to DIN 51524 Part 1 and Part 2 (other fluids on request)
- Temperature of operating fluid: -10 °C to +80 °C
Accessories:
- Actuator
- Limit controls
- Lock
Seal kits available on request
