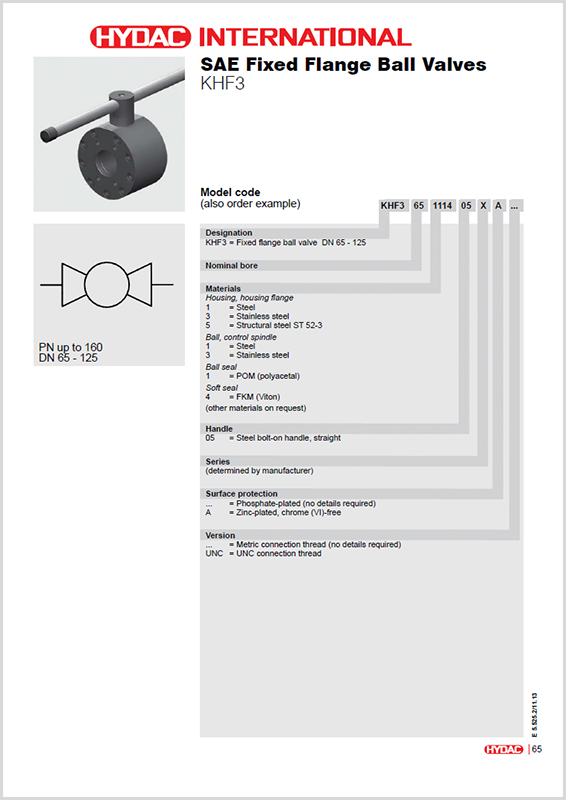

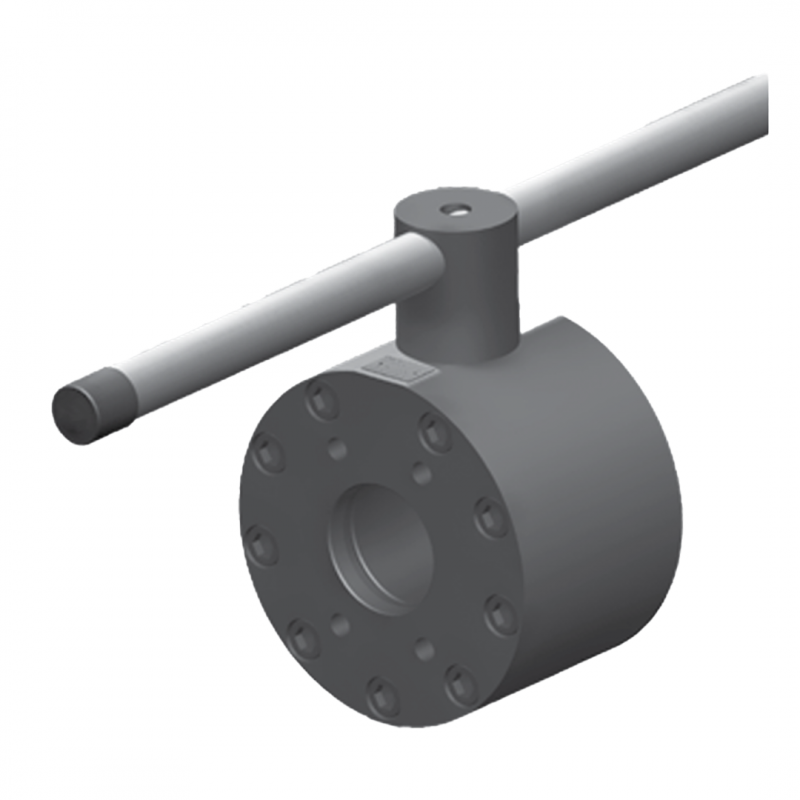

Hydac SAE Fixed Flange 2-Way Ball Valves KHF3
The HYDAC KHF3 is a robust 2-way ball valve with fixed SAE flange connections, designed for medium-pressure applications up to PN 160. With a durable construction and full-flow design, it provides reliable shut-off for a wide range of hydraulic systems using mineral oil or other compatible fluids.
Key Features:
- Fixed SAE flange connection for secure and stable installation
- Full-flow passage for minimal pressure loss and efficient operation
- Compatible with actuator, limit switch, and lock for added control and safety
Description
Downloads
HYDAC SAE Fixed Flange 2-Way Ball Valves KHF3
- PN up to 160
- DN 65 - 125
- Mounting position: Optional
- Ambient temperature: -10 °C to +80 °C
- Operating fluids: Mineral oil to DIN 51524 Part 1 and Part 2
(other fluids on request) - Temperature of operating fluid: -10 °C to +80 °C
Seal kits available on request
Accessories:
- Actuator
- Limit switch
- Lock
